Return Filter MPF 30 max. flow rate 40 l/min - thread G ½"

G ½" MPF 30 max. flow rate 40 l/min

Return Filter MPF 30 max. flow rate 40 l/min - thread G ½"

The MPF return filter series are for tank top mounting in hydraulic and
lubricating oil circuits
Filter head: aluminium, port size G ½",
cover: Zytel, bowl: Nylon, NBR seals
Housings compatible with mineral oils to ISO 2943, aqueous emulsions,
synthetic fluids, water and glycol
Element material: resin impregnated paper media (P), inorganic microfiber (A)
or wire mesh (M)
Elements with NBR seal are compatible with mineral oils to ISO 2943, aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU fluids,
water and glycol (elements of W-series on enquiry)
Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
Working pressure max. 8 bar - working temperature -25°C - +110°C
MPF030
category_280930.jpg?time=1533651869
MPF030 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
HY 18408 A 03 7 NBR 1,75 ± 10%

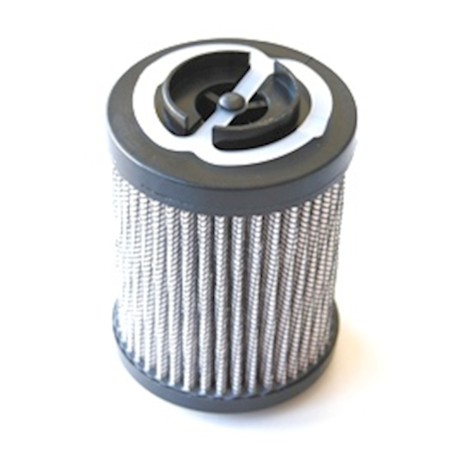

HY 18409 A 06 10 NBR 1,75 ± 10%
HY 18410 A 10 20 NBR 1,75 ± 10%

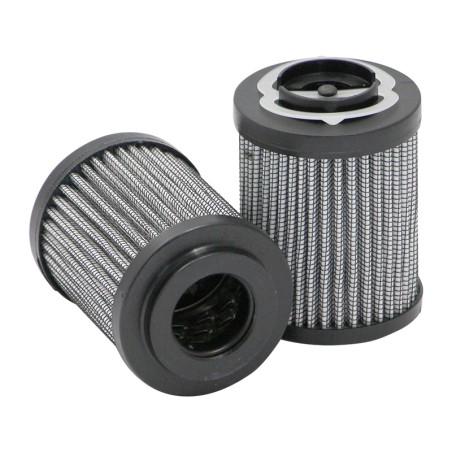

HY 18411 A 25 37 NBR 1,75 ± 10%
HY 18414 M 25 40 NBR 1,75 ± 10%
HY 18415 M 60 40 NBR 1,75 ± 10%
HY 18416 M 90 40 NBR 1,75 ± 10%
HY 18412 P 10 38 NBR 1,75 ± 10%
HY 18413 P 25 39 NBR 1,75 ± 10%
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar
