UM 45/UMP 45/UMPC 45 - Oil Service Units

With UM 45/UMP 45/UMPC 45 hydraulic and lubrication systems can be filled, cleaned or fluid can be pumped over without using the filter function.
UM 45/UMP 45/UMPC 45 are delivered equipped with hoses
UMP 45 is equipped with adapters for PODS Pro
UMPC 45 with integrated particle monitor to supervise oil cleanliness during the filtering process
The filter element can be removed from the housing together with the cover
On the bottom of the from inside to outside flown through filter element there is a dirt retention valve. The dirt retention valve ensures that solid particle sediment is completely removed with the filter element and eliminates the need for flushing the filter housing
Longer service intervals und higher machine availability

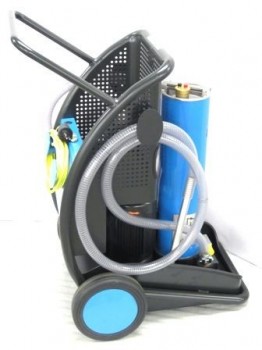

UM 45/UMP 45/UMPC 45
category_280853.jpg?time=1535109400
Hydraulic fluids Mineral oil and biodegradable fluids (other fluids on request)
Temperature range of fluids 0°C - +60°C
Hydraulic connection Suction hose NG 32, 2.7 m long with lance, with strainer 280µm; pressure hose NG 25, 2.7 m long with lance
Ambient temperature range 0°C - +50°C
Tank capacity approx. 13 l


Operating position upright
Pump design Internal gear pump
Suction height maximal 2.0 m
Clogging indicator optical


UM(P) 45-1553 UM(P) 45-4553 UM(P) 45-1153
Nominal flow rate 45 l/min* 45 l/min* 45 l/min*
Filter fineness 3EN2 ß3(C)=200 3EN2 ß3(C)=200 5EN2 ß5(C)=200
Dirt capacity Mi at Q 1950 g 1950 g 1980 g
Operating voltage 1 ~ 230 V 3 ~ 400 V 50 Hz
3 ~ 460 V 60 Hz		 1 ~ 230 V
Operating frequency max. 50/60 Hz 50/60 HZ 50/60 Hz
Motor power 1,1 kW* 1,1 kW* 1,1 kW*
Viscosity continuous operation min. 15 mm²/s 15 mm²/s 15 mm²/s
Viscosity continuous operation max. 600 mm²/s 600 mm²/s 600 mm²/s
Viscosity short-term operation max. 800 mm²/s 800 mm²/s 800 mm²/s
Operating pressure max. 7 bar 7 bar 7 bar
Weight 76,5 kg (84 kg**) 76,5 kg (84 kg**) 76,5 kg (84 kg**)
Replacement element V 7.1560-103 V 7.1560-103 V 7.1560-03
*Indications at 50 Hz. **Weight without PODS Pro





UMPC 45-15535 UMPC 45-45535
Interface RS 232 RS 232
Data volume 500 measurements 500 measurements
Nominal flow rate 45 l/min* 45 l/min*
Filter fineness 3EN2 ß3(C)=200 3EN2 ß3(C)=200
Dirt capacity Mi at Q 1950 g 1950 g
Operating voltage 1 ~ 230 V 3 ~ 400 V 50 Hz
3 ~ 460 V 60 Hz
Operating frequency max. 50/60 Hz 50/60 HZ
Motor power 1,1 kW* 1,1 kW*
Viscosity continuous operation min. 15 mm²/s 15 mm²/s
Viscosity continuous operation max. 600 mm²/s*** 600 mm²/s***
Viscosity short-term operation max. 800 mm²/s 800 mm²/s
Weight 97 kg 97 kg
Replacement element V 7.1560-103 V 7.1560-103
*Indications at 50 Hz. ***the exact determination of the cleanliness class is possible within a viscosity range of 15 mm²/s to 250 mm²/s.
