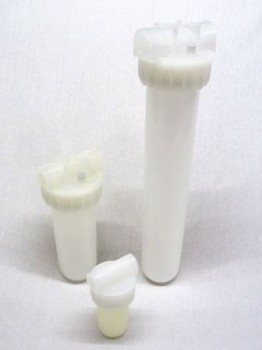

WF/PP 1 housing operating pressure: 5 bar - flow rate: 2000-8000 l/h
11 products
WF/PP 1 housing operating pressure: 5 bar - flow rate: 2000-8000 l/h
Uses:
Water treatment
Electroplating
Resin
Paint
Chemicals and pharmaceuticals industry
Food and beverages
Photographic industry
Product properties:
Dimensions:
The complete spare parts and accessories list can be found on the data sheet "WF/PP 1 housing: Spare parts and accessories".
Filter cartridges for 5"Mignon housings are available in the following series:
Depth filtration: PO / polypropylene,
Surface filtration: N / nylon, P / paper,
Inox version: M / Solinox RA, MX / Retinox
Filter cartridges for 10" and 20" housings are available in all series.
| Filter head | Polypropylene |
| Thread material | Polypropylene |
| Filter bowl | Polypropylene |
| Bowl union nut | Polypropylene |
| Seal - filter bowl | NBR |
| Maximum temperature resistance (°C) | 30°C |
| Maximum operating pressure (bar) | 5 bar |
Dimensions:
| Size | Capacity (l/h) | Width (Thr.-Thr.) (mm) | Height (filter head - bowl base) (mm) | Thread in inches (BSP) | Element series, see |
| 5"Mignon | 2000 l/h | 90 mm | 175 mm | G½" | SW 5/… |
| 10" | 6000 l/h | 132 mm | 313 mm | G¾", G1" | SW 10/… |
| 20" | 8000 l/h | 132 mm | 571 mm | G¾", G1" | SW 20/… |
The complete spare parts and accessories list can be found on the data sheet "WF/PP 1 housing: Spare parts and accessories".
Filter cartridges for 5"Mignon housings are available in the following series:
Depth filtration: PO / polypropylene,
Surface filtration: N / nylon, P / paper,
Inox version: M / Solinox RA, MX / Retinox
Filter cartridges for 10" and 20" housings are available in all series.
