G 1" Hydraulic Suction Strainers

For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypass

Suction Strainer G 1" (Size B)

Suction Strainer G 1 1/4" Hydraulic Suction Strainers G 1 1/4"

SF Article Length
L1
(mm)
Length
L2
(mm)
Diameter D (mm) Size K (mm) Fineness (µm) Material Mesh Material Thread Material Base Valve (bar)/ Magnet Volume flow* (l/min)
HY 90310 85 72 82 41 150 Wire Electro- galvanized - 91
HY 15807 87 66 87 41 100 V2A galvanized galvanized - 60
HY 11555 95 76 78 55 130 V2A Plastic galvanized - 100
HY 12131 97 83 95 46 30 Cellulose Aluminium Steel - 20
HY 12132 97 83 95 46 60 Wire Aluminium Steel - 43
HY 12130 97 83 95 46 90 Wire Aluminium Steel - 43
HY 12133 97 83 95 46 250 Wire Aluminium Steel - 43

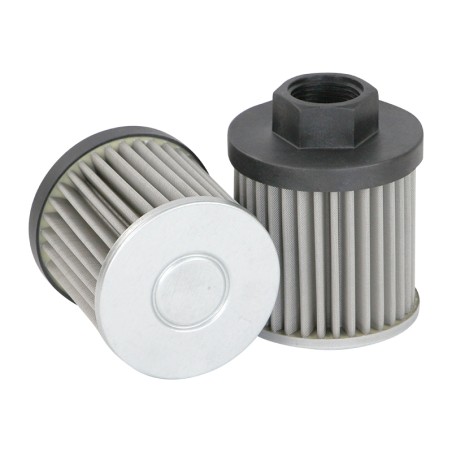

HY 15744 108 87 87 41 100 V2A PA6GF30 galvanized - 80
HY 15744-
V4A
108 87 86 41 100 V4A V4A V4A - 80
HY 17098 111 96 86 65 125 V2A Nylon galvanized - 50
HY 18566 114 94 94 51 125 Wire Plastic galvanized - 47
HY 90528 120 109 70 41 125 Wire Nylon Nylon - 50
HY 10276 133 117 70 41 100 V2A Steel Steel - 60
HY 10279 133 117 70 41 100 V2A Steel Steel 0,3 60

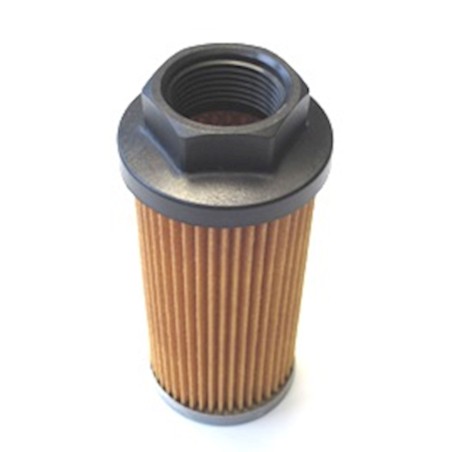

HY 9308 140 122 64 42 25 Cellulose Plastic galvanized - 30
HY 18565 140 126 65 42 125 Wire Plastic galvanized - 43
HY 9232 140 126 85 41 105 Wire Aluminium galvanized - 80

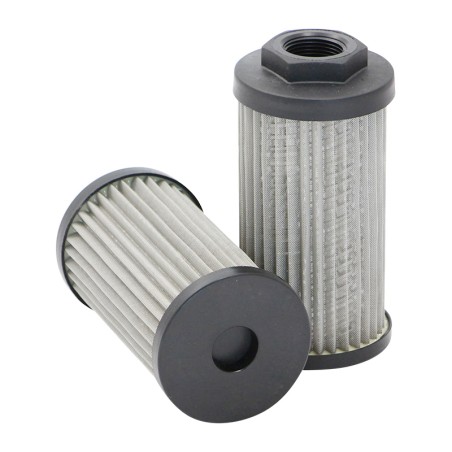

HY 18598 140 128 70 41 60 Wire Nylon Nylon - 50
HY 18599 140 128 70 41 90 Wire Nylon Nylon - 50

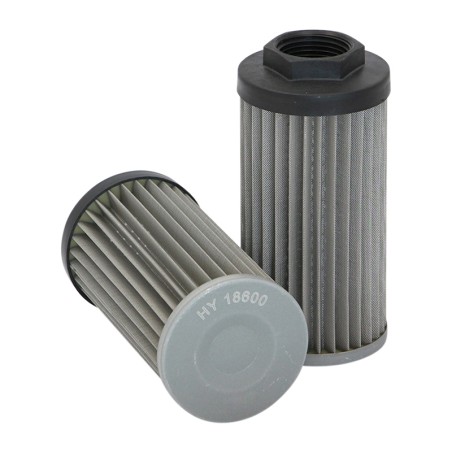

HY 18600 140 128 70 41 250 Wire Nylon Nylon - 50
HY 18565-
BYP
141 124 64 54 125 V2A Nylon galvanized 0,17 50
HY 12135 142 131 75 46 30 Cellulose Aluminium Steel - 25
HY 12136 142

132

75 46 60 Wire Aluminium Steel - 45
HY 12134 142 133 70 46 90 Wire galvanized galvanized - 45
HY 18510 145 114 99 42 60 Wire Aluminium verzint - 50
HY 18511 145 114 99 42 90 Wire Aluminium galvanized - 50

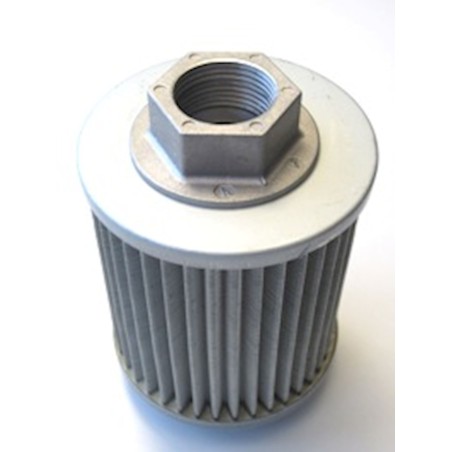

HY 18513 145 114 99 42 250 Wire Aluminiu galvanized - 50
HY 18598-
BYP
146 129 70 41 60 Wire Nylon Nylon 0,3 50
HY 18599-
BYP
146 129 70 41 90 Wire Nylon Nylon 0,3 50
HY 18512-
MAGNET
148 114 99 42 90 Wire Aluminium galvanized Magnet 50
HY 18513-
MAGNET
148 114 99 42 250 Wire Aluminium galvanized Magnet 50
HY 15749 152 132 87 41 100 V2A PA6GF30 galvanized - 120

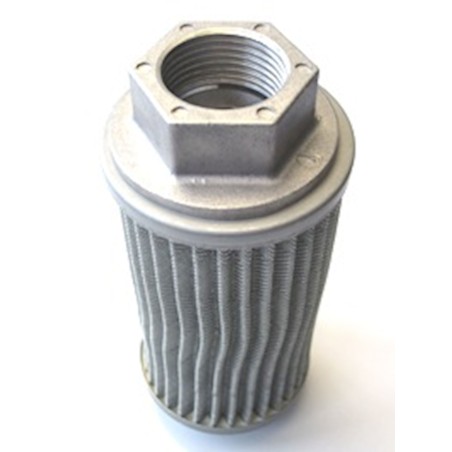

HY 18507 159 129 70 42 60 Wire Aluminium galvanized - 50
HY 18508 159 125 70 42 90 Wire Aluminium galvanized - 50
HY 18509 159 125 70 42 250 Wire Aluminium galvanized - 50
HY 13276 159 142 63 46 125 Wire Polyamide Polyamide - 50
HY 13276-
BYP
177 142 63 46 125 Wire Polyamide Polyamide 0,2 50
HY 90138 180 172 75 46 90 Wire Aluminium galvanized - 90
HY 9139
198 186 70 46 10 Cellulose Nylon galvanized - 30
HY 9111 320 300 70 41 40 Wire Steel Steel - 40
HY 13280 322 305 65 42 25 Microfiber Plastic galvanized - 20
For other sizes please enquire
