Multiple filter housings + spare parts/accessories

Subcategories

•

  WF 14 - Housing: 4-way...

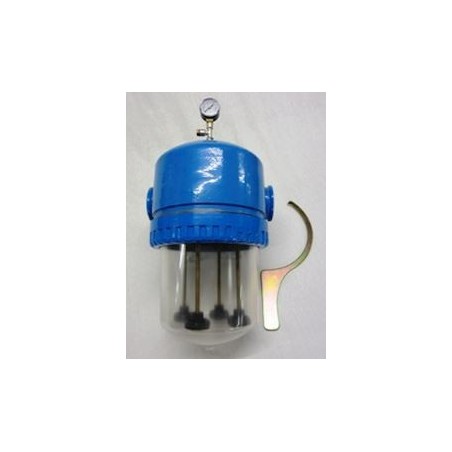

  WF 14 - Housing: 4-way filter housing Operating pressure: 10 bar - Flow rate: 12,000-18,000 l / h + spare parts

  applications:



  Water treatment
  Chemical and pharmaceutical industry
  Electroplating
  Surface technology
  Food and beverages
  Paint and varnish
  Photo industry

  Product features:



  filter head	Brass
  thread material	Brass
  filter container	Polycarbonate (TP)
  Nut	Brass
  Seal - filter container	NBR
  maximum temperature resistance (° C)	60 ° C
  maximum operating pressure (bar)	10 bar
  delivery	Pressure gauge, connection tee and release key for union nut



  Dimensions:



  Constructed	Power (l / h)	Width  (Wt.)  ( Mm )	Height (filter head container bottom) (mm)	Thread  in inches  (BSP)	Element series see
  10 "	12000 l / h	252 mm	370 mm	G2 "	4x SW 10 / ...
  20 "	18000 l / h	252 mm	673 mm	G2 "	4x SW 20 / ...



  Spare Parts:



  Spare parts and accessories	reference
  drain cock	not available
  wall mount	not available
  manometer	WF-14 / MANOMETERS
  Container for 10 "-housing	WF 14-10 / TANK
  Container for 20 "-housing	WF 14-20 / TANK
  O-ring for 10 "and 20" containers (Buna NBR)	DG-WF14 / SEAL



  Filter cartridges for 10 "and 20" housings are available in all series.


•

  WF 18 housing...

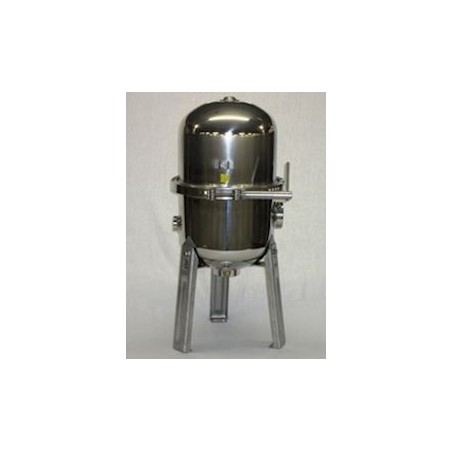

  WF 18 housing operating pressure: 10 bar - flow rate: 18000 - 80000 l/h + spare parts and accessories

  Uses:



  Water treatment
  Chemicals and pharmaceuticals industry
  Electroplating
  Surface technology
  Food and beverages
  Paint and varnish



  Product properties:



  Filter head	Inox (304/316)
  Thread material	Inox (304/316)
  Filter bowl	Inox (304/316)
  Clamping ring with threaded closure	Inox (304/316)
  Seal - filter bowl	NBR
  Maximum temperature resistance (°C)	90°C
  Maximum operating pressure (bar)	10 bar
  Scope of delivery	Housing with 2 earthing connections, 3-part housing base frame included



  Dimensions:



  Size	Capacity (l/h)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Thread in inches (BSP)	Element series, see
  7 x 10"	18000 l/h	320	640	340	177	310	420	G2"	7x SW 10/…
  7 x 20"	24000 l/h	320	880	340	177	310	420	G2"	7x SW 20/…
  7 x 30"	30000 l/h	320	1140	340	177	310	420	G2"	7x SW 30/…
  12 x 10"	35000 l/h	365	706	435	175	350	570	G3"	12x SW 10/…
  12 x 20"	42000 l/h	365	956	435	175	350	570	G3"	12x SW 20/…

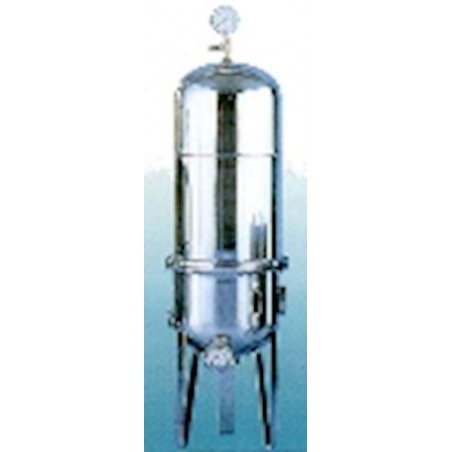

  18 x 40"	80000 l/h	445	1600	724	300	520	970	DN100	18x SW 40/…



  Other sizes on request.

  Spare parts and accessories:



  Spare parts and accessories	Reference number
  Manometer	WF-14/MANOMETER
  O-ring for bowl (Buna NBR)	on request
  O-ring for bowl (Viton)	on request



  Filter cartridges for 10" and 20" housings are available in all series.

  Filter cartridges for 30" housings are available in the following series:
  Depth filtration: Every series
  Surface filtration: PL / polyester
  Inox version: M / Solinox
  Active carbon: AKPO / active carbon
  Absolute filtration, microfiltration and steam and gas filtration: Every series

  Filter cartridges for 40" housings are available in the following series:
  Depth filtration: Every series with the exception of FIB / fibrillated
  Absolute filtration, microfiltration and steam and gas filtration: Every series
