OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

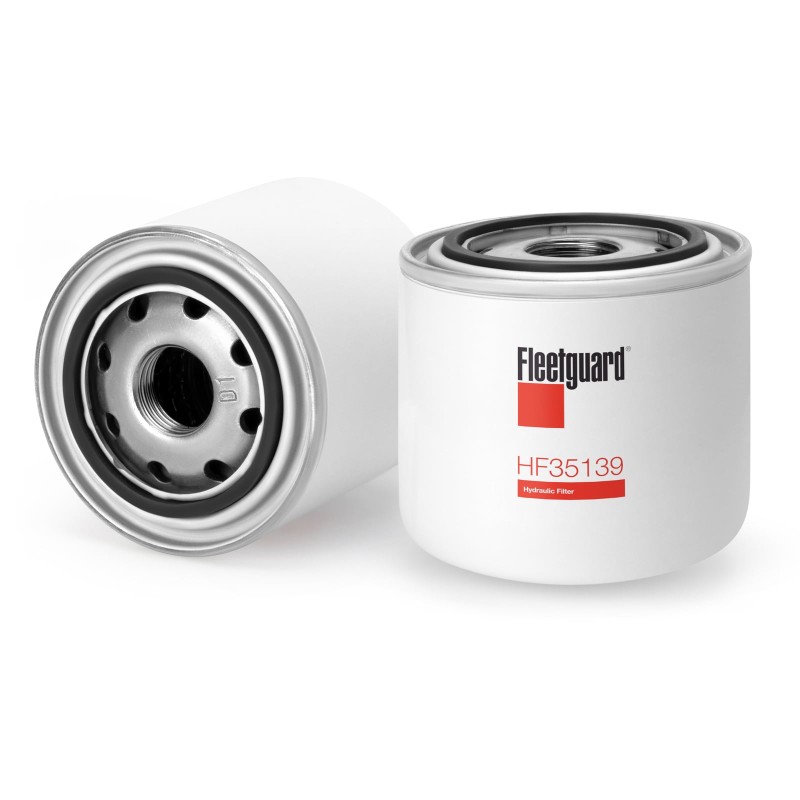

Fleetguard HF35139 Hydraulic Filter Spin-On
£14.72
VAT excluded
Average lead time 7-10 days
Description
Fleetguard® HF35139 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Specifications
file_downloadDatasheet
Length
3.64 inch / 92.50 mm
Country of Origin
France
Media Type
Cellulose
Gasket OD
2.76 inch / 70.00 mm
Taric Code
84212980
Thread Size
1-12 UNF-2B
Largest OD
3.68 inch / 93.50 mm
Gasket Inside Diameter
2.44 inch / 62.00 mm
Seam OD
3.68 in / 93.50 mm
Standpipe
NO
Pressure Valve
Yes
Length / Overall Height
3.64 inch / 92.40 mm
Particle Size at Beta 75
50.00 micron (c)
BPV OPENING DP
17.40 PSI / 120.00 kPa
Particle Size at Beta 200
0.00 micron (c)
TWA MICRON @ BETA=20
55.00 micron
TWA MICRON @ BETA=2
33.00 micron
TWA MICRON @ BETA=75
65.00 micron
Available in these brands
Cross References
FLEETGUARD
HF35139
GROVE
1003203
JCB
58118063
581M8563
581M8565
MANITOU
3174753
TEREX / TEREX ADVANCE
15861402
THWAITES
T51631
TRP DAF
1535358
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Fleetguard® HF35139 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
