OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

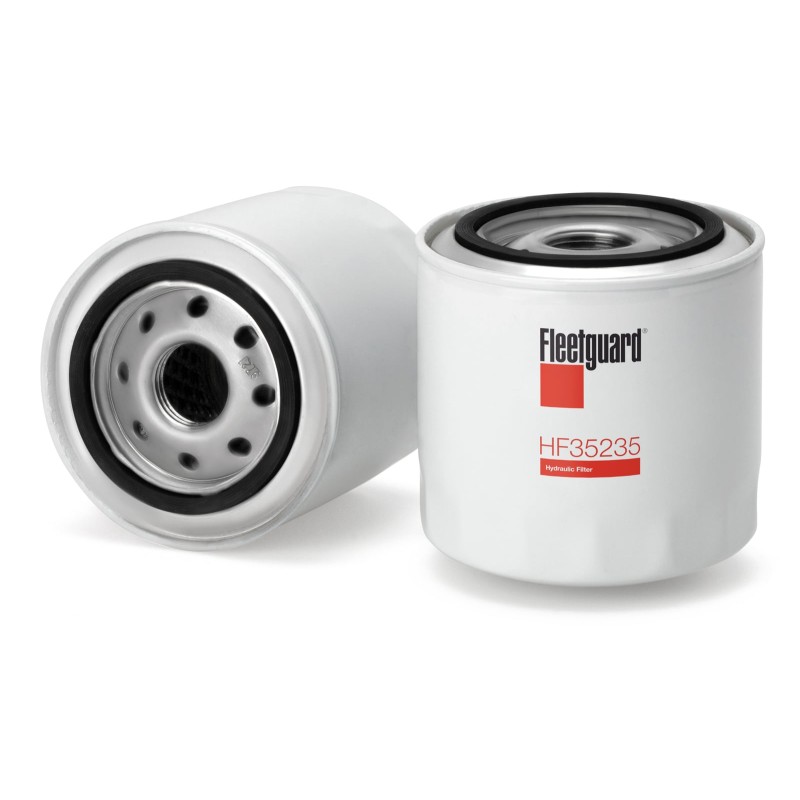

Fleetguard HF35235 Hydraulic Filter Spin-On
£15.76
VAT excluded
Average lead time 7-10 days
Description
Fleetguard® HF35235 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Specifications
file_downloadDatasheet
Length
3.84 inch / 97.59 mm
Country of Origin
Mexico
Gasket OD
2.83 inch / 71.98 mm
Taric Code
84212980
Thread Size
1-12 UNF-2B
Largest OD
3.67 inch / 93.17 mm
Gasket Inside Diameter
2.46 inch / 62.53 mm
Seam OD
3.70 in / 93.88 mm
Standpipe
NO
Pressure Valve
Yes
Length / Overall Height
3.84 inch / 97.58 mm
Particle Size at Beta 75
0.00 micron (c)
BPV OPENING DP
4.80 PSI / 33.10 kPa
Particle Size at Beta 200
0.00 micron (c)
TWA MICRON @ BETA=20
50.00 micron
TWA MICRON @ BETA=2
33.00 micron
Available in these brands
Cross References
FLEETGUARD
HF35235
ITEC
58118062
THWAITES
T52450
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Fleetguard® HF35235 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
