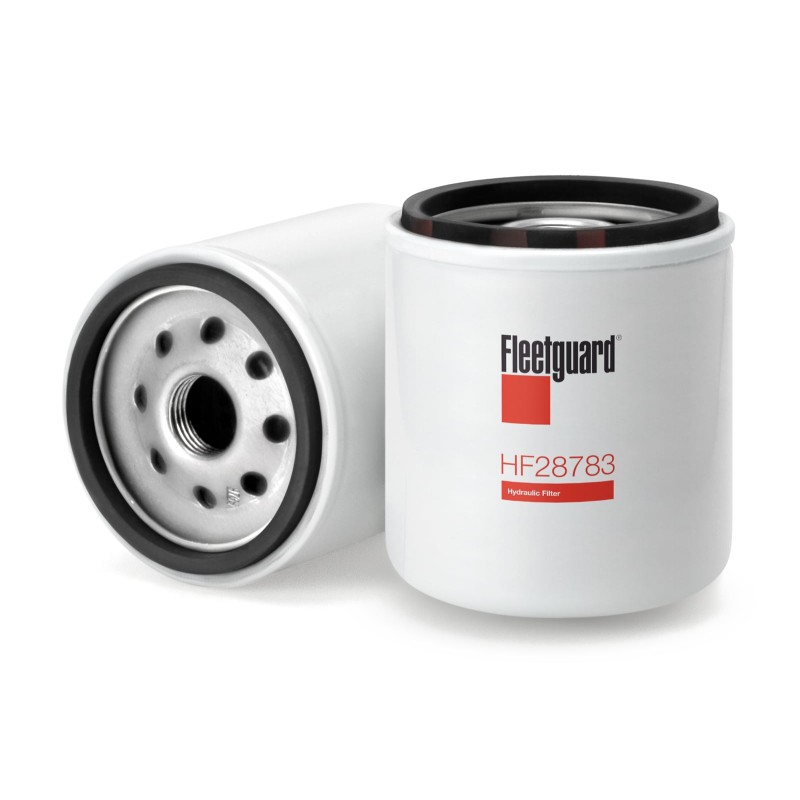

Fleetguard HF28783 Hydraulic Filter Spin-On
£14.21
VAT excluded
Average lead time 7-10 days
Description
Fleetguard® HF28783 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Specifications
file_downloadDatasheet
Length
3.50 inch / 88.90 mm
Country of Origin
Mexico
Gasket OD
2.75 inch / 69.97 mm
Taric Code
84212980
Thread Size
3/4-16 UNF-2B
Largest OD
3.02 inch / 76.71 mm
Gasket Inside Diameter
2.46 inch / 62.53 mm
Seam OD
3.02 in / 76.68 mm
Standpipe
NO
Pressure Valve
Yes
Length / Overall Height
3.50 inch / 88.96 mm
Particle Size at Beta 75
35.00 micron (c)
BPV OPENING DP
29.01 PSI / 200.00 kPa
Particle Size at Beta 200
40.00 micron (c)
TWA MICRON @ BETA=20
41.00 micron
TWA MICRON @ BETA=2
26.00 micron
Available in these brands
Cross References
CASE IH
ND137978
DENSO
1150105350
3267012620
FLEETGUARD
HF28783
FORD
SBA140517020
KOMATSU
AS150002300
AS150002300L
MACK
5839LF16011
NEW HOLLAND
ND137978
RAPID PARTS
A000006307
A000013184
TOYOTA
326701000000
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Fleetguard® HF28783 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
