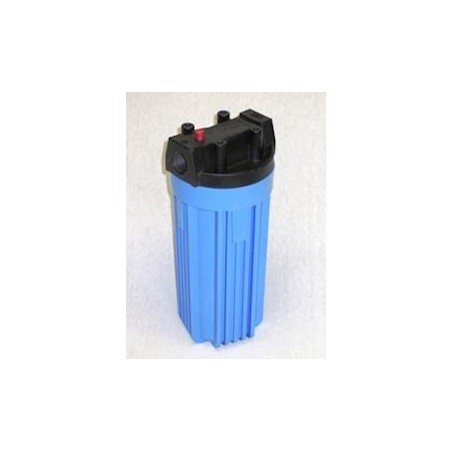

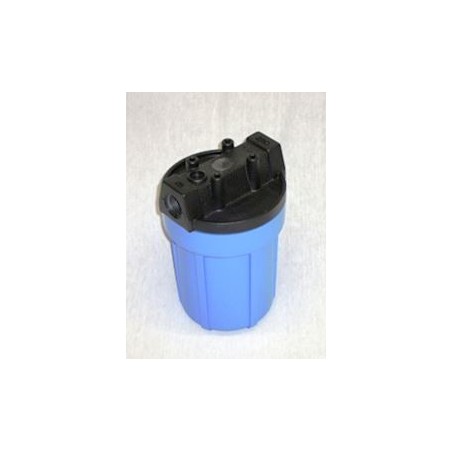

WF 7 housing operating pressure: 10 bar - flow rate: 2000-8000 l/h

Uses:

Water treatment
Electroplating
Resin
Paint
Chemicals and pharmaceuticals industry
Food and beverages
Photographic industry
Product properties:
Filter head
Polypropylene
Thread material
Polypropylene
Filter bowl
Polypropylene
Seal - filter bowl
NBR
Maximum temperature resistance (°C)
50°C
Maximum operating pressure (bar)
10 bar

Dimensions:
Size
Capacity (l/h)
Width
(Thr.-Thr.)
(mm)
Height (filter head - bowl base) (mm)
Thread
in inches
(BSP)
Element series, see
5“
2000 l/h
130 mm
180 mm
G⅜“, G½“
SW 5/…-D70
10“
6000 l/h
130 mm
315 mm
G½“, G¾“
SW 10/…
20“
8000 l/h
130 mm
540 mm
G¾“
SW 20/…

The complete spare parts and accessories list can be found on the data sheet "WF 7 housing: Spare parts and accessories".
Filter cartridges for 5" standard housings (-D70) are available in the following series:
Depth filtration: BA / cotton, PO / polypropylene,
Surface filtration: N / Nylon,
Inox version: M / Solinox RA, MX / Retinox
Active carbon: AKPO / active carbon
Filter cartridges for 10" and 20" housings are available in all series.

Housing size and thread (BSP) in inches - capacity in l/h
Please note: The housings contain no filter cartridges
Polypropylene water filter housing WF7
