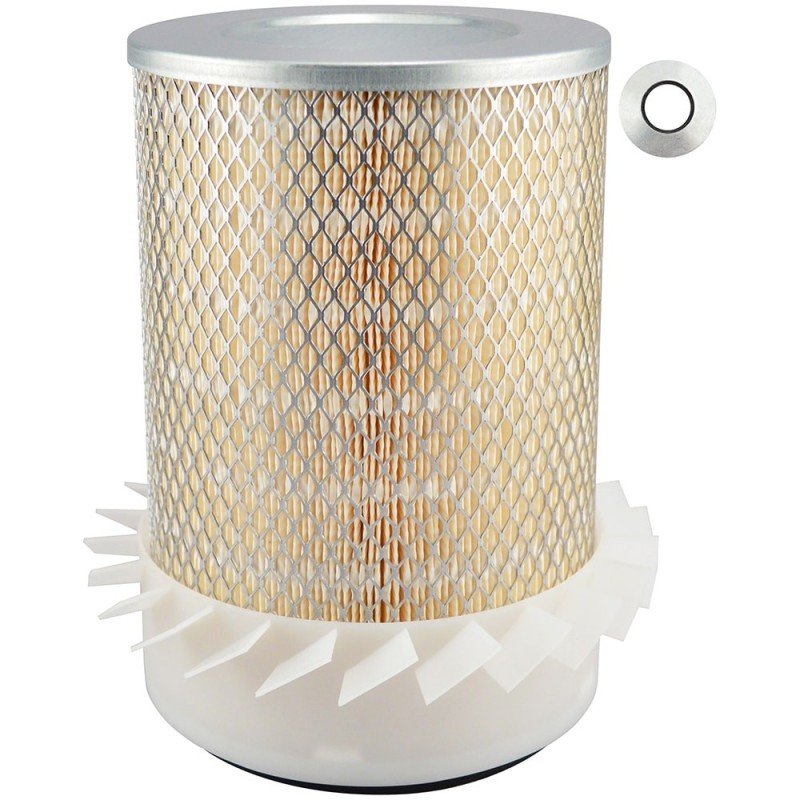

Baldwin PA1794-FN, Outer Air Filter Element with Fins
£48.41
VAT excluded
Delivered within 1-2 Days
Description
The Baldwin PA1794-FN is an air filter, 266.7 mm long and 223.8 mm in diameter. It traps dust and debris before they reach the engine, protecting it from premature wear. It commonly replaces Acdelco A525C, Air REFINER ARM105054, Air REFINER ARM711, Air REFINER ARM711K, Alco MD7406K and 119 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
266.7 mm (10.5 inch)
Overall Diameter
173.8 mm (6.84 inch)
Internal Diameter
16.7 mm (0.66 inch)
Product Type
Outer Air Element with Fins
Outside Diameter
6 27/32 (173.8) Fins 8 13/16 (223.8)
Inside Diameter
21/32 (16.7) & 4 5/32 (105.6)
Gasket
Attached Gasket: [1] Attached; Furnished Gasket: G103-N
Application
John Deere Equipment
Compatible Competitor Part Number
John Deere AR39799
For Use With

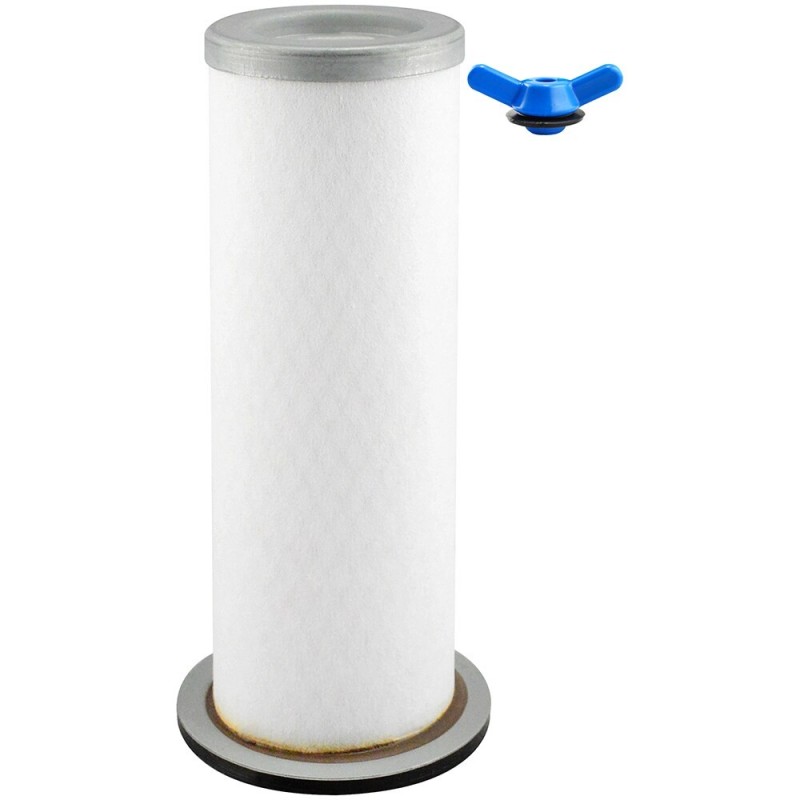

PA1921, PA2622
Available in these brands
Cross References
ACDELCO
A525C
AIR REFINER
ARM105054
ARM711
ARM711K
ALCO
MD7406K
AMERICAN PARTS
341
93540
985
AP FILTERS
AP3007K
AP3502
AP3502A
APLOCKHEED
LK3502
BALDWIN
PA1794FN
BOWES
LAF5054A
CANADIAN FILTER CO
CFM208F
CARQUEST
87540
CATERPILLAR
3I0231
9Y6818
CHAMPION LABORATORIES
AF5054A
CLEAN FILTERS
MA556
COOP
AP105054K
PMA105054K
COOPERS
AEK2030
DELUXE
AF706
AFK706
K706
K706AIR
DIGOEMA
DGM01372K
DONALDSON
E500746
FHG090070
FHG090072
FHG090074
FHG090075
FWA093303
FWA093304
P105054
P105454
P114748
P117478
P118678
P129513
P130763
P142115
P184170
P771006
P771562
SMP771562
EUROFILTER
3211
FIAAM
FLI6601
FILT
A2516AL
FLEETGUARD
AF945K
FLEETRITE
AFR8945K
FRAM
CA508
CAK508
GENERAL MOTORS CORP
6488338
GONHER
GA99
GAK99
GPC
FC254K
GRAINGER
4ZUG7
GUARDIAN FILTER CO
G130763
GUD
ADG617
HASTINGS PREMIUM FILTERS
AF154K
HEAVY DUTY AIR
A0763
A21151
HDA21151
HDA763
HIFI
SA10895K
JOHN DEERE
12X20856A
12X20956A
AL19916
AL19918
AL25158
AL27157
AL27158
AR39540
AR39797
AR39799
AR46183
AT25212
AT30811
AT33359
AT33363
AT38481
KRALINATOR
LA208F
LB FILTER
A732
LUBERFINER
LAF5054
LAF5054B
LAF5454A
MANN HUMMEL
C18288
MANN-FILTER
4528855104
MOTORCRAFT
FA150
NAPA GOLD
2540
NATIONAL STOCK NUMBER
2940001279440
NELSON
84686S
NELSONWINSLOW
130763
NUTECH
N1010
PBR
AI327008
PERRY
PA706
PAK706
PRO FILTERS
DA1254K
PUROLATOR
A42051
AF2051
AF2051K
QIF AIR
ACA508
QUAKER STATE
QSAK508
RYCO
HDA5306
SAVARA
92311111
92311117
SAVARA OLD
923697
SF
SL8883
TECNOCAR
A594
TRUAIR
TA7402
TA7402B
UFI FILTERS
2798300
UNITED AIR CLEANER
U05054
UNITED ENGINE LIFE
U05054K
VAPORMATIC
VPD7029
VIRGIS
CH12275
WESTERN TOOL CO
WA2176K
WGB
SA229
SA229A
SA471
WISMET
WAI10261
WIX
42540
WOODGATE
WGA372K
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| JOHN DEERE | 2000-Series | 2840 | n/a | n/a | n/a | View |
| JOHN DEERE | 3000-Series | 3030 | n/a | View | ||
| JOHN DEERE | 3000-Series | 3120 | J.D. 6329D | n/a | n/a | View |
| JOHN DEERE | 3000-Series | 3130 | John Deere 6329D | n/a | n/a | View |
| JOHN DEERE | 4000-Series | 4020 | n/a | n/a | n/a | View |
| JOHN DEERE | 7000-Series | 7610 | n/a | n/a | n/a | View |
| JOHN DEERE | 7000-Series | 7620 | n/a | n/a | n/a | View |
| JOHN DEERE | 7000-Series | 7640 | n/a | n/a | n/a | View |
| JOHN DEERE | 800-Series | 830 | John Deere 3164D | n/a | n/a | View |
