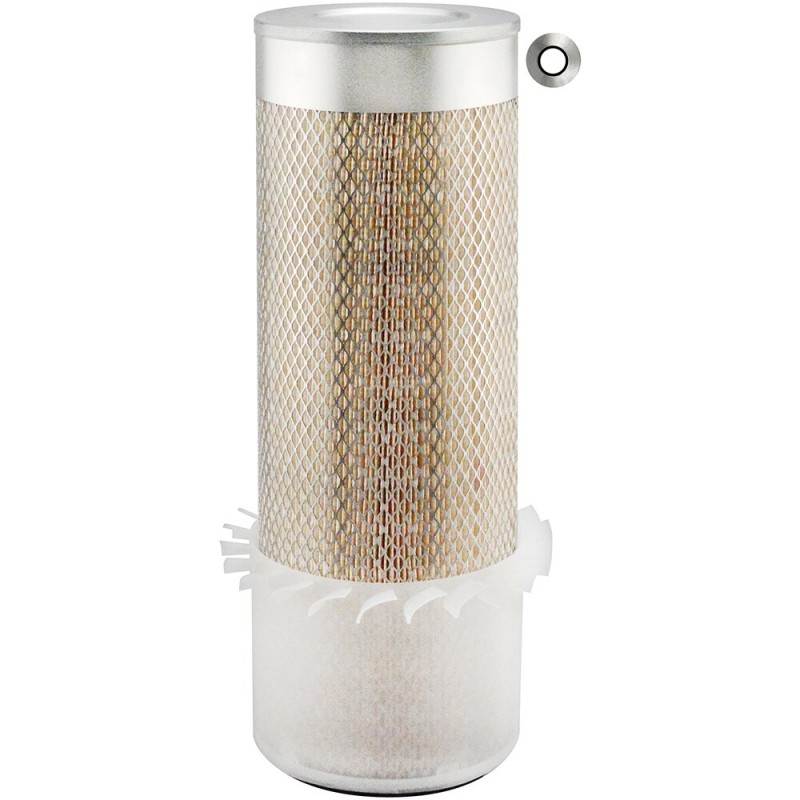

Baldwin PA3630-FN, Outer Air Filter Element with Fins
£63.21
VAT excluded
Average lead time 7-10 days
Description
The Baldwin PA3630-FN is an air filter, 520.7 mm long and 222.3 mm in diameter. It traps dust and debris before they reach the engine, protecting it from premature wear. It commonly replaces Baldwin PA3630, Big A FILTER 94779, Carquest 88779, Digoema DGML255S5, Donaldson P533233 and 12 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
520.7 mm (20.5 inch)
Overall Diameter
174.6 mm (6.87 inch)
Internal Diameter
16.7 mm (0.66 inch)
Product Type
Outer Air Element with Fins
Outside Diameter
6 7/8 (174.6) Fins 8 3/4 (222.3)
Inside Diameter
21/32 (16.7) & 4 3/16 (106.4)
Gasket
Attached Gasket: [1] Attached; Furnished Gasket: G103-N
Application
Kobelco, MDI/Yutani Equipment
Compatible Competitor Part Number
Kobelco 2446R255-S5
For Use With
PA3631
Available in these brands
Cross References
BALDWIN
PA3630
PA3630FN
BIG A FILTER
94779
CARQUEST
8779
88779
DIGOEMA
DGML255S5
DONALDSON
P533233
GPC
FC663
GPC PATARINI VASCO
FC663K
HASTINGS PREMIUM FILTERS
AF1181
HIFI
SA18005
KOBELCO
2446R255S5
KRALINATOR
LA1619F
LOESING
22059
NAPA GOLD
6779
NELSON
87657A
SF
SL8142
WISMET
WAI41387
WDON942556
WIX
46779
546779
WOODGATE
WGA1117
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| ATLAS COPCO | GA-Series | FA 26 VSD | n/a | n/a | n/a | View |
| KOBELCO | SK-Series | SK 200 III | Misubishi 6D31T | n/a | n/a | View |
| KOBELCO | SK-Series | SK 200 III YNU0054- | n/a | n/a | n/a | View |
| KOBELCO | SK-Series | SK 210 | Cummins 6BT5.9 | n/a | YNU0201-> | View |
| KOBELCO | SK-Series | SK 210 IV LC | Cummins 6BT5.9 | n/a | n/a | View |
| KOBELCO | SK-Series | SK 210 IV YNU0501-/ YQU3101- | n/a | n/a | n/a | View |
| KOBELCO | SK-Series | SK 210 IV YYNU0201-/ YQU2001- | n/a | n/a | n/a | View |
| KOBELCO | SK-Series | SK 210 LC | Cummins 6BT5.9 | n/a | YQU2001-> | View |
Baldwin PA3630-FN air filter, 520.7 mm long × 222.3 mm diameter. Replaces Baldwin PA3630, Big A FILTER 94779, Carquest 88779 and more. In stock at Rico Europe.
