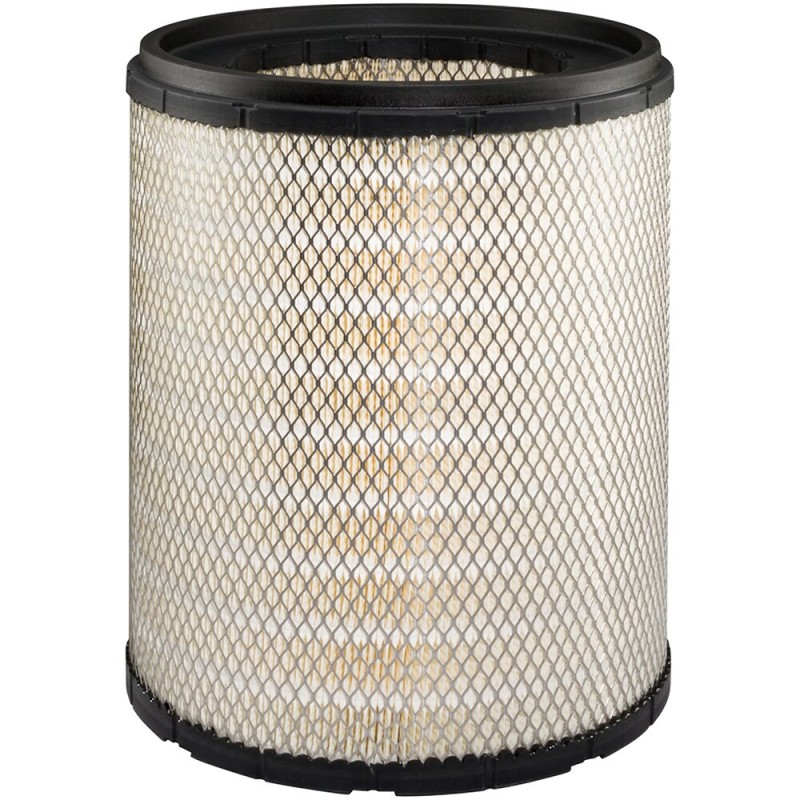

Baldwin PA1634, Outer Air Filter Element
£49.89
VAT excluded
Delivered within 1-2 Days
Description
The Baldwin PA1634 is an air filter, 342.9 mm long and 282.6 mm in diameter. It traps dust and debris before they reach the engine, protecting it from premature wear. It commonly replaces Acdelco A209C, Air REFINER ARM1113, Air REFINER ARM181104, Airfil AFA-503, Alco FILTERS MD360 and 192 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
13 1/2 (342.9)
Related To
LL1634 (Long-Life Media Version);PA1634XP (Extreme Performance Nano Version)
Product Type
Outer Air Element
Outside Diameter
11 1/8 (282.6)
Inside Diameter
6 23/32 (170.7) One End
Gasket
Attached Gasket: [1] Attached
Application
Caterpillar Truck Engines, Equipment
Compatible Competitor Part Number
Caterpillar 4M9334, 8N5317; General Motors 6421540; Mitsubishi 4574070210; Poclain P2050509
For Use With
PA1675, PA2310, PA2737
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Baldwin
|
PA1634 | 1 In stock | £49.89 |
Cross References
ACDELCO
A209C
AIR REFINER
ARM1113
ARM181104
AIRFIL
AFA-503
ALCO FILTERS
MD360
AMERICAN PARTS
298
93334
AP LOCKHEED
LK3685
BALDWIN
50010232
PA1634
BOWES
LAF334
BUSSE & KUNTZE
LE663
CANADIAN FILTER CO
CFM78
CARQUEST
87334
CASE
1P9376
6N7847
CATERPILLAR
1P2781
1P7958
1S4762
1S4763
1W7365
1W7919
2P5080
2P8863
2W3785
3I0850
3S8510
4M9334
4N4812
4R2299
4W9079
5R0381
5R381
6N8262
7N5483
7S5474
7W5317
7W5317E
8N3335
8N5317
8N5373
8N6299
9L0699
9L699
9M1827
9M9970
9S0664
9S1128
9S664
9S9970
CHAMPION LABORATORIES
AF334
CHAMPION SPARK PLUG
HA544
CLARCOR UK
FMA0931
CLEAN FILTERS
MA503
CONTINENTAL
PCA226
COOP
AP4M9334
PMA4M9334
COOPERS
AZA609
L95425
CROSLAND
9552
DELUXE
499
499AIR
AF499
DIAMOND
DX613
DIGOEMA
DGM01100
DONALDSON
EBA120071
EBB120070
EBB120071
EBG120076
EGB120062
EGB120063
EGB120064
EGB120067
EGB120069
EGB120072
EGB120073
EGB120074
EGB120075
EGB120076
EGB120090
EGB120097
EGB120119
EGB120161
EGB120877
P019159
P019509
P137652
P138752
P150908
P159040
P181104
P19159
P901526
SMP181104
EUROFILTER
07JAN
71
FAMEL
FR871
FIAAM
FL16277
FL6277
FLI6277
FIL FILTERS
54RS211697
FILT
A2336
FILTER CONTROL LTD
FCL2213
FILTER MEX
FMA226
FILTREL
FMA47
FINN FILTER
FFA803
FLEETGUARD
AF334M
AF335
FLEETLIFE
FA4M9334
FLEETRITE
AFR8335
FLUXFILTER
AC226
FORD
C8HZ9601E
FORTIS
1AF335M
FRAM
CA226
GENERAL MOTORS CORP
6421540
GFF
AF330170PU
GLOBAL FILTERS
61634
GONHER
GA9334
GA9334M
GPC
FC277
GRAINGER
2KZF3
GREYFRIARS
1305A
GUARDIAN FILTER CO
G4M9334
GUD
ADG649
HASTINGS PREMIUM FILTERS
AF108
HEAVY DUTY AIR
A9334
HDA9334
HENGST
E569L
HIFI
SA10285
INDUCONTROL
AR226
KIRKALDIE ENG
KA100
KRALINATOR
LA78
LB FILTER
A665
MANN AND HUMMEL
C296241
MANN HUMMEL
C29624
MANN-FILTER
4562455102
C29641
MFILTER
A8010
MIGHTY
HA9334
MITSUBISHI
4574070210
MOTORCRAFT
FA138
NAPA GOLD
2334
NATIONAL STOCK NUMBER
2940009103065
NELSON
70413N
NUTECH
N1533
S1534
ORENSTEIN KOPPEL
101008
1450585
PBR
AI3203
PERMATIC
FA3236
PERRY
PA499
PIERCEGOVERNOR
550011031
PIPERCROSS
PX127
POCLAIN
E1250560
P2050509
PRO FILTERS
DA1277
PURE FLOW
PAF9334
PURFLUX
A923
PUROLATOR
9304811
A69334
AF9334
QIF AIR
ACA226
QUAKER STATE
QSA226
RADIALFIL
AP9334
REFILCO
AF2334
REYTOR
IT1113
RYCO
HDA5157
SAKURA
A5509
A5509S
A5522S
SAVARA
92290111
92290117
SCTFILTER
SB3203
SENNEBOGEN
2753026744
3753030300
SF
SL6370
SOFIMA
S0350A
SOPARIS
FDA3105
SOTRAS
SA6229
STAY READY
SRPA1113
SRPAM1113
SURE FILTER
SFA93341P
SURE FILTER TECHNOLOGY
SFA9334P
SFA9334SET
TECFIL
AP4934
AR4934
TECNOCAR
A530
TEHO FILTER
IIM229
TRUAIR
T9334
TA7366
UFI FILTERS
2700600
UNITED AIR CLEANER
U4M9334
VIRGIS
CH12214
WESTERN TOOL CO
WA2060
WGB
SA113
WIRTGEN
6456
WIX
42334
DT9334
WOODGATE
WGA100
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| ALBARET | ISOPACTOR | ISOPACTOR M 6 | Cat 3208 | n/a | n/a | View |
| ALBARET | ORTHOPACTOR | ORTHOPACTOR P 5 | Cat 3208 | n/a | n/a | View |
| ALBARET | P/PF-Series | P 5 | Cat | n/a | n/a | View |
| CAT | 1. | 12 F | n/a | n/a | n/a | View |
| CAT | 1. | 14 | Cat | n/a | 96U1 | View |
| CAT | 1. | 14 GR | Cat | n/a | n/a | View |
| CAT | 100-Series | 140 G | Cat 3306 | n/a | n/a | View |
| CAT | 200-Series | 215 | n/a | n/a | 95Z1-> | View |
| CAT | 200-Series | 215 | n/a | n/a | 9YB1-> | View |
| CAT | 200-Series | 215 | n/a | n/a | 4FC1 | View |
| CAT | 200-Series | 215 C | Cat | n/a | 44G1-> | View |
| CAT | 200-Series | 215 LC | Cat 3304DI | n/a | n/a | View |
| CAT | 200-Series | 215 SA | Cat 3304DI | n/a | n/a | View |
| CAT | 200-Series | 219 | Cat | n/a | 5 CF1 | View |
| CAT | 200-Series | 219 | n/a | n/a | 5CF1-> | View |
| CAT | 200-Series | 225 | Cat | n/a | 76 U | View |
| CAT | 200-Series | 225 | n/a | n/a | 76U1-> | View |
| CAT | 200-Series | 229 | n/a | n/a | n/a | View |
| CAT | 3000-Series | 3208 03Z1-> | n/a | n/a | 03Z1-> | View |
| CAT | 3000-Series | 3208 29A1-> | n/a | n/a | 29A1-> | View |
| CAT | 3000-Series | 3208 30A1-> | n/a | n/a | 30A1-> | View |
| CAT | 3000-Series | 3208 90N1-> | n/a | n/a | 90N1-> | View |
| CAT | 500-Series | 528 B | Cat | n/a | 8SJ1-> | View |
| CAT | 500-Series | 530 B | Cat 3306 | n/a | n/a | View |
| CAT | 800-Series | 816 B | Cat | n/a | 15Z1-> | View |
| CAT | 900-Series | 936 | Cat | n/a | n/a | View |
| CAT | 900-Series | 936 E | n/a | n/a | n/a | View |
| CAT | 900-Series | 950 | Cat | n/a | Version 2 | View |
| CAT | 900-Series | 950 B | n/a | n/a | n/a | View |
| CAT | 900-Series | 950 E | Cat | n/a | n/a | View |
| CAT | 900-Series | 950 E | Cat | n/a | 22Z3189-> | View |
| CAT | 900-Series | 950 F | n/a | n/a | n/a | View |
| CAT | 900-Series | 953 | Cat | n/a | n/a | View |
| CAT | 900-Series | 953-/20Z1 | Cat 3024 | n/a | 5Z1->/ 76Y1->/78Y1061 | View |
| CAT | 900-Series | 955 K | Cat D330T | n/a | n/a | View |
| CAT | 900-Series | 955 K/ 955 L | Cat D 330T | n/a | n/a | View |
| CAT | 900-Series | 955 L | Cat D 330T | n/a | n/a | View |
| CAT | 900-Series | 966 | n/a | n/a | 33A | View |
| CAT | 900-Series | 966 C/D | Cat | n/a | n/a | View |
| CAT | 900-Series | 966 E | Cat 3306 | n/a | 94X08747 | View |
| CAT | 900-Series | 966 F | Cat | n/a | n/a | View |
| CAT | 900-Series | 980 | n/a | n/a | 89P<-1539 | View |
| CAT | 900-Series | 980 | n/a | n/a | 42H | View |
| CAT | 900-Series | 980 (B) | n/a | n/a | 89P 1540->1878 | View |
| CAT | CB-Series | CB 624 | Cat 3208 | n/a | n/a | View |
| CAT | CP-Series | CP 643 | Cat 3304 | n/a | n/a | View |
| CAT | CS-Series | CS 643 | Cat 3304 | n/a | n/a | View |
| CAT | CS-Series | CS 653 | Cat 3304 | n/a | n/a | View |
| CAT | D-Series | D 5 | n/a | n/a | 96J | View |
| CAT | D-Series | D 5 | n/a | n/a | 63J | View |
| CAT | D-Series | D 5 H | Cat | n/a | n/a | View |
| CAT | D-Series | D 6 | n/a | n/a | 76A/ 83A | View |
| CAT | D-Series | D 6 | n/a | n/a | 47J <-2459 | View |
| CAT | D-Series | D 6 H | Cat | n/a | n/a | View |
| CAT | D-Series | D 6 H XL | Cat | n/a | n/a | View |
| CAT | D-Series | D 7 | n/a | n/a | 94N <-3357 | View |
| CAT | D-Series | D 7 | n/a | n/a | 94N 3358-> | View |
| CAT | D-Series | D 7 H | Cat 3306 | n/a | n/a | View |
| CAT | D-Series | D 8 | n/a | n/a | 68A 4868-> | View |
| CAT | D-Series | D 8 H | Cat | n/a | n/a | View |
| CAT | E-Series | E 300 | Cat | n/a | 2CF101 | View |
| CAT | EL-Series | EL 300 | Cat | n/a | 4NF101 -> | View |
| CAT | EL-Series | EL 300 | Cat | n/a | 4NF001 - 4NF100 | View |
| CAT | PS-Series | PS 500 | Cat | n/a | n/a | View |
| ICE | 1. | 300.21120 | Cat 3306 | n/a | n/a | View |
| INGERSOLL RAND | T-Series | T 4 BH | Cat | n/a | n/a | View |
| MARKS | SF-Series | SF 1300 (Belagsfraese) | Cat 3208 | n/a | n/a | View |
| SENNEBOGEN | 1. | 640 HD | Cat | n/a | n/a | View |
| SENNEBOGEN | S-Series | S 655R | n/a | n/a | n/a | View |
| SOILMEC | R-Series | R 10 | Cat | n/a | n/a | View |
| WILLIBALD | MZA | MZA 2500 | Cat | n/a | n/a | View |
Baldwin PA1634 air filter, 342.9 mm long × 282.6 mm diameter. Replaces Acdelco A209C, Air REFINER ARM1113, Air REFINER ARM181104 and more. In stock at Rico Europe.
