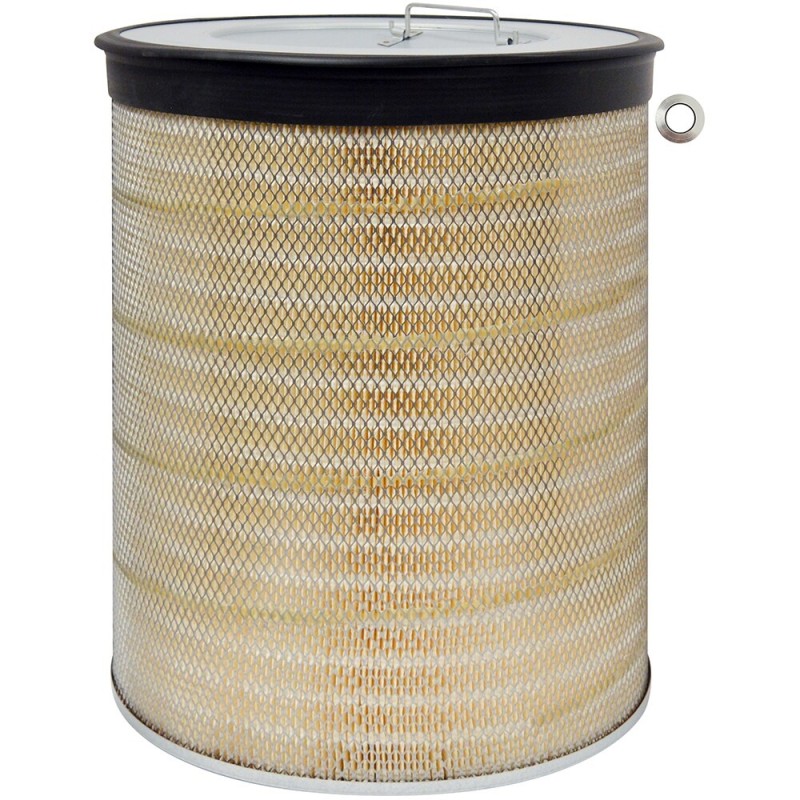

Baldwin PA2363, Outer Air Filter Element with Lift Bar
search
  • Baldwin PA2363, Outer Air Filter Element with Lift Bar
OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

Baldwin PA2363, Outer Air Filter Element with Lift Bar

Average lead time 7-10 days SKU: PA2363
£160.40
VAT excluded Average lead time 7-10 days
Quantity

Description

The Baldwin PA2363 is an air filter, 597.7 mm long and 465.1 mm in diameter. It traps dust and debris before they reach the engine, protecting it from premature wear. It commonly replaces Acdelco A554C, Air REFINER ARM115069, Air REFINER ARM181038, American PARTS 1147, American PARTS 93440 and 125 other references. Supplied by Rico Europe with fast UK delivery.

Specifications

Length 597.7 mm (23.53 inch)
Overall Diameter 447.7 mm (17.63 inch)
Internal Diameter 23.8 mm (0.94 inch)
Related To LL2363 (Long-Life Media Version);PA2363XP (Extreme Performance Nano Version)
Product Type Outer Air Element with Bail Handle
Outside Diameter 17 5/8 (447.7) Boot 18 5/16 (465.1)
Inside Diameter 15/16 (23.8) & 11 (279.4)
Gasket Attached Gasket: [2] Attached; Furnished Gasket: [1] Included
Application Caterpillar, Euclid, Hitachi, KW-Dart, Terex, Unit Rig, WABCO Equipment
Compatible Competitor Part Number Caterpillar 9Y6835; KW-Dart 3040562; Terex 6945659; WABCO VA2186
For Use With PA2364

Available in these brands

Brand Reference Availability Price
Baldwin
PA2363 Order on request £160.40

Cross References

ACDELCO
A554C
AIR REFINER
ARM115069
ARM181038
AMERICAN PARTS
1147
93440
BALDWIN
50010604
PA2363
BOWES
LAF5069
CANADIAN FILTER CO
CFM528
CARQUEST
87440
CATERPILLAR
1327173
2515885
3I0791
9Y6835
9Y7662
CHAMPION LABORATORIES
AF5069
CLARCOR UK
FMA0969
CONTINENTAL
PCA573
COOPERS
AEM2012
CUMMINS
3010306
3013214
3015349
3638679
CYCLONE
PMA115069
DART TRUCKS
3040562
DELUXE
681
AF681
DEMAG
988635
DONALDSON
G200008
G290000
G290023
P115069
P126900
P129600
P140236
P148024
P181038
P184038
SMP181038
SRG200008
SRG200031
SRG200038
SRG200059
SRG290000
SRG290001
SRG290002
SRG290010
SRG290011
SRG290023
SRG290024
EUCLID
4031216
4082222
6945659
E4082222
EUROFILTER
3105
31MAY
FLEETGUARD
AA2906
AF879
FLEETLIFE
FA115069
FLEETRITE
AAR82906
AFR8879
FRAM
CA573
GARDNERDENVER
5825543
GENERAL MOTORS CORP
645185
6945186
6947176
8994204
9059510
9059560
GFF
AF486280
GLOBAL FILTERS
62363
GONHER
GA573
GA879
GRAINGER
2NVJ2
GUARDIAN FILTER CO
G115069
HASTINGS PREMIUM FILTERS
AF574
HEAVY DUTY AIR
A3888
HDA5069
HIFI
SA10829
HITACHI
4331923
L4331923
INGERSOLLRAND
52242971
56964562
57087264
KENWORTH
10005140
3040553
3040683
KRALINATOR
LA528
LEROI
43669
LETOURNEAUMARATHON
1438
4078927
PB0687
PB1242
PB2433
VA0003
VS2186
YA0003
LUBERFINER
LAF5079
MTU
8690940080
NAPA GOLD
2440
NELSON
70400N
NELSONWINSLOW
115069
NORTHWEST
62101232
NUTECH
N2587
S2587
ORENSTEIN KOPPEL
101080
1408439
PRO FILTERS
DA2087
PURE FLOW
PAF5069
PUROLATOR
A72919
AF2916
AF2919
QUAKER STATE
QSA573
REFILCO
AF2440
REYTOR
IT115069
RYCO
HDA5370
SAKURA
A9217
A9217S
SDMO
330560501
FAE501
SF
SL8944
SOFIMA
S7313A
SURE FILTER TECHNOLOGY
SFA0879P
UFI
2731300
UNIT RIG
20801
23126
901727
UNITED ENGINE LIFE
U15069
VME VOLVOMICHIGANEUCLID
40822223
WABCO
TA3537
VA2186
WIX
42440
WOODGATE
WGA393

RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.

Machine Details

Manufacturer Series Model Engine Year Serial
CAT 700-Series 797 B Cat 3524B n/a n/a View
EUCLID EH-Series EH 1100 GM n/a n/a View
EUCLID R-Series R 50-301 LD Cummins n/a n/a View
EUCLID R-Series R 50-324 LD Cummins n/a n/a View
EUCLID R-Series R 65 Cummins VTA28C n/a n/a View
HITACHI EX-Series EX 2500 Cummins KTA25C n/a n/a View
LETOURNEAU L-Series L 1000 Cummins n/a n/a View
LETOURNEAU L-Series L 700 Cummins n/a n/a View
LETOURNEAU L-Series L 800 Cummins n/a n/a View
