OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

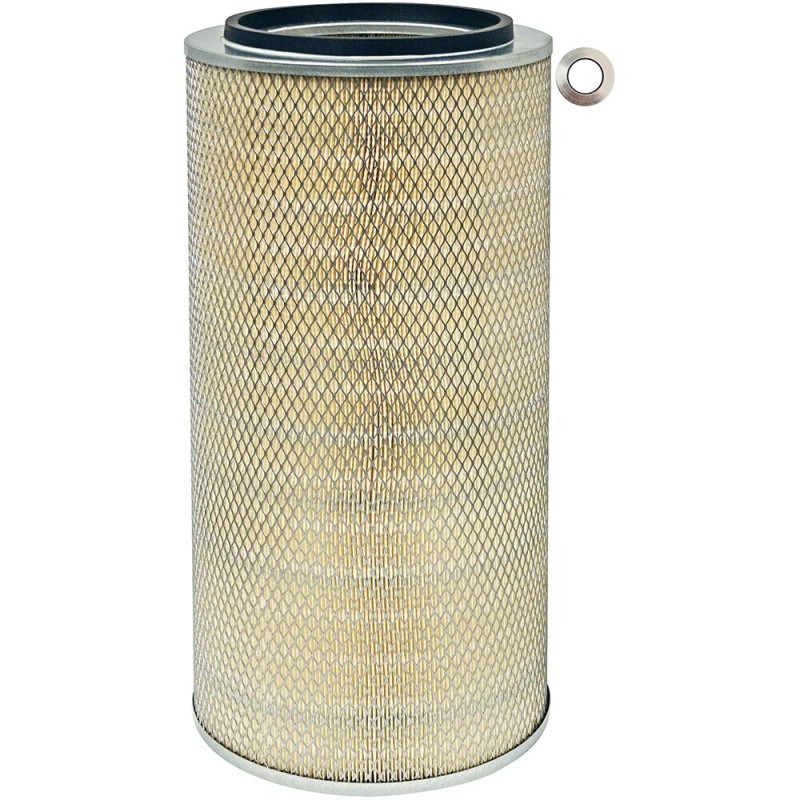

Baldwin PA2582, Outer Air Filter Element
£93.19
VAT excluded
Delivered within 1-2 Days
Description
The Baldwin PA2582 is an air filter, 520.7 mm long and 275.4 mm in diameter. It traps dust and debris before they reach the engine, protecting it from premature wear. It commonly replaces Acdelco A2817C, Acdelco A943C, Air REFINER ARM124045, Alshams FILTERS ER8097, American PARTS 1579 and 103 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
520.7 mm (20.5 inch)
Overall Diameter
275.4 mm (10.84 inch)
Internal Diameter
23.8 mm (0.94 inch)
Related To
LL2582 (Long-Life Media Version)
Product Type
Outer Air Element
Outside Diameter
10 27/32 (275.4)
Inside Diameter
15/16 (23.8) & 6 1/2 (165.1)
Gasket
Attached Gasket: [1] Attached; Furnished Gasket: [1] Included
Application
Case, Champion, Hitachi, John Deere, Kawasaki, Kobelco, V.M.E., Volvo Equipment
Compatible Competitor Part Number
Case 150783A1; Champion 37398; John Deere AT136708; Kawasaki 30981-70100
For Use With
PA2583, PA3896
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Baldwin
|
PA2582 | 1 In stock | £93.19 |
Cross References
ACDELCO
A2817C
A943C
AIR REFINER
ARM124045
ALSHAMS FILTERS
ER8097
AMERICAN PARTS
1579
93216
ASAHI
A394A
A394V
IA394
BALDWIN
50010719
PA2582
PA3938
BLOUNT
811999600
BOWES
LAF1787
BUSSE & KUNTZE
LE768
CANADIAN FILTER CO
CFM843
CARQUEST
87216
CASE
150783A1
CATERPILLAR
3I0832
7Y1323H
CHAMPION
37398
CLARK
1991852
COOPERS
AEM2038
CROSLAND
9793
DELSA
DA2117
DONALDSON
FTG130014
FTG130025
P124045
P132091
P148386
P181082
P500181
P533443
P781137
P812306
P812316
P812324
P812345
SMP181082
EUROFILTER
6115
FIAT
4391205
71473480
FILTERLAND
FLA2117
FRAM
CA3782
GENERAL MOTORS CORP
25043732
89034495
GFF
AF507165
GPC
FC974
GRAINGER
2KZT1
GUARDIAN FILTER CO
G124045
HALLA
439202624
439202624A
79114557A
HASTINGS PREMIUM FILTERS
AF544
HEAVY DUTY AIR
HDA4045
HIFI
SA10925
HINO
178012150
HITACHI
CPH0413
L4391205
HYUNDAI
11L12003
11L120031
INGERSOLL
59860809
INGERSOLLRAND
35384619
ISUZU
1142150580
1142151020
1142151840
1142152100
14215058
JCB
JSH0022
KTH0284
JOHN DEERE
AT136708
KAWASAKI
3098170100
3098170510
YYP182178
ZZP181082
ZZYYP181082
KOBELCO
2446R352S3
2446U250S3
2446U252S3
LS11PU0003S004
KRALINATOR
LA843
LINKBELT
3H1989
C6H0009
MANN AND HUMMEL
4592155134
MANN HUMMEL
C28950
MICRO NIPPON MICRO FILTER CO
AC6412A
MITSUBISHI
4722039800
4722039802
ME058741
NAPA GOLD
2216
NELSON
84703S
NISSAN
16546NB01K
PUROLATOR
A73543
AF3543
REFILCO
AF2216
RYCO
HDA458
HDA5456
SAKURA
A1828
A1840S
SAMSUNG
16546A0010
16546A0020
SF
SL8960
SOFIMA
S7307A
SURE FILTER TECHNOLOGY
SFA1082P
SFA6063SET
TADANO
34780927510
UFI
2730700
VOLVO
821006320
SA821006320
WIX
42216
542216
WOODGATE
WGA663
WOWIDE FILTER
AIS02
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| BENATI / BENMAG | 1. | 12 S | Fiat | n/a | n/a | View |
| BENATI / BENMAG | B-Series | B 12 S | Iveco | n/a | n/a | View |
| CASE | 9000-Series | 9033 | Misubishi 6D24TE1 | n/a | n/a | View |
| CASE | 9000-Series | 9033 | Misubishi | n/a | n/a | View |
| CASE | 9000-Series | 9046 | Misubishi 6D24TCE1 | n/a | n/a | View |
| CASE | 9000-Series | 9046 | Misubishi 6D24-TCE1 | n/a | n/a | View |
| CAT | 300-Series | 330 L/LN | Cat 3306DITA | n/a | n/a | View |
| CLAAS | 100-Series | 125 C | Cummins N855C-235 | n/a | n/a | View |
| CLARK-MICHIGAN | 1. | 125C | Cummins N855C-235 | n/a | n/a | View |
| DONGFENG | EQ-Series | EQ 1135 A7 D1 | Cummins 6BT5.9 | 2009-> | n/a | View |
| DONGFENG | EQ-Series | EQ 1137 A7 D1 | Cummins 6BTA5.9 | 2009-> | n/a | View |
| DONGFENG | EQ-Series | EQ 1200 VX3 | DONGFENG EQB180-20 | n/a | n/a | View |
| DONGFENG | EQ-Series | EQ 1200 VX3 | DONGFENG EQB190-21 | n/a | n/a | View |
| DONGFENG | EQ-Series | EQ 1228 V2 | Cummins 6BTAA5.9 | 2009-> | n/a | View |
| DONGFENG | EQ-Series | EQ 1230 V2 | Cummins 6CTA8.3 | n/a | n/a | View |
| DONGFENG | EQ-Series | EQ 1242 G/GH | Cummins 6CTA8.3 | 2009-> | n/a | View |
| DONGFENG | EQ-Series | EQ 1254 G | Cummins 6CTA8.3 | 2009-> | n/a | View |
| DONGFENG | EQ-Series | EQ 3135 F7D | Cummins 6BTA5.9 | 2009-> | n/a | View |
| DONGFENG | EQ-Series | EQ 3161 GX | ISDE21030 / B19030 | n/a | n/a | View |
| DONGFENG | EQ-Series | EQ 3166 GB3G | YC6A240-33 | n/a | n/a | View |
| DONGFENG | EQ-Series | EQ 3166 GB3G | YC6A240-31 | n/a | n/a | View |
| DONGFENG | EQ-Series | EQ 3166 GB3G | C24533 | n/a | n/a | View |
| DONGFENG | EQ-Series | EQ 3228 G | Cummins 6CTA8.3 | 2009-> | n/a | View |
| DONGFENG | EQ-Series | EQ 4135 A7D | Cummins 6BTA5.9 | 2009-> | n/a | View |
| DONGFENG | EQ-Series | EQ 4165 G | Cummins 6CTAA8.3 | n/a | n/a | View |
| DONGFENG | EQ-Series | EQ 4254 G | Cummins 6CTA8.3 | 2009-> | n/a | View |
| DONGFENG | EQ-Series | EQ 5242 XXY | Cummins 6CTA8.3 | 2009-> | n/a | View |
| DONGFENG | EQ-Series | EQ 5254 XXY | Cummins 6CTA8.3 | 2009-> | n/a | View |
| FOTON | TRUCK/BUS/CAR | BJ 4251 SLFJB-S | WEICHA WP10.330N | n/a | n/a | View |
| FOTON | TRUCK/BUS/CAR | BJ 4253 SMFKB-S6 | WEICHA WP12.336/375N | n/a | n/a | View |
| HITACHI | EX-Series | EX 300-5 | Isuzu 6SD1 | n/a | n/a | View |
| HITACHI | EX-Series | EX 335 LC | n/a | n/a | n/a | View |
| HITACHI | EX-Series | EX 355 LC | n/a | n/a | n/a | View |
| HITACHI | SCX-Series | SCX 2500 | Misubishi | n/a | n/a | View |
| HYUNDAI | HL-Series (Wheel Loader) | HL 35 | Cummins LTA10A | n/a | n/a | View |
| HYUNDAI | HL-Series (Wheel Loader) | HL 740-7A | Cummins QSB6.7 | 2008-> | n/a | View |
| HYUNDAI | HL-Series (Wheel Loader) | HL 740TM-7A | Cummins QSB6.7 | 2008-> | n/a | View |
| HYUNDAI | HL-Series (Wheel Loader) | HL 757-7A | Cummins QSB6.7 | 2007-> | n/a | View |
| HYUNDAI | HL-Series (Wheel Loader) | HL 757TM-7A | Cummins QSB6.7 | 2007-> | n/a | View |
| HYUNDAI | HL-Series (Wheel Loader) | HL 760-7A | Cummins QSB6.7 | 2007-> | <-212 | View |
| HYUNDAI | HL-Series (Wheel Loader) | HL 760-7A | Cummins QSB6.7 | 2007-> | <-186 | View |
| HYUNDAI | Robex | R 290 LC-7H | Cummins | n/a | n/a | View |
| HYUNDAI | Robex | R 305 LC-7 | Cummins C8.3-C | n/a | n/a | View |
| HYUNDAI | Robex | R 305LC-7 | Cummins | 2006-> | n/a | View |
| HYUNDAI | Robex | R 320 LC-3H | HYUNDAI | n/a | n/a | View |
| HYUNDAI | Robex | R 320 LC-7 | Cummins 6C8.3 | 2003 - 2007 | n/a | View |
| HYUNDAI | Robex | R 320 LC-7A | Cummins QSC8.3 | 2007-> | n/a | View |
| HYUNDAI | Robex | R 360 LC-3H | HYUNDAI | n/a | n/a | View |
| HYUNDAI | Robex | R 360 LC-7 | Cummins QSC8.3 | 2003 - 2007 | n/a | View |
| HYUNDAI | Robex | R 360 LC-7A | Cummins QSC8.3 | 2005-> | n/a | View |
| HYUNDAI | Robex | R 450 LC-3 | Cummins LTA10C | n/a | n/a | View |
| HYUNDAI | Robex | R 450LC-3 | Cummins M11C | <-2002 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CVS 81 | Isuzu 10PE1 | 05.95->03.97 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CVZ 70-U | Isuzu 8PD1 | 09.89->04.95 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CVZ 71-U | Isuzu 10PD1 | 09.89->04.95 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXG 70-U | Isuzu 8PD1 | 09.89->09.94 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXG 71-U | Isuzu 10PD1 | 09.89->09.94 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXH 71-U | Isuzu 10PD1 | 09.89->09.94 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXK 71-U | Isuzu 10PD1 | 10.92->09.94 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXL 71-U | Isuzu 10PD1 | 09.89->09.94 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXM 70-U | Isuzu 8PD1 | 09.89->09.94 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXM 71-U | Isuzu 10PD1 | 09.89->09.94 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXW 17-P | Isuzu 8PC1 | 05.88->12.89 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXW 19-P | Isuzu 10PC1-S | 02.85->06.90 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXW 71-U | Isuzu 10PD1 | 06.90->09.94 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXW 81 | Isuzu 10PE1 | 05.95->03.97 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXZ 70-U | Isuzu 8PD1 | 09.89->09.94 | n/a | View |
| ISUZU | TRUCK/BUS/CAR | CXZ 71-U | Isuzu 10PD1 | 09.89->09.94 | n/a | View |
| JCB | JS-Series | JS 300 LC | Isuzu 6SDIT PB-01 | n/a | n/a | View |
| JCB | JS-Series | JS 330 | Isuzu 6BD | n/a | n/a | View |
| JCB | JS-Series | JS 450 LC | Isuzu 6RBITPE01 | n/a | 714002-> | View |
| KAWASAKI | 1. | 80 ZV | Cummins 6CTAA8.3 | n/a | n/a | View |
| KAWASAKI | 1. | 88 Z II | Nissan | n/a | 088101-> | View |
| KAWASAKI | 1. | 88 Z II | Nissan | n/a | 088100-> | View |
| KAWASAKI | 1. | 90 Z 3 | Nissan | n/a | n/a | View |
| KAWASAKI | 1. | 95 ZV | Cummins QSX 15 | n/a | n/a | View |
| KOBELCO | SK-Series | SK 400 | Misubishi | n/a | n/a | View |
| KOBELCO | SK-Series | SK 400 | Misubishi 6D22CT | n/a | n/a | View |
| KOBELCO | SK-Series | SK 430 LC-3 | n/a | n/a | LS05-> | View |
| KOBELCO | SK-Series | SK 430-3 | n/a | n/a | LS05 | View |
| KOBELCO | SK-Series | SK 450-3 | n/a | n/a | LS05-> | View |
| KOBELCO | SK-Series | SK 480 LC | Misubishi 6D24-TLU2C | n/a | n/a | View |
| KOBELCO | SK-Series | SK 480 LC | Misubishi 6D24TLU2C | n/a | n/a | View |
| KOBELCO | SK-Series | SK 480 LC VI | Misubishi | n/a | n/a | View |
| MITSUBISHI | MG-Series | MG 560 | Misubishi | n/a | n/a | View |
| SAMSUNG | SE-Series | SE 180-2 W | Cummins 6CT8.3 | n/a | n/a | View |
| SANY | SY-Series | SY 310 C-2 | Cummins QSC8.3 | n/a | n/a | View |
| SANY | SY-Series | SY 330 C-2 | Cummins QSC8.3 | n/a | n/a | View |
| SUMITOMO | SH-Series | SH 450 LHD | Misubishi | n/a | n/a | View |
| TADANO | TR-Series | TR 200 EX | Misubishi | n/a | n/a | View |
| VOLVO | EC-Series | EC 290 | SAMSUNG | n/a | n/a | View |
| VOLVO | EC-Series | EC 290 A | Cummins C8.3C | n/a | n/a | View |
| VOLVO | EC-Series | EC 360 | Cummins | n/a | n/a | View |
| XCMG | LW-Series | LW 500 K | WD10G220E21 | n/a | n/a | View |
| XCMG | LW-Series | LW 500 K | Weichai Power WD10G220E21 | n/a | n/a | View |
| XCMG | ZL-Series | ZL 50 G | SC11CB220 | n/a | n/a | View |
| XCMG | ZL-Series | ZL 50 G | SDEC SC8DK220G3 | 2019-> | n/a | View |
| XCMG | ZL-Series | ZL 50 G | WD10G220E21 | n/a | n/a | View |
| YUTONG | ZK-Series | ZK 6100 HB | Cummins C245-20 | n/a | View | |
| YUTONG | ZK-Series | ZK 6118 HGA-1 | Cummins C245-20 | 2008 | n/a | View |
| YUTONG | ZK-Series | ZK 6119 HA-3 | Cummins C300-20 | 2008 | n/a | View |
| YUTONG | ZK-Series | ZK 6120 HA-3 | Cummins C300-20 | 2008 | n/a | View |
| YUTONG | ZK-Series | ZK 6129 CR | n/a | 2012 | n/a | View |
| YUTONG | ZK-Series | ZK 6129 H | Cummins L360-20 | n/a | n/a | View |
| YUTONG | ZK-Series | ZK 6129 H-2 | Cummins L360-20 | 2008 | n/a | View |
| YUTONG | ZK-Series | ZK 6830 CGR | n/a | 2012 | n/a | View |
| YUTONG | ZK-Series | ZK 6831 HE | Cummins EQB210-20 | 2008 | n/a | View |
| YUTONG | ZK-Series | ZK 6860 CR-3 | n/a | 2012 | n/a | View |
Baldwin PA2582 air filter, 520.7 mm long × 275.4 mm diameter. Replaces Acdelco A2817C, Acdelco A943C, Air REFINER ARM124045 and more. In stock at Rico Europe.
