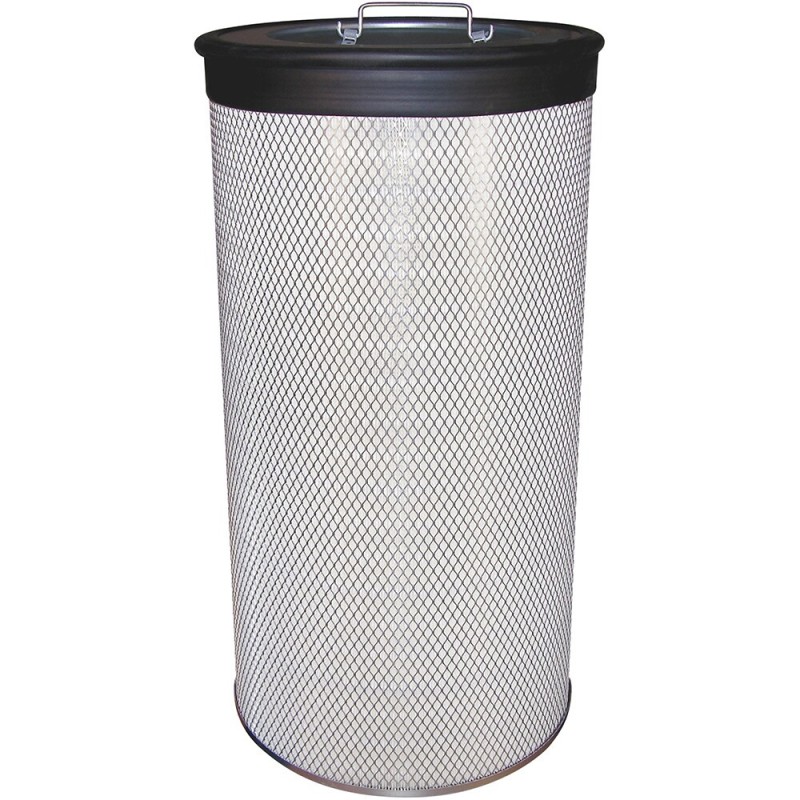

Baldwin PA3806, Outer Air Filter Element with Bail Handle
search
  • Baldwin PA3806, Outer Air Filter Element with Bail Handle
OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

Baldwin PA3806, Outer Air Filter Element with Bail Handle

Average lead time 7-10 days SKU: PA3806
£261.18
VAT excluded Average lead time 7-10 days
Quantity

Description

The Baldwin PA3806 is an air filter, 693.7 mm long and 368.3 mm in diameter. It traps dust and debris before they reach the engine, protecting it from premature wear. It commonly replaces Big A FILTER 94791, Carquest 88791, Champion LABORATORIES LAF8733, Donaldson P607369, Fleetguard AF25187 and 15 other references. Supplied by Rico Europe with fast UK delivery.

Specifications

Length 693.7 mm (27.31 inch)
Overall Diameter 350.8 mm (13.81 inch)
Internal Diameter 23.8 mm (0.94 inch)
Product Type Outer Air Element with Bail Handle
Outside Diameter 13 13/16 (350.8) Boot 14 1/2 (368.3)
Inside Diameter 15/16 (23.8) & 9 1/2 (241.3)
Gasket Attached Gasket: [2] Attached; Furnished Gasket: [1] Included
Application Ingersoll-Rand Compressors
Compatible Competitor Part Number Ingersoll-Rand 36864361
For Use With PA3810

Available in these brands

Brand Reference Availability Price
Baldwin
PA3806 Order on request £261.18
Donaldson
P607369 Order on request £294.21
Hifi
SA16314 Order on request £165.62

Cross References

BALDWIN
PA3806
BIG A FILTER
94791
CARQUEST
88791
CHAMPION LABORATORIES
LAF8733
DONALDSON
P607369
FLEETGUARD
AF25187
HIFI
SA12722
SA16314
INGERSOLL
36864361
KRALINATOR
LA1865
NAPA GOLD
6791
PRO FILTERS
DA3531
SAKURA
A6907
A69190S
SF
SL1123
SL81123
STIHL
41481410300B
WISMET
WAI42431
WAP105425
WIX
46791
546791

RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.

Machine Details

Manufacturer Series Model Engine Year Serial
DOOSAN 1. 10/455 Cummins QSX 15 2012-> n/a View
DOOSAN 1. 25/330 Cat C15 2011-> n/a View
DOOSAN G-Series G 400 Cummins 2011-> n/a View
DOOSAN G-Series G 450 Cummins n/a n/a View
DOOSAN G-Series G 500 Cummins QSX 1568 2011-> n/a View
DOOSAN G-Series G 570 Cummins n/a n/a View
DOOSAN NHP-Series NHP 10-425 Cummins QSX15 2008-> n/a View
GOLZ KB-Series KB 150 B-CITY STIHL FS 560 C-EM Z 01.2022 12200001 View
GOLZ KB-Series KB 200 STIHL FS560C 01.2019 n/a View
GOLZ KB-Series KB 350 STIHL FS560C 2012-> n/a View
INGERSOLL RAND 1. 1300 SERIES Cummins N14 n/a n/a View
INGERSOLL RAND 10-Series 10.370 Cummins 2008-> n/a View
INGERSOLL RAND 10-Series 10.425 Cummins QSX 15-C600 n/a n/a View
INGERSOLL RAND 10-Series 10.455 Cummins QSX15 2008-> n/a View
INGERSOLL RAND 25-Series 25.300 Cat C15 n/a n/a View
INGERSOLL RAND 25-Series 25.330 Cat C15 n/a n/a View
INGERSOLL RAND G-Series G 500 Cummins n/a n/a View
INGERSOLL RAND HP-Series HP 1300 WCU Cummins N14C 1999-> n/a View
INGERSOLL RAND HP-Series HP 1600 WCU Cummins QSX15 2006-> n/a View
INGERSOLL RAND P-Series P 1600 WCU Cummins N14C n/a n/a View
INGERSOLL RAND XP/XHP-Series XHP 1070 WCAT Cat C15 2011-> n/a View
INGERSOLL RAND XP/XHP-Series XHP 1070AW-CAT Cat n/a n/a View
INGERSOLL RAND XP/XHP-Series XHP 1170 Cat n/a n/a View
INGERSOLL RAND XP/XHP-Series XHP 1170 XCAT Cat C15 2011-> n/a View
STIHL FS-Series FS 490 STIHL n/a n/a View
STIHL FS-Series FS 490 C n/a n/a n/a View
STIHL FS-Series FS 510 C n/a n/a n/a View
STIHL FS-Series FS 510 CEM STIHL n/a n/a View
STIHL FS-Series FS 560 STIHL 2013 n/a View
STIHL FS-Series FS 560 C n/a n/a n/a View
