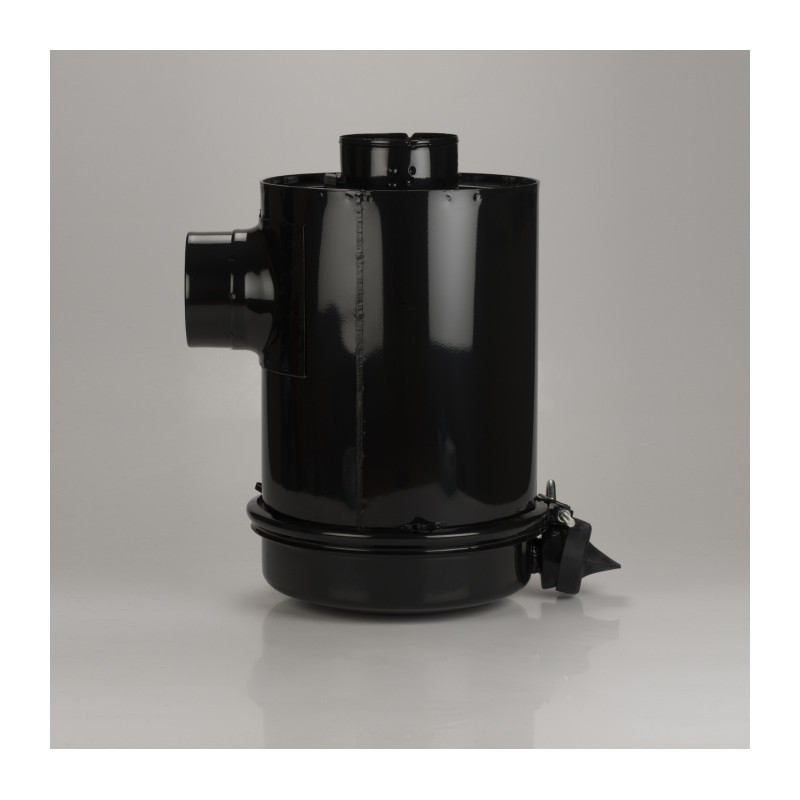

Donaldson G120036 AIR CLEANER ASSEMBLY

Data sheet

Part Number

G120036

Length

484 mm (19.06 inch)

Country of Origin

United States

Body Diameter Maximum

299.97 mm (11.81 inch)

Rated Flow LR

9.5 m³/min (335 cfm)

Rated Flow HR

12.5 m³/min (441 cfm)

Restriction LR

152 mm H2O (5.98 inch H2O)

Restriction HR

254 mm H2O (10.00 inch H2O)

Overall Length

535.432 mm (21.08 inch)

Inlet Diameter

127 mm (5.00 inch)

Outlet Diameter

127 mm (5.00 inch)

Body Length

484.12 mm (19.06 inch)

Rated Flow MR

11.1 m³/min (392 cfm)

Restriction MR

203 mm H2O (7.99 inch H2O)

Family

FHG

Inlet Length

226.57 mm (8.92 inch)

Outlet Length

51.31 mm (2.02 inch)

Service Clearance

231 mm (9.09 inch)

Inlet Location

119.3 mm (4.70 inch)

Vacuator Clearance

243 mm (9.57 inch)

Specific References

MPN

G120036
