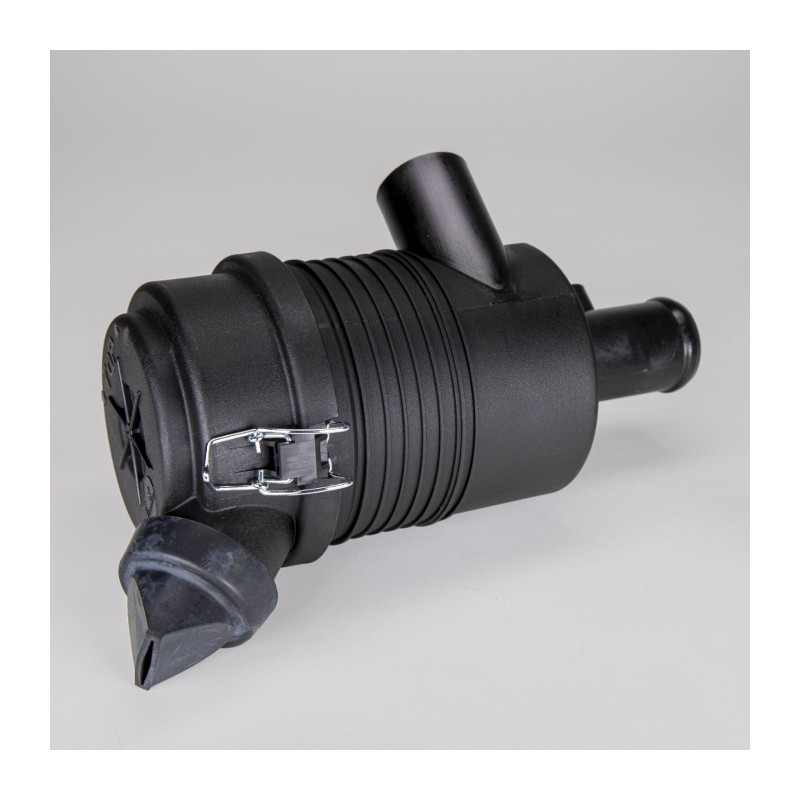

Donaldson G042547 AIR CLEANER ASSEMBLY

Data sheet

Part Number

G042547

Length

189.3 mm (7.45 inch)

Country of Origin

United States

Body Diameter Maximum

121.9 mm (4.80 inch)

Rated Flow LR

1.6 m³/min (57 cfm)

Rated Flow HR

2 m³/min (71 cfm)

Restriction LR

152 mm H2O (5.98 inch H2O)

Restriction HR

254 mm H2O (10.00 inch H2O)

Overall Length

291.5 mm (11.48 inch)

Inlet Diameter

44.5 mm (1.75 inch)

Outlet Diameter

44.5 mm (1.75 inch)

Body Length

137.9 mm (5.43 inch)

Rated Flow MR

1.8 m³/min (64 cfm)

Restriction MR

203 mm H2O (7.99 inch H2O)

Family

FPG

Inlet Length

83 mm (3.27 inch)

Outlet Length

82 mm (3.23 inch)

Service Clearance

137 mm (5.39 inch)

Inlet Location

38 mm (1.50 inch)

Vacuator Clearance

101 mm (3.98 inch)

Specific References

MPN

G042547
