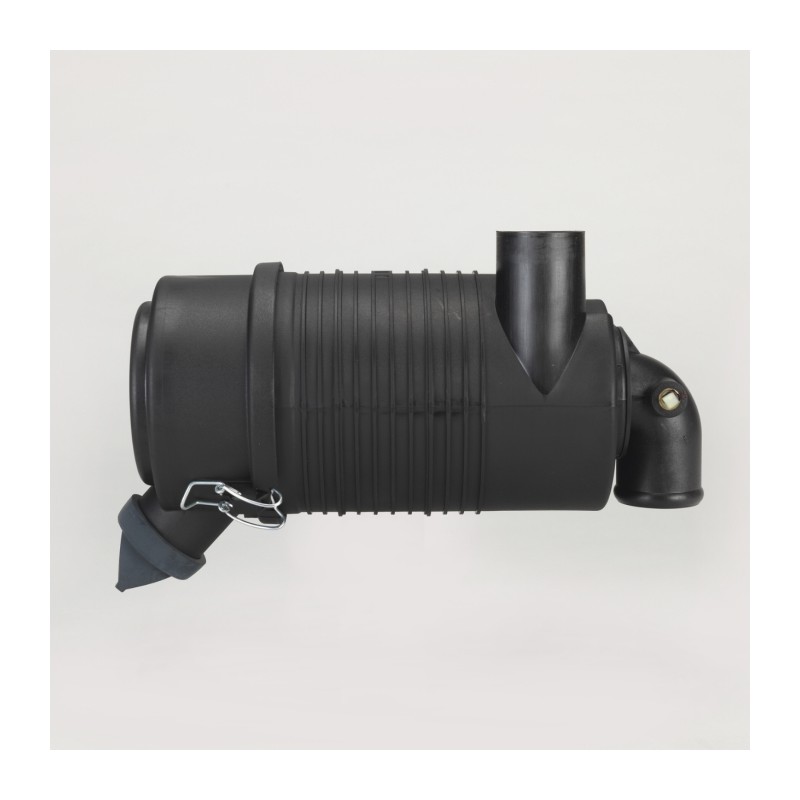

Donaldson G057516 AIR CLEANER ASSEMBLY
search
  • Donaldson G057516 AIR CLEANER ASSEMBLY

Donaldson G057516 AIR CLEANER ASSEMBLY

£0.00
VAT excluded
Quantity
closeAverage lead time 7-10 days if stock at manufacturer

The minimum purchase order quantity for the product is 15.

Shipping fees

Prices Includes VAT if applicable



Secure payments



Fast Worldwide Delivery



Hassle Free Return Policy

G057516

Data sheet

Part Number
G057516
Length
278.4 mm (10.96 inch)
Country of Origin
United States
Body Diameter Maximum
146 mm (5.75 inch)
Rated Flow LR
2.3 m³/min (81 cfm)
Rated Flow HR
3 m³/min (106 cfm)
Restriction LR
152 mm H2O (5.98 inch H2O)
Restriction HR
254 mm H2O (10.00 inch H2O)
Overall Length
288.2 mm (11.35 inch)
Inlet Diameter
50.8 mm (2.00 inch)
Outlet Diameter
50.8 mm (2.00 inch)
Body Length
205.4 mm (8.09 inch)
Rated Flow MR
2.7 m³/min (95 cfm)
Restriction MR
203 mm H2O (7.99 inch H2O)
Family
FPG
Inlet Length
97 mm (3.82 inch)
Outlet Length
34.4 mm (1.35 inch)
Service Clearance
202 mm (7.95 inch)
Inlet Location
42 mm (1.65 inch)
Vacuator Clearance
118 mm (4.65 inch)

Specific References

MPN
G057516
