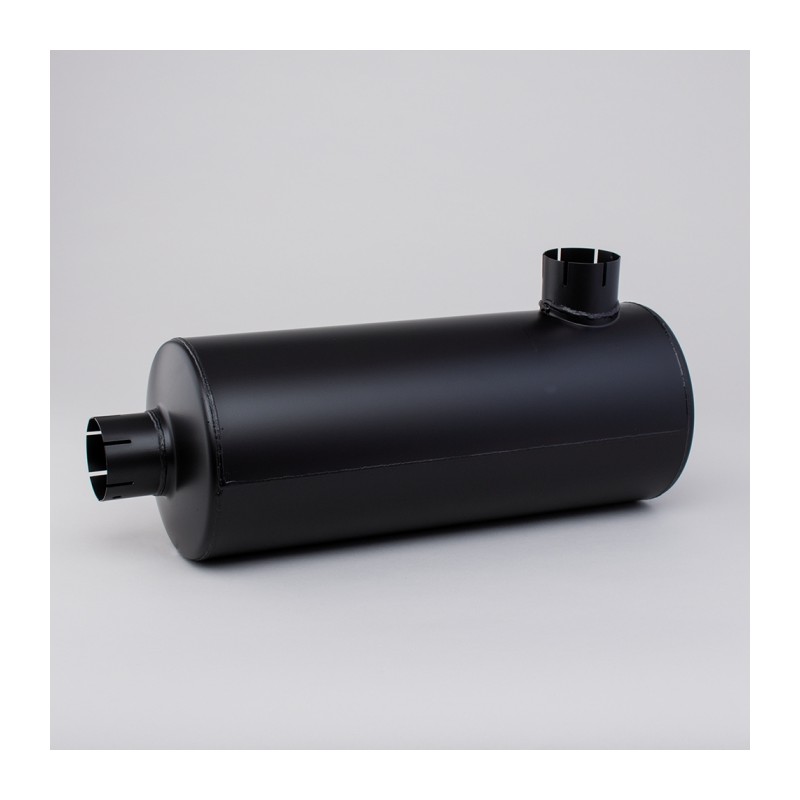

Donaldson M085409 MUFFLER ROUND STYLE 3
£289.03
VAT excluded
Average lead time 7-10 days
Description
The Donaldson M085409 is a filter, made in United States. It provides reliable filtration to protect the system from contaminants. It commonly replaces Ag CHEM EQUIPMENT 125159, Agco WR125159, Astec AU109775, Boss INDUSTRIES 304067, Broderson 60094529 and 6 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Part Number
M085409
Country of Origin
United States
Body Diameter Maximum
216 mm (8.50 inch)
Rated Flow LR
18 m³/min (636 cfm)
Rated Flow HR
25 m³/min (883 cfm)
Price Type
E
Style
Style 3
Overall Length
614 mm (24.17 inch)
Inlet Clock Position
6
Inlet Diameter
76 mm (2.99 inch)
Outlet Diameter
76 mm (2.99 inch)
Body Length
508 mm (20.00 inch)
Rated Flow MR
25 m³/min (883 cfm)
Back Pressure Low-Range
25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range
51 mm Hg (2.01 inch Hg)
Back Pressure High-Range
51 mm Hg (2.01 inch Hg)
Attenuation LR
12 dBA
Attenuation HR
18 dBA
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Donaldson
|
M085409 | Order on request | £289.03 |
Cross References
AG CHEM EQUIPMENT
125159
AGCO
WR125159
ASTEC
AU109775
BOSS INDUSTRIES
304067
BRODERSON
60094529
DONALDSON
M085409
GROVE
7642100042
JLG
3220079
MI-JACK
33170039
NELSON
201562N
NEW HOLLAND
FF2391368
PERKINS GREAT LAKES
13000529
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
