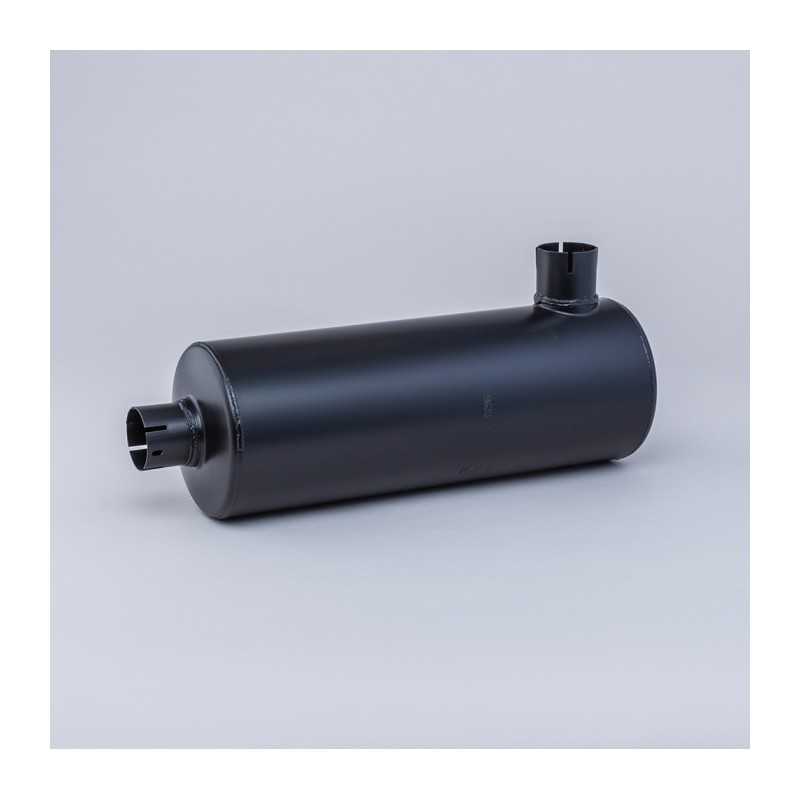

Donaldson M060481 MUFFLER ROUND STYLE 3
£227.52
VAT excluded
Average lead time 7-10 days
Description
The Donaldson M060481 is a filter, made in United States. It provides reliable filtration to protect the system from contaminants. It commonly replaces Boss INDUSTRIES 307577, Heavy DUTY MFG 31235, Nelson 201552N, Nelson 86190M, Replaced BY M060249. Supplied by Rico Europe with fast UK delivery.
Specifications
Part Number
M060481
Country of Origin
United States
Body Diameter Maximum
152 mm (5.98 inch)
Rated Flow LR
8 m³/min (283 cfm)
Rated Flow HR
11.1 m³/min (392 cfm)
Price Type
E
Style
Style 3
Overall Length
486 mm (19.13 inch)
Inlet Clock Position
6
Inlet Diameter
51 mm (2.01 inch)
Outlet Diameter
51 mm (2.01 inch)
Body Length
406 mm (15.98 inch)
Rated Flow MR
11.1 m³/min (392 cfm)
Back Pressure Low-Range
25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range
51 mm Hg (2.01 inch Hg)
Back Pressure High-Range
51 mm Hg (2.01 inch Hg)
Attenuation LR
12 dBA
Attenuation HR
18 dBA
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Donaldson
|
M060481 | Order on request | £227.52 |
Cross References
BOSS INDUSTRIES
307577
CASE-IH CNH
NM060481
DONALDSON
M060481
HEAVY DUTY MFG
31235
NELSON
201552N
86190M
REPLACED BY
M060249
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
