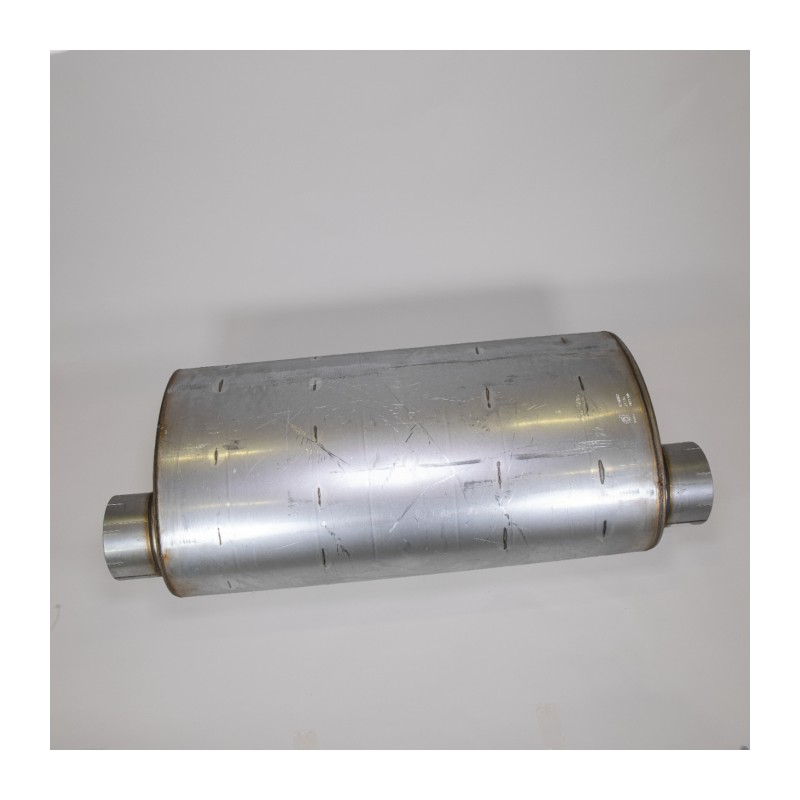

Donaldson M190002 MUFFLER OVAL STYLE 2

Data sheet

Part Number

M190002

Country of Origin

United States

Body Diameter Maximum

610 mm (24.02 inch)

Rated Flow LR

103.8 m³/min (3666 cfm)

Rated Flow HR

179.8 m³/min (6350 cfm)

Price Type

E

Style

Style 2

Overall Length

1448 mm (57.01 inch)

Inlet Clock Position

3

Inlet Diameter

203 mm (7.99 inch)

Outlet Diameter

203 mm (7.99 inch)

Body Length

1143 mm (45.00 inch)

Rated Flow MR

146.8 m³/min (5184 cfm)

Back Pressure Low-Range

25 mm Hg (0.98 inch Hg)

Back Pressure Mid-Range

51 mm Hg (2.01 inch Hg)

Back Pressure High-Range

76 mm Hg (2.99 inch Hg)

Attenuation LR

11 dBA

Attenuation HR

15 dBA

Body Diameter Minimum

406 mm (15.98 inch)

Specific References

MPN

M190002
