  • Donaldson M090074 MUFFLER ROUND STYLE 1

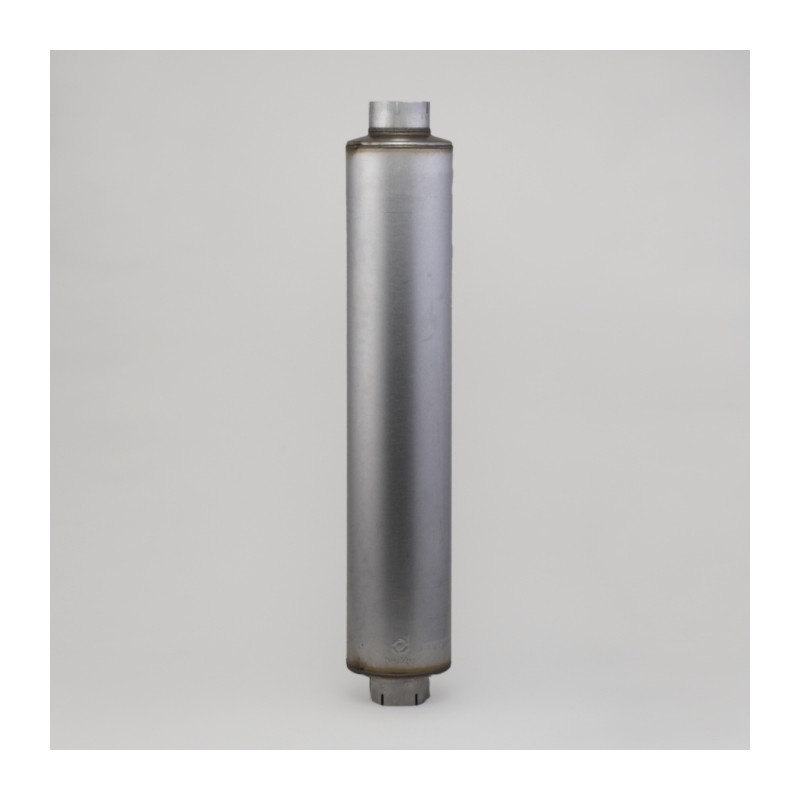

Donaldson M090074 MUFFLER ROUND STYLE 1

£222.09
VAT excluded
Quantity
closeAverage lead time 7-10 days if stock at manufacturer

Shipping fees

Prices Includes VAT if applicable



Secure payments



Fast Worldwide Delivery



Hassle Free Return Policy

M090074

Data sheet

Part Number
M090074
Country of Origin
United States
Body Diameter Maximum
229 mm (9.02 inch)
Rated Flow LR
47.2 m³/min (1667 cfm)
Rated Flow HR
81.7 m³/min (2885 cfm)
Price Type
E
Style
Style 1
Overall Length
1295 mm (50.98 inch)
Inlet Diameter
127 mm (5.00 inch)
Outlet Diameter
127 mm (5.00 inch)
Body Length
1129 mm (44.45 inch)
Rated Flow MR
66.7 m³/min (2355 cfm)
Back Pressure Low-Range
25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range
51 mm Hg (2.01 inch Hg)
Back Pressure High-Range
76 mm Hg (2.99 inch Hg)
Attenuation LR
13 dBA
Attenuation HR
18 dBA

Specific References

MPN
M090074
