OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

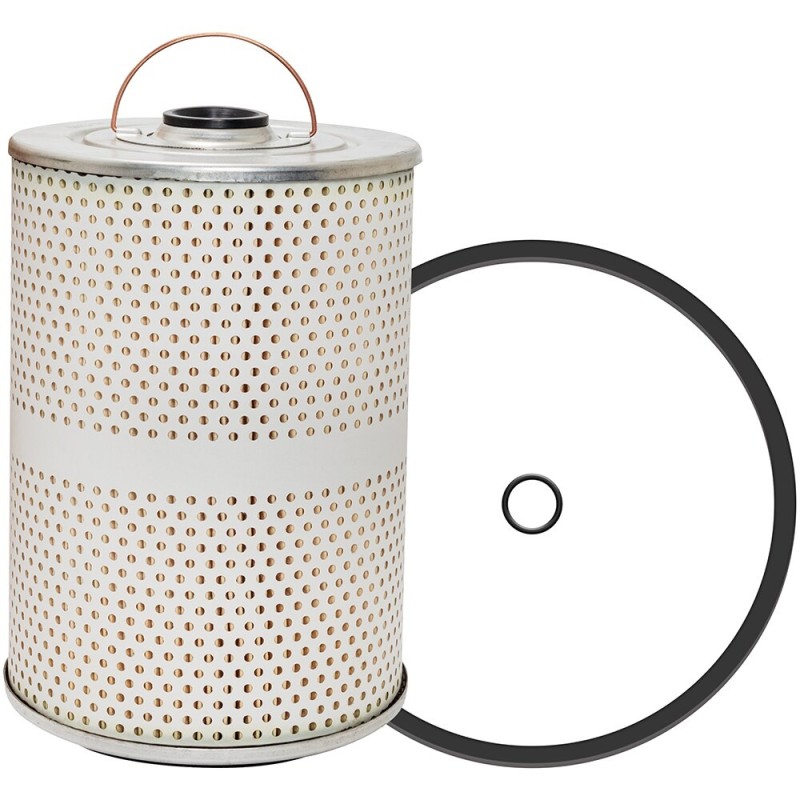

Baldwin PF316, Fuel/Water Separator Element with Bail Handle
£55.27
VAT excluded
Average lead time 7-10 days
Description
The Baldwin PF316 is a fuel/water separator, 222.3 mm long and 148.4 mm in diameter. It separates water and contaminants from the fuel, protecting the injection system from corrosion and wear. It commonly replaces Alliance ABP/N10GFS1201, Am GENERAL 11664669, American PARTS 95401, Carquest 86401, Caterpillar 2W4234 and 39 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
222.3 mm (8.75 inch)
Overall Diameter
148.4 mm (5.84 inch)
Internal Diameter
24.6 mm (0.97 inch)
Product Type
Fuel/Water Separator Element with Bail Handle
Outside Diameter
5 27/32 (148.4)
Inside Diameter
31/32 (24.6)
Gasket
Attached Gasket: [1] Attached; Furnished Gasket: ES1036
Application
Caterpillar, Cummins, Detroit Diesel, M.A.N. Engines; Grove Cranes
Compatible Competitor Part Number
Caterpillar 8N0205; Cummins 256559
Micron Rating
5 Nominal; 20 Absolute
Includes
Grommet: [2] Attached
O Ring
[1] Included
Available in these brands
Cross References
ALLIANCE
ABPN10GFS1201
AM GENERAL
11664669
AMERICAN PARTS
95401
BALDWIN
PF316
CARQUEST
86401
CATERPILLAR
2W4234
3I1169
8N0205
8N205
CUMMINS
256476
256559
3380431S
DONALDSON
FFP550316
P168279
P550316
EIMCO
4530173
FIAT
73125620
FLEETGUARD
256546S
FS1201
FLEETRITE
FSR81201
FORD
9576P550316
FRAM
CS7711
FREIGHTLINER
DNP550316
GRAINGER
2LAA1
GROVE
9437100235
HASTINGS PREMIUM FILTERS
FF939
HIFI
SN1201
KRALINATOR
FS746
LIEBHERR
7363710
7402111
LUBERFINER
LFF1201
MACK
5839FS1201
MARINE PERFORMANCE LINE
MPL3120
NAPA GOLD
3401
NATIONAL STOCK NUMBER
2910014110980
ORENSTEIN KOPPEL
960216
970216
POCLAIN
L1350593
L1650559
PRO FILTERS
CG316
PTPJM
J8621201
PUROLATOR
F55233
SAKURA
F5704
SF5704
SDMO
330560549
SF
SK3517
SISU
1273410200
SURE FILTER TECHNOLOGY
SFF1201
UNITED CENTRAL INDUSTRIAL SUPP
688416
VMC
FS550316
WALGAHN-MOTORENTECHN
811295
WISMET
WFU37232
WIX
33401
WOODGATE
WGFS1201
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| CAT | 3000-Series | 3176 B 3NL1-> | n/a | n/a | 3NL1-> | View |
| CAT | 3000-Series | 3176 B 9CK1-> | n/a | n/a | 9CK1->32765-> | View |
| CAT | 3000-Series | 3176 B 9WK1-> | n/a | n/a | 9WK1-> | View |
| CAT | 3000-Series | 3208 01Z-> | n/a | n/a | 01Z- | View |
| CAT | 3000-Series | 3208 78Z1-> | n/a | n/a | 78Z1-> | View |
| CAT | 3000-Series | 3408 C 1TS1-> | n/a | n/a | 1TS1-> | View |
| CAT | 3000-Series | 3408 C 78Z1-> | n/a | n/a | 78Z1-> | View |
| CAT | 3000-Series | 3408 C 99U1-> | n/a | n/a | 99U1-> | View |
| CAT | 3000-Series | 3408 C TAM1-> | n/a | n/a | TAM1-> | View |
| CAT | 3000-Series | 3412 D REA1-> | n/a | n/a | REA1-> | View |
| CAT | C-Series | C 10 | n/a | n/a | 2PN1-> | View |
| LIEBHERR | PR-Series | PR 751 | Cummins KT1150C | n/a | 0138-> | View |
Baldwin PF316 fuel/water separator, 222.3 mm long × 148.4 mm diameter. Replaces Alliance ABP/N10GFS1201, Am GENERAL 11664669, American PARTS 95401 and more. In stock at Rico Europe.
