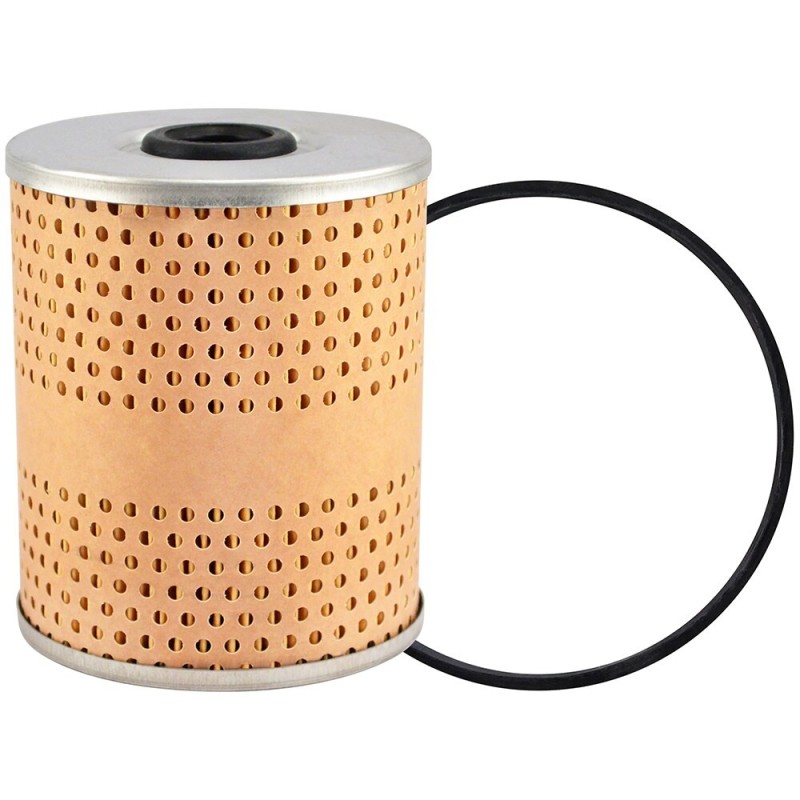

Baldwin PF814, Fuel Filter Element
£19.40
VAT excluded
Average lead time 7-10 days
Description
The Baldwin PF814 is a fuel filter, 106.4 mm long and 87.3 mm in diameter. It removes dirt and water from the fuel supply to protect injectors and the fuel system. It commonly replaces Acdelco TP543, American PARTS 530, American PARTS 95143, Aplockheed 574398, Aplockheed FG398 and 70 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
4 3/16 (106.4)
Product Type
Fuel Element
Outside Diameter
3 7/16 (87.3)
Inside Diameter
23/32 (18.3) One End
Gasket
Furnished Gasket: [1] Included; Optional Gasket: G406
Application
John Deere Equipment
Compatible Competitor Part Number
John Deere AR28611R, AR44077
Micron Rating
4 Nominal; 15 Absolute
Includes
Grommet: [1] Attached
Available in these brands
Cross References
ACDELCO
TP543
AMERICAN PARTS
530
95143
APLOCKHEED
574398
FG398
BALDWIN
PF814
BIG A FILTER
508
CARQUEST
86143
CATERPILLAR
3I1581
CHAMPION LABORATORIES
L1168F
CONTINENTAL
PC1168
COOP
FF61
COOPERS
G568
CROSLAND
565
CUMMINS
252415
CYCLONE
PM199
DELUXE
243
FF243
DIEXA
DXC61
DONALDSON
P550098
P551748
P779274
FAMEL
FC61
FILT
G1049
FLEETGUARD
FF130
FLEETRITE
FFR8130
FRAM
C1168PL
GENERAL MOTORS CORP
5574748
6438936
6438937
GONHER
G1168
G1168M
GOULD
P199
GRAINGER
4ZGK5
HASTINGS PREMIUM FILTERS
FF969
HIFI
SN40508
JOHN DEERE
AP411R
AR28610R
AR28611R
AR28810
AR344R
AR411R
AR41689
AR44077
AR45678
AR471R
AT44077
KRALINATOR
F888
LUBERFINER
L344F
MICRO PORE
PM1168
MOBIL
MTC61
MOPAR
L108
MOTORCRAFT
FD191
FL191
NAPA GOLD
3143
NELSONWINSLOW
WJD344R
PBR
AG3068
PERRY
PF243
PUROLATOR
F50061
MF101A
MFF101A
P61
REFILCO
AR471M
ROLPAK
JDR344
JDRQ344
RYCO
R410P
SAVARA
92053917
SF
SK3434
STAY READY
SRPJD344
WESTERN TOOL CO
P344
WGB
S163CP
WINSLOW
W1D344R
WCJD344R
WISMET
WFU37144
WIX
33143
CW143MP
WOODGATE
WGF130
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| JOHN DEERE | 4000-Series | 4020 | n/a | n/a | n/a | View |
