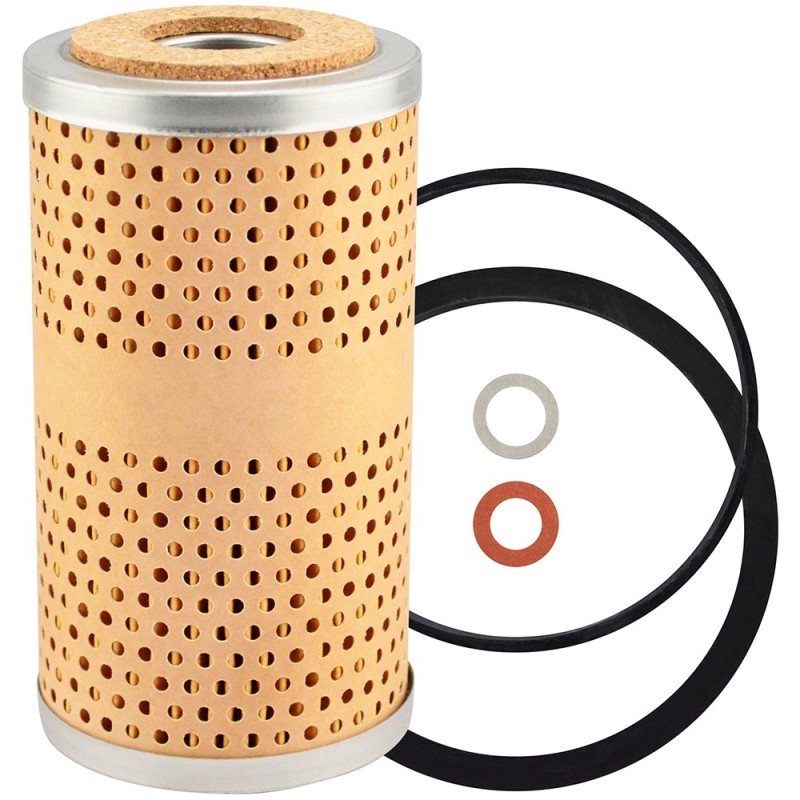

Baldwin PF916, Secondary Fuel or Hydraulic Filter Element
£12.08
VAT excluded
Average lead time 7-10 days
Description
The Baldwin PF916 is a hydraulic filter, 142.9 mm long and 76.2 mm in diameter. It removes contaminants from hydraulic oil to protect pumps, valves and cylinders. It commonly replaces Acdelco T72, Acdelco TP522, Acdelco TP555, Adams 5192854, Adams 5573482 and 314 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
142.9 mm (5.63 inch)
Overall Diameter
76.2 mm (3 inch)
Internal Diameter
27 mm (1.06 inch)
Product Type
Secondary Fuel or Hydraulic Element
Outside Diameter
3 (76.2)
Inside Diameter
1 1/16 (27.0)
Gasket
Attached Gasket: [2] Attached; Furnished Gasket: [4] Included; Optional Gasket: ES1032
Application
AgChem, Allis Chalmers, Case, Fiat-Allis, Kato, Vermeer Equipment; Detroit Diesel Engines; Thermo King Refrigeration Units
Compatible Competitor Part Number
Case 9980AB; Detroit Diesel 5192845
Micron Rating
9.8 Nominal; 27 Absolute
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Baldwin
|
PF916 | Order on request | £12.08 |
Cross References
ACDELCO
T72
TP522
TP555
ADAMS
5192854
5573482
AIR REFINER
PF106
ALLCAR
A909
ALLIS CHALMERS
227040
2270407
277040
277050
2770508
4055533
4055563
40555633
40555639
4347786
43477862
4347787
43477872
4347788
43477882
4352269
4352368
43523688
4353268
43532688
4353269
43532698
4353688
4377882
D53268
D53628
DE53268
M60511
AMERICAN PARTS
457
487
95073
95074
AP FILTERS
AP3415
APLOCKHEED
574403
AP3257
APF3257A
APF3415A
FG403
LK3415
APOLLO
L274F
ATLAS COPCO
5574961
9709007100
ATSA
ATL1174
BALDWIN
BF967
PF916
BIG A FILTER
545
BLAWKNOX
5574962
BOWSER BRIGGS
BP3022
BP3062
HY1306
HY1R306
BOWSERBRIGGS
BP306
BROS
E380087
CANCAR
23609
CARQUEST
86073
CARRIER TRANSICOLD
300013301
CASE
10283
10283AB
172475H1
175475H1
432417R91
9980AB
A19578
A31222
CASE IHC
175475R1
434871R91
998430R91
CATERPILLAR
9Y4409
CENEX
CO205
CHAMBERLAIN
14770
26902
CHAMPION LABORATORIES
262F1
274F
CLARK
945444
945624
CLARK EQUIPMENT
1592854
CLEAN FILTERS
MG024
COCKSHUTT
104952AS
156289AS
TF05126
TFO5126
COMMERCIAL
102151
10R6
11R6
12R6
13R6
15291
15416
15R6
193065
19371
19R6
19X641V
19X64YV
23395
8R6
B6
B614
B614B12D
B614BD
DDED6
E10R6
FB6
R10R6
R13R6
R19X62V
CONTINENTAL
PC1174
COOP
PL553A
COOPERS
AZF007
AZF059
G625
CROSLAND
329
534
CUMMINS
FF10
CYCLONE
PM291A
PMS328
DAGENHAM DIESEL
590E6007D
DELUXE
G89
DIEXA
DXC59
DXC65
DONALDSON
FFP550522
P550522
DYNAHOE
19261P
EATON
2021737
2999089
EIMCO
V9A89
VFA89
EUCLID
21029
9021029
FAMEL
FC711
FIAAM
FA4283
FIAT
70227040
70277050
74055533
74055563
74347786
74347787
74347788
74353268
74353269
FILCA
FC65
FILGA
FF631
FF65
FILT
G1025
FILTER CONTROL LTD
FCL721
FCL766
FILTER MEX
FM1174C
FISPA
FNP403
FLEETGUARD
FF106
FLOLINE
Q522
FORD
C2TZ9155C
C2TZ9365B
FRAM
110565
C1112
C1112FRAM
C1174APL
C1174PL
FRANKLIN
1500344
GALION
D86325
GENERAL MOTORS CORP
23519148
5182041
5182941
5192852
5192853
5197854
5198982
5573446
5573842
5574937
5575115
5577306
5578842
6438457
6438470
GIESSE
NH529
GM
5192845
GONHER
G1174
G1174M
G1174M6
GOULD
P167
P291
P291A
S326
S328
GRAINGER
2NUA8
GREYFRIARS
447F
GUARDIAN FILTER CO
G033073
G033074
GUD
G501
GUIOT
GC1174
HARMO
C1004
HASTINGS PREMIUM FILTERS
FF909
HEAVY DUTY AIR
A16015
HENGST
E81KPD137
HIFI
FE106
SN106
SN106A
SN4010
SN70124
HUTCHENS
F6
HYSTER
154495
157293
GA32157
INDUCONTROL
CPL1174
INGERSOLLRAND
35290543
6A32157
92092279
INTERSTATE
MF6300
JOHN DEERE
AR29586R
JOY
5194218
KNECHT
EH324
EH3240
KRALINATOR
F765
F767
LEDERER
6426987
LETOURNEAUMARATHON
SV1282
TV1469
M FILTER
MP519
MP519F
MANN
H8221
MANN AND HUMMEL
6640355216
MANN HUMMEL
H8221X
MANN-FILTER
6640355116
MARINE PERFORMANCE LINE
MPL398
MASSEY FERGUSON
1003879
1015840
1015840M1
1015840M91
835787
835787M91
AM043912
MICRO PORE
PM1174
MIGHTY
FC59
MOBIL
MCC59
MCC65
MOPAR
L11
L20
MOTORCRAFT
FD148
FD30
FG30
FL148
MULTIHOE
1695P
NAPA GOLD
3073
NELSON
86117F
88200A
NELSONWINSLOW
F6300
FX6300
WT553
WTP522
OLIVER
104976AS
7HA5351B
ONAN
1490855
149855
ORENSTEIN KOPPEL
102606
PBR
AG3019
PERRY
PF205
PURFLUX
C426
PUROLATOR
582551
58485
6674293
F50065
PF65
T59P
REFILCO
T553
TP522M
RICHIER
552442388
RYCO
R2106
R2106P
R413
R430
SAKURA
F6505
SAVARA
920531
92053117
92099617
SF
SK3525
SK3966
SO4306
SOPARIS
CANP185
STAY READY
SRP1112
SRP1174
TECFIL
P854
PC854
TECNOCAR
N1174
THERMO KING
112230
122230
THERMO-KING
1112230
THERMOKING
DEC30
NOV30
TIMBERJACK
403104
8403104
TOWMOTOR
776725
UFI FILTERS
2662900
UNITED ENGINE LIFE
AT553
EC631
EC632
VERMEER
3453003
VOLVO
892973
M12000109
WESTERN TOOL CO
P522
WGB
S102CP
WHITE
104159A
TF9939
WINSLOW
630O
WISMET
WFU37240
WFU37595
WITTE
10029
10171
47310029
47313644
47317384
47317428
WIX
33073
CW74
CW74MP
WOODGATE
WGF106
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| BELARUS | 1. | 1000 | D240/ D245 | n/a | n/a | View |
| BELARUS | 1. | 1020 | D240/ D245 | n/a | n/a | View |
| BELARUS | 1. | 1507 | CMD63 | n/a | n/a | View |
| BELARUS | 1. | 255 | D120 | n/a | n/a | View |
| BELARUS | 1. | 355 | D120 | n/a | n/a | View |
| BELARUS | 1. | 415 | D144/ D144.28 | n/a | n/a | View |
| BELARUS | 1. | 455 | D144/ D144.28 | n/a | n/a | View |
| BELARUS | 1. | 465 | D144/ D144.28 | n/a | n/a | View |
| BELARUS | 1. | 550 | D50/ D 60 | n/a | n/a | View |
| BELARUS | 1. | 552 | D50/ D 60 | n/a | n/a | View |
| BELARUS | 1. | 560 | D50/ D 60 | n/a | n/a | View |
| BELARUS | 1. | 562 | D50/ D 60 | n/a | n/a | View |
| BELARUS | 1. | 800 | D240 | n/a | n/a | View |
| BELARUS | 1. | 820 | D240 | n/a | n/a | View |
| BOMAG | BW-Series | BW 210 (A) | GMC | n/a | n/a | View |
| BUCYRUS | 1. | 22 RB1 CD | Detroit | n/a | n/a | View |
| BUCYRUS | 1. | 25 SC | Detroit | n/a | n/a | View |
| BUCYRUS | 1. | 30 RBH | Detroit | n/a | n/a | View |
| BUCYRUS | 1. | 38 RB | Detroit | n/a | n/a | View |
| CEMET AGRIP | SM-Series | SM 348 | n/a | n/a | n/a | View |
| DETROIT | 1. | 2071 | n/a | n/a | n/a | View |
| DETROIT | 1. | 3071 | n/a | n/a | n/a | View |
| DETROIT | 1. | 3072 | n/a | n/a | n/a | View |
| DETROIT | 1. | 4071 | n/a | n/a | n/a | View |
| DETROIT | 1. | 4086 | n/a | n/a | n/a | View |
| DETROIT | 1. | 4087 | n/a | n/a | n/a | View |
| DETROIT | 1. | 6071 | n/a | n/a | n/a | View |
| DETROIT | 1. | 6072 | n/a | n/a | n/a | View |
| FRANKLIN | 1. | 142 A/XL | GM 4.53 | n/a | n/a | View |
| FRANKLIN | 1. | 170 XLN | GM 4.53 | n/a | n/a | View |
| GALION | GC-Series | GC 9617 | GM | n/a | n/a | View |
| GRADALL | G-Series | G 1000 | GM | n/a | n/a | View |
| GRADALL | G-Series | G 1000 (TM) | GM-DIESEL | n/a | n/a | View |
| GRADALL | G-Series | G 600 | GM-DIESEL | n/a | n/a | View |
| GRADALL | G-Series | G 660 | GM-DIESEL | n/a | n/a | View |
| GRADALL | G-Series | G 800 | GM-DIESEL | n/a | n/a | View |
| GRADALL | G-Series | G 880 | GM | n/a | n/a | View |
| GRADALL | G-Series | G 880 (CR.TM) | GM-DIESEL | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 225 A | Detroit 3-53N | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 225 C | Detroit 3-53 | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 225 D | Detroit 3-53 | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 308 | G.M. | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 380 | G.M. | n/a | n/a | View |
| LIEBHERR | A/R-Series | R 942 (LC) | GB | n/a | n/a | View |
| PH | OMEGA-Series | OMEGA 18 | Detroit 4-53N | n/a | n/a | View |
| ROADPACKER | ROADPACKER | ROADPACKER | GM | n/a | n/a | View |
| TIMBERJACK | 1. | 308 | GM | n/a | n/a | View |
| TIMBERJACK | 1. | 380 | GM | n/a | n/a | View |
Baldwin PF916 hydraulic filter, 142.9 mm long × 76.2 mm diameter. Replaces Acdelco T72, Acdelco TP522, Acdelco TP555 and more. In stock at Rico Europe.
