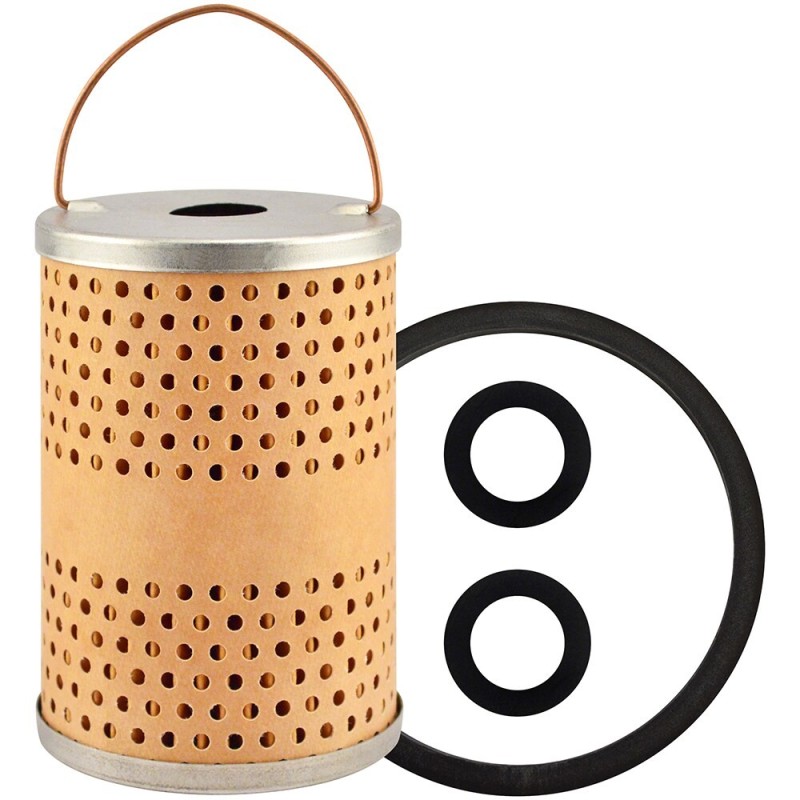

Baldwin PF946, Secondary Fuel Filter Element with Bail Handle
£12.01
VAT excluded
Average lead time 7-10 days
Description
The Baldwin PF946 is a fuel filter, 103.2 mm long and 73 mm in diameter. It removes dirt and water from the fuel supply to protect injectors and the fuel system. It commonly replaces Acdelco TP631, Allis CHALMERS 138267, Allis CHALMERS 4048796, Allis CHALMERS 40487969, Allis CHALMERS 4508848 and 57 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
103.2 mm (4.06 inch)
Overall Diameter
73 mm (2.87 inch)
Internal Diameter
19 mm (0.75 inch)
Product Type
Secondary Fuel Element with Bail Handle
Outside Diameter
2 7/8 (73.0)
Inside Diameter
3/4 (19.0) & 13/16 (20.6)
Gasket
Furnished Gasket: [3] Included
Application
Allis Chalmers, Ingersoll-Rand, International Equipment
Compatible Competitor Part Number
Allis Chalmers 138267; International 367378-R91
Micron Rating
9.8 Nominal; 27 Absolute
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Baldwin
|
PF946 | Order on request | £12.01 |
Cross References
ACDELCO
TP631
ALLIS CHALMERS
138267
4048796
40487969
4508848
AMERICAN PARTS
486
95101
BALDWIN
PF946
CARQUEST
86101
CASE
367389R91
367398R91
CASE IHC
367378R91
CHAMPION LABORATORIES
143F
COOP
FF1100
PM255
DELUXE
252
FF252
DONALDSON
P779312
FIAAM
FA4613
FIAT
70138267
74048796
7409796
74508848
FILT
G1033
FLEETGUARD
FF248
FLEETRITE
FFR8248
FRAM
C1101PL
F1101PL
GENERAL MOTORS CORP
6436407
GOULD
P255
GRAINGER
4ZFY9
GUD
G614
HASTINGS PREMIUM FILTERS
FF920
JOHN DEERE
AT10213
ATY1021313
KRALINATOR
F562
L562
LUBERFINER
L143F
MOPAR
L112
MOTORCRAFT
FD57
FG57
NAPA GOLD
3101
NATIONAL STOCK NUMBER
2910000157071
NELSONWINSLOW
WFC1101PL
ONAN
1490744
PERRY
PF252
PUROLATOR
EP1431
REFILCO
C1101M
RYCO
R2096P
SAVARA
92099217
SCHRAMM
DOUH2299A
DRMG200F111PL
F111PL
OOUH2295
TOWMOTOR
632314
UFI FILTERS
2665000
WESTERN TOOL CO
P1101
WGB
S172CP
WINSLOW
WF1101PL
WFX1101PL
WIX
33101
CW1101MP
WOODGATE
WGF248
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Baldwin PF946 fuel filter, 103.2 mm long × 73 mm diameter. Replaces Acdelco TP631, Allis CHALMERS 138267, Allis CHALMERS 4048796 and more. In stock at Rico Europe.
