OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

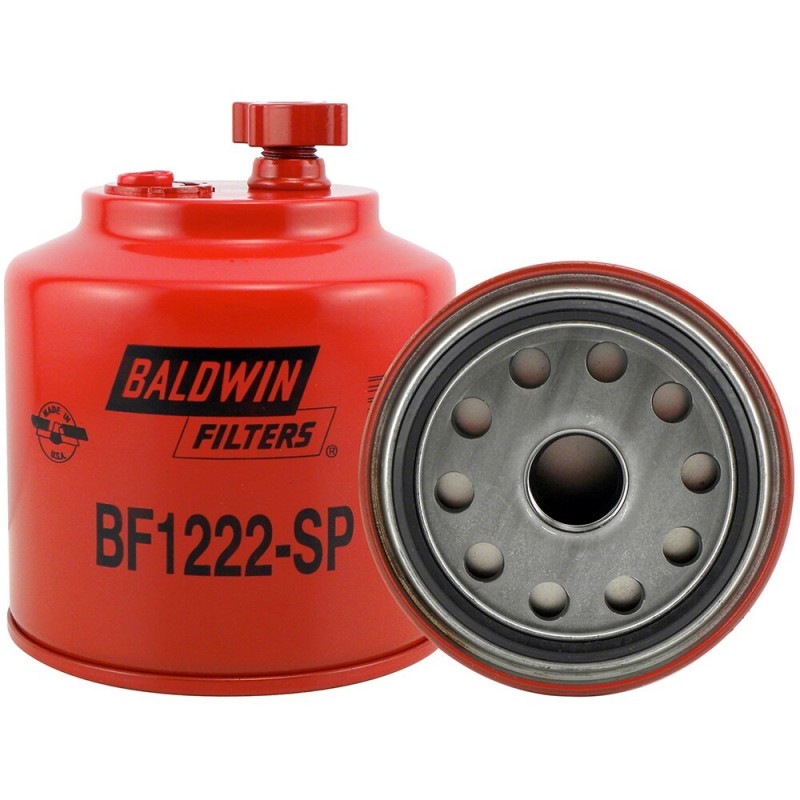

Baldwin BF1222-SP, Fuel/Water Separator Filter Spin-on with Drain and Sensor Port
£37.93
VAT excluded
Average lead time 7-10 days
Description
The Baldwin BF1222-SP is a fuel/water separator, 133.4 mm long and 108.7 mm in diameter. It separates water and contaminants from the fuel, protecting the injection system from corrosion and wear. It commonly replaces Big A FILTER 95617, Carquest 86617, Caterpillar 3I1210, Caterpillar 3I1672, Champion LABORATORIES LFF5824U and 21 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
133.4 mm (5.25 inch)
Overall Diameter
108.7 mm (4.28 inch)
Thread
1-14
Contains
Integral Post Seal; Sensor Port Thread: 7/16-20
Related To
BF1222 (with Drain);BF1222-O (with Open Port)
Product Type
Fuel/Water Separator Spin-on with Drain and Sensor Port
Outside Diameter
4 9/32 (108.7)
Gasket
Attached Gasket: [1] Included; Furnished Gasket: [1] Included
Application
Ford Engines
Compatible Competitor Part Number
Ford E8TZ-9N184-A
Micron Rating
4 Nominal; 20 Absolute
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Baldwin
|
BF1222-SP | Order on request | £37.93 |
Cross References
BALDWIN
BF1222SP
BIG A FILTER
95617
CARQUEST
86617
CATERPILLAR
3I1210
3I1672
CHAMPION LABORATORIES
LFF5824U
FLEETRITE
FFR85151
FORD MOTOR CO
E8TZ9N184A
FRAM
PS8132
GENERAL MOTORS CORP
25014578
GRAINGER
2KZX9
HASTINGS PREMIUM FILTERS
FF1039SP
IHC INTERNATIONAL HARVESTER
1813104C91
1816568C91
KRALINATOR
FS242
FS242R
LUBERFINER
LFF22058
MIGHTY
FD829
NAPA GOLD
3617
PARTS MASTER
73617
RACOR
INF829B
R42
SERVICE CHAMP
54067
UNIFILTER FILTROS
R42A
WIX
33217MP
33617
WOODGATE
WGFS1278
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Baldwin BF1222-SP fuel/water separator, 133.4 mm long × 108.7 mm diameter. Replaces Big A FILTER 95617, Carquest 86617, Caterpillar 3I1210 and more. In stock at Rico Europe.
