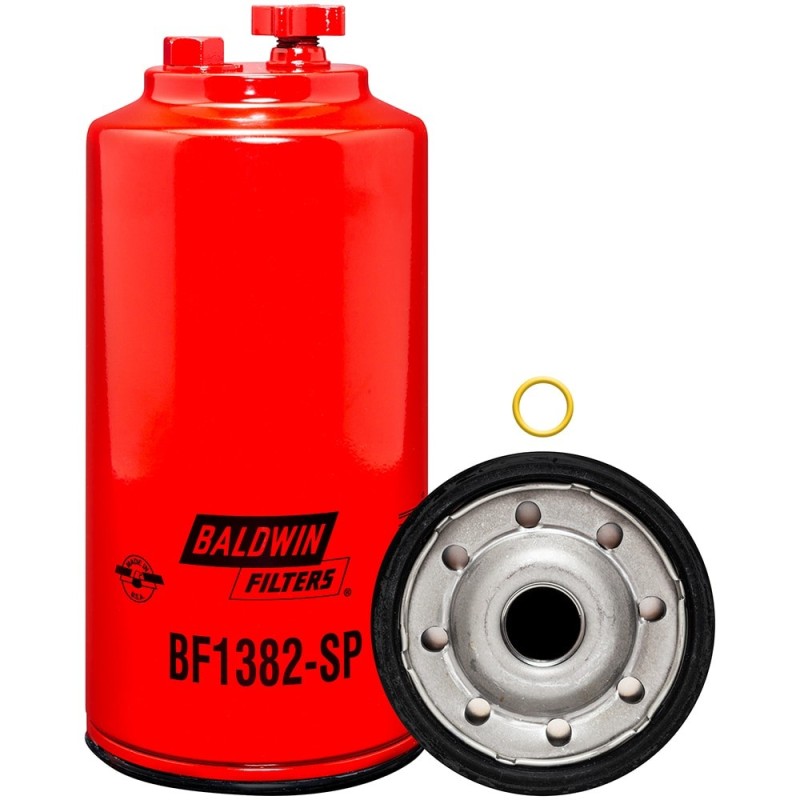

Baldwin BF1382-SP, Fuel/Water Separator Filter Spin-on with Drain and Sensor Port
search
  • Baldwin BF1382-SP, Fuel/Water Separator Filter Spin-on with Drain and Sensor Port
OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

Baldwin BF1382-SP, Fuel/Water Separator Filter Spin-on with Drain and Sensor Port

2 In stock SKU: BF1382-SP
£57.00
VAT excluded Delivered within 1-2 Days
Quantity

Description

The Baldwin BF1382-SP is a fuel/water separator, 238.1 mm long and 108 mm in diameter. It separates water and contaminants from the fuel, protecting the injection system from corrosion and wear. It commonly replaces Agco CH1R0771, Bauer MASCHINEN 413554, BUSSE & KUNTZE STK201, Carquest 86789, Caterpillar 1R0771 and 16 other references. Supplied by Rico Europe with fast UK delivery.

Specifications

Length 9 3/8 (238.1)
Thread 1-14
Contains Sensor Port Thread: 9/16-18
Product Type Fuel/Water Separator Spin-on with Drain and Sensor Port
Outside Diameter 4 1/4 (108.0)
Gasket Integral Gasket: [1] Included
Application Challenger Tractors
Compatible Competitor Part Number Caterpillar 1R0771
Micron Rating 10 Absolute
O Ring [1] Included

Available in these brands

Brand Reference Availability Price
Baldwin
BF1382-SP 2 In stock £57.00
Donaldson
P551010 9 In stock £43.21
SF
SK3137/1 Order on request £41.06

Cross References

AGCO
CH1R0771
BALDWIN
BF1382SP
BF1397
BF9903SP
BAUER MASCHINEN
413554
BUCYRUS
V012938
BUSSE & KUNTZE
STK200
STK201
CARQUEST
86607
86789
CATERPILLAR
1R0771
4238521
CHINA LOCAL
STCX769A
STCX769B
STCX770
STCX771A
STCX771B
DONALDSON
P551010
X770699
ECO-LOG
7022389
FILTRATION
FTF2692
FLEETGUARD
FS19995
FS20007
FRAM
PS11024
GIPOREC
GP16506
GRAINGER
4ZRV8
HIFI
SN55432
SN55435
SN55437
SN55438B
KOMPTECH
930120133
KUHN
SEB083176
LUBERFINER
LFF6771
NAPA GOLD
3607
3789
RE FILTERS
RF1065
SANDVIK
30555051
503463
9120287
SF
SK3137/1
SK31371
WISMET
WFU23744
WFU37093
WIX
33607
33789
533789

RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.

Machine Details

Manufacturer Series Model Engine Year Serial
ASTRADEC 1. AFFINEUR Cat C9 n/a n/a View
ATLAS COPCO ROC-Series ROC D 9 C Cat C7 2010-> n/a View
ATLAS COPCO ROC-Series ROC F 9 TH/CR Cat C9TIERIII n/a n/a View
ATLAS COPCO XR/XRS/XRVS-Series XRVS 476 CD Cat C13 ACERT T13 n/a n/a View
ATLAS COPCO XRH/XRHS-Series XRHS 566 Cat C18 2007-> n/a View
ATLAS COPCO XRXS-Series XRXS 566 Cat C18 (575PS/HP) n/a n/a View
ATLAS COPCO XRXS-Series XRXS 566 CD Cat C18 n/a n/a View
ATLAS COPCO XRYS-Series XRYS 577 Cat C18ACERT 2012-> n/a View
ATLAS COPCO XRYS-Series XRYS 577 CD Cat. C18 2010 n/a View
BANDIT 1. 3680 BEAST Cat 3406 n/a n/a View
BAUER MASCHINEN GMBH BG-Series BG 20 Cat C7 n/a n/a View
BAUER MASCHINEN GMBH BG-Series BG 24 Cat C9 n/a n/a View
BAUER MASCHINEN GMBH BG-Series BG 24 Cat C11 n/a n/a View
BAUER MASCHINEN GMBH BG-Series BG 24H Cat n/a n/a View
BAUER MASCHINEN GMBH BG-Series BG 28 Cat n/a n/a View
BAUER MASCHINEN GMBH BG-Series BG 36 Cat n/a n/a View
BAUER MASCHINEN GMBH BG-Series BG 40 Cat n/a n/a View
BAUER MASCHINEN GMBH RG-Series RTG RG 16 T Cat C 18 / WRH 05418 n/a n/a View
BAUER MASCHINEN GMBH RG-Series RTG RG 21 T Cat C 18 / WJH 05572 n/a n/a View
CAT 100-Series 140 M2 Cat n/a n/a View
CAT 300-Series 336 E/EL Cat C9 n/a n/a View
CAT 300-Series 345 D Cat C13 n/a RGG- View
CAT 300-Series 345 DL ME Cat C13 2009 n/a View
CAT 300-Series 349 E Cat C13 n/a KFX00-> View
CAT 300-Series 349 EL n/a n/a n/a View
CAT 300-Series 365 C Cat C15 ACERT 2009 n/a View
CAT 700-Series 730 C n/a n/a n/a View
CAT 800-Series 836 H Cat n/a BXD264-> View
CAT 900-Series 930 HZ Cat C6.6ACERT 2008-> CXK1-> DHC1-> View
CAT 900-Series 966 K Cat C9.3 2014 NGX- View
CAT 900-Series 966 K Cat C9.3 2010-> PBG- View
CAT 900-Series 966 M Cat 2014 NGX00-> View
CAT 900-Series 972 K n/a n/a n/a View
CAT 900-Series 980 K Cat C 13 ACERT n/a n/a View
CAT C-Series C 11 n/a n/a n/a View
CAT C-Series C 18 n/a n/a n/a View
CAT C-Series C 7 n/a n/a JRA1->/JTF1-> View
CAT CHALLENGER CHALLENGER MT 855B n/a n/a n/a View
CAT CHALLENGER CHALLENGER MT 865B n/a n/a n/a View
CAT CHALLENGER CHALLENGER MT 875B n/a n/a n/a View
CAT D-Series D 10 N Cat n/a 3SK1->618 View
CAT D-Series D 10 N Cat n/a 2YD1294-> View
CAT D-Series D 10 N Cat n/a 2YD1->1293 View
CAT D-Series D 10 T Cat n/a RJG1->1839 View
CAT D-Series D 11 T Cat n/a GEB1/TPB1-> View
CAT D-Series D 11 T Cat n/a GEB1->386 View
CAT GRPE-Series GRPE ELECT C 18 n/a n/a n/a View
CHALLENGER MT-Series MT 835 Cat n/a n/a View
CHALLENGER MT-Series MT 835 B Cat n/a n/a View
CHALLENGER MT-Series MT 845 Cat n/a n/a View
CHALLENGER MT-Series MT 845 B Cat n/a n/a View
CHALLENGER MT-Series MT 855 Cat n/a n/a View
CHALLENGER MT-Series MT 855 B Cat C18 2007-> n/a View
CHALLENGER MT-Series MT 865 Cat n/a n/a View
CHALLENGER MT-Series MT 865 B Cat C18 2007-> n/a View
CHALLENGER MT-Series MT 875 B Cat C18 2007-> n/a View
CLAAS LEXION LEXION 660 Cat 2013-> n/a View
CLAAS LEXION LEXION 670 Cat C9.3ACERT 2014 n/a View
CLAAS LEXION LEXION 760 Cat C13 ACERT 2013 n/a View
DELMAG RH-Series RH 22 Cat n/a n/a View
DELMAG RH-Series RH 32 Cat n/a n/a View
DOOSAN 1. 25/330 Cat C15 2011-> n/a View
ECO LOG 1. 590 C Cat C 9 ACERT n/a n/a View
EVERDIGM T-Series T 450 Cat C7 n/a n/a View
EXTEC C-Series C 12 PLUS Cat C9 2008-> n/a View
EXTEC IC-Series IC 13 Cat 2009-> n/a View
FINLAY I-Series I 110 RS Cat C9 n/a n/a View
FINLAY I-Series I 130 Cat C13 2011 n/a View
FINLAY TEREX I-Series I 110 RS Cat C9 n/a n/a View
FINLAY TEREX I-Series I 130 Cat C13 n/a n/a View
FINTEC 1. 1107 Cat C9 2007 n/a View
FINTEC F-Series F 1440 Cat C13 TIER III n/a n/a View
FURUKAWA HCR-Series HCR 1500 ED II Cat C9 2009-> n/a View
GIPO KOMBI KOMBI Cat n/a n/a View
GIPO R-Series R 100 FDR Cat C9 n/a n/a View
GIPO R-Series R 131 FRD GIGA Cat C13 n/a n/a View
GIPO RC-Series RC 130 C/FRD Cat C 15 n/a n/a View
GIPO RC-Series RC 131 C Cat C15 ACERT 2014 n/a View
GOMACO COMMANDER COMMANDER III Cat C7 n/a n/a View
HAMMEL NZS-Series NZS 700 D Cat C9 n/a n/a View
HAMMEL VB-Series VB 750 B Cat C9.3 2013 n/a View
HAMMEL VB-Series VB 750D Cat C9 n/a n/a View
HAMMEL VB-Series VB 950 DK Cat n/a n/a View
HARTL PC-Series PC 1265 J Cat C9 n/a n/a View
HEINOLA 1. 1310 E Cat C18 n/a n/a View
INGERSOLL RAND 25-Series 25.300 Cat C15 n/a n/a View
INGERSOLL RAND ECM-Series ECM 720 Cat n/a n/a View
INGERSOLL RAND XP/XHP-Series XHP 1070 WCAT Cat C15 2011-> n/a View
INGERSOLL RAND XP/XHP-Series XHP 1170 Cat n/a n/a View
INGERSOLL RAND XP/XHP-Series XHP 1170 XCAT Cat C15 2011-> n/a View
INNOCRUSH 1. 35 Cat C11 n/a n/a View
INNOCRUSH 1. INNOCRUSH 35 Cat C11 n/a n/a View
KAESER MOBILAIR-Series M 500-2 Cat C18 2013-> n/a View
KOMPTECH AHWI-Series AHWI RT 800 Cat C18 2013 n/a View
KOMPTECH CRAMBO-Series CRAMBO 3400 Cat C9EU3 n/a n/a View
KOMPTECH CRAMBO-Series CRAMBO 5200 Cat C13 ACERT n/a n/a View
KOMPTECH TERMINATOR-Series TERMINATOR 5000 S Cat C13 2009-> n/a View
KOMPTECH TERMINATOR-Series TERMINATOR 6000 Cat C18 n/a n/a View
LLAMADA P-Series P 160 TT Cat C18 n/a n/a View
LLAMADA P-Series P 90 TT Cat C7 n/a n/a View
MC CLOSKEY INT. C-Series C 38 Cat C9 2015 n/a View
MC CLOSKEY INT. J-Series J 50 Cat C9 2015 n/a View
METSO LOKOTRACK-Series LT 105 Cat 2007-> n/a View
METSO LOKOTRACK-Series LT 106 Cat C 9.3 n/a n/a View
METSO LOKOTRACK-Series LT 1110 S Cat n/a n/a View
METSO LOKOTRACK-Series LT 1213 Cat C13 2008-> n/a View
METSO LOKOTRACK-Series LT 1913 Cat C13 n/a n/a View
METSO LOKOTRACK-Series LT 200 Cat C13 n/a n/a View
METSO LOKOTRACK-Series LT 300 HP Cat C 15 n/a n/a View
MOROOKA MST-Series MST 2200 Cat C 7 n/a n/a View
NORDBERG LT-Series LT 105 Cat 2007-> n/a View
NORDBERG LT-Series LT 106 Cat C9ACERT n/a n/a View
NORDBERG LT-Series LT 1110 S Cat 2012 n/a View
NORDBERG LT-Series LT 1213 Cat C13 2008-> n/a View
NORDBERG LT-Series LT 1213 S Cat C13 2016 n/a View
NORDBERG LT-Series LT 1913 Cat C13 n/a n/a View
NORDBERG LT-Series LT 200 Cat C13 2007-> n/a View
NORDBERG LT-Series LT 300 HP Cat C15 n/a n/a View
PEGSON 1. 400 XA Cat C9 2008-> n/a View
PLAISANCE EQPT VARIOTRAC-Series VARIOTRAC 500 Cat C13 n/a n/a View
POWER SCREEN XH XH 320 SR Cat C13 n/a n/a View
POWER SCREEN XH XH 500 Cat C13 n/a n/a View
POWERSCREEN XH-Series XH 320 SR Cat C13 n/a n/a View
POWERSCREEN XH-Series XH 500 Cat C13 n/a n/a View
PRINOTH NEW-Series NEW BISON X/XP Cat C9.3ACERT 2016 n/a View
PTC 1. 30 HFV Cat C15 TIERIII n/a n/a View
PVE PILLING 1. 90 DR/VR Cat C18 n/a n/a View
REV GCS-Series GCS 109 Cat C9ACERT 2007-> n/a View
RIVARD RIV-Series RIV 253 Cat C7 n/a n/a View
RIVARD RIV-Series RIV 500 Cat 3406 n/a n/a View
ROCKSTER R-Series R 900 S Cat 2012-> n/a View
ROTOCHOPPER B-Series B 66 T Cat C18 n/a n/a View
SANDVIK DI-Series DI 550 Cat C13 2013-> n/a View
SANDVIK QH-Series QH 331 Cat C9 2012 n/a View
SANDVIK QI-Series QI 240 Cat C9.3TIER3A n/a n/a View
SANDVIK QI-Series QI 430 Cat C13 TIER III n/a n/a View
SANDVIK QI-Series QI 441 Cat C13 TIER III n/a n/a View
SANDVIK QJ-Series QJ 330 Cat n/a n/a View
SANDVIK QJ-Series QJ 331 Cat n/a n/a View
SANDVIK QJ-Series QJ 340 Cat C9 n/a n/a View
SENNEBOGEN 1. 2200 Cat n/a n/a View
SENNEBOGEN SR-Series SR 48BT (TYP 548R) Cat n/a n/a View
SULLAIR 1. 1150 XHH CAT Cat C15 n/a n/a View
SULLAIR 1. 900 XHH CAT Cat C15 n/a n/a View
TANA SHARK-Series SHARK 5430 Cat n/a n/a View
TEREX XR-Series XR 400S Cat C9 n/a n/a View
TM BOHRTECHNIK TMB-Series TMB 28 Cat n/a n/a View
WIRTGEN W-Series W 220 Cat n/a n/a View
WIRTGEN WR-Series WR 250 Cat n/a n/a View
