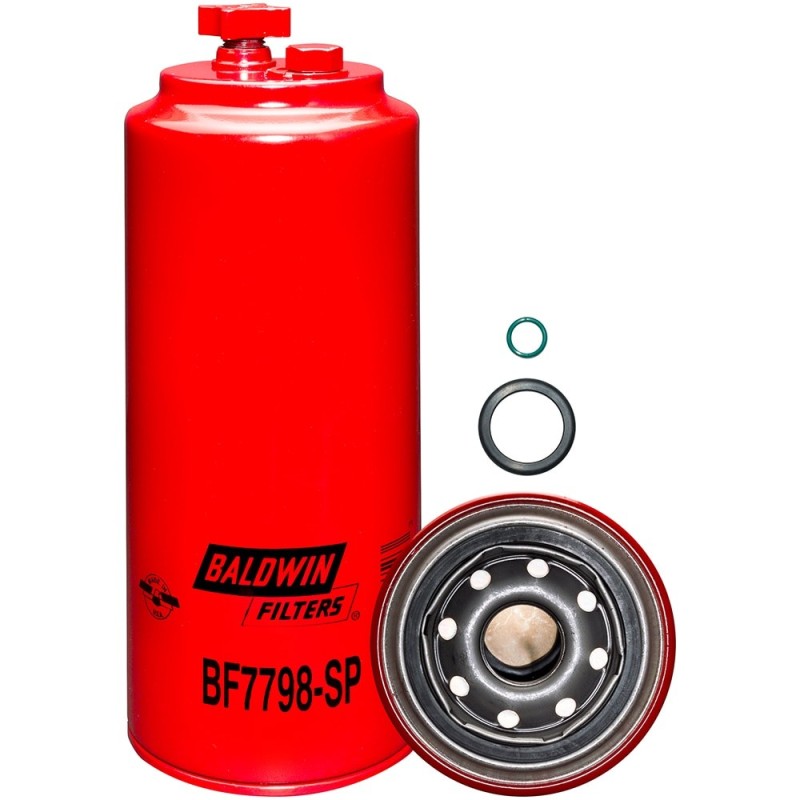

Baldwin BF7798-SP, Fuel/Water Separator Filter Spin-on with Drain and Sensor Port
£23.32
VAT excluded
Average lead time 7-10 days
Description
The Baldwin BF7798-SP is a fuel/water separator, 242.1 mm long and 93.7 mm in diameter. It separates water and contaminants from the fuel, protecting the injection system from corrosion and wear. It commonly replaces Carquest 86693, Carquest 86783, Caterpillar 1986378, Caterpillar 3L1305, Caterpillar 3L1312 and 14 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
9 17/32 (242.1)
Thread
1-14
Contains
Sensor Port Thread: 1/2-20
Related To
[BF1212 (Drain Version);BF7798-O (Open Port Version)
Product Type
Fuel/Water Separator Spin-on with Drain and Sensor Port
Outside Diameter
3 11/16 (93.7)
Gasket
Furnished Gasket: [1] Included; Integral Gasket: G401
Application
Caterpillar Engines
Compatible Competitor Part Number
Caterpillar 198-6378
Micron Rating
5 Absolute
O Ring
[1] Included
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Baldwin
|
BF7798-SP | Order on request | £23.32 |
Cross References
BALDWIN
BF7798SP
CARQUEST
86693
86783
CATERPILLAR
1986378
3L1305
3L1312
3L1365
3L1367
FLEETGUARD
FS19738
GRAINGER
4ENR6
HIFI
SN55110
LUBERFINER
LFF90013
LFF9013
NAPA GOLD
3693
3783
RACOR
S3201T
TEREX
6150533
WIX
33693
33783
533693
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| AUSTOFT | 1. | RECOLTEUSE CANNE A SUCRE | Cummins 6BTA5.9 | n/a | n/a | View |
| AUSTOFT | 1. | RECOLTEUSE CANNE A SUCRE | Cummins M11C330 | n/a | n/a | View |
| AUSTOFT | 1. | RECOLTEUSE CANNE A SUCRE | Iveco CURSOR10.3 | n/a | n/a | View |
| BOMAG | BW-Series | BW 213 PDH3 | Cummins 6BTA 5.9 | n/a | n/a | View |
| CASE | CX-Series | CX 75 SR | Isuzu 4JG1 NA | 2002-> | n/a | View |
| CAT | D-Series | D 6 N XL | Cat | n/a | n/a | View |
| COMPAIR-HOLMAN | 100-Series | 155-12 | Cat 3116TA | n/a | n/a | View |
| INGERSOLL RAND | VHP-Series | VHP 400 CAT | Cat 3116 | n/a | n/a | View |
| PONSSE | HS-Series | HS 10 COBRA | Cat | n/a | n/a | View |
| PONSSE | HS-Series | HS 16 ERGO | Cat | n/a | n/a | View |
| PONSSE | S-Series | S 16 BUFFALO | Cat | n/a | n/a | View |
| UNAC | 1. | 300 | Cat | n/a | n/a | View |
| UNAC | U-Series | U 774 | Cat | n/a | n/a | View |
| WIRTGEN | W-Series | W 1000 | Cat | n/a | <-577 | View |
| YANMAR MARINE | 1. | 4 BY 150 | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 4 BY 150 Z | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 4 BY 180 | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 4 BY 180 Z | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 4 BY2 150 | n/a | n/a | n/a | View |
| YANMAR MARINE | 1. | 4 BY2 150 Z | n/a | n/a | n/a | View |
| YANMAR MARINE | 1. | 4 BY2 180 | n/a | n/a | n/a | View |
| YANMAR MARINE | 1. | 4 BY2 180 Z | n/a | n/a | n/a | View |
| YANMAR MARINE | 1. | 6 BY 220 | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 6 BY 220 Z | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 6 BY 260 | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 6 BY 260 Z | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 6 BY2 220 | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 6 BY2 220 Z | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 6 BY2 260 | n/a | 2011-> | n/a | View |
| YANMAR MARINE | 1. | 6 BY2 260 Z | n/a | 2011-> | n/a | View |
