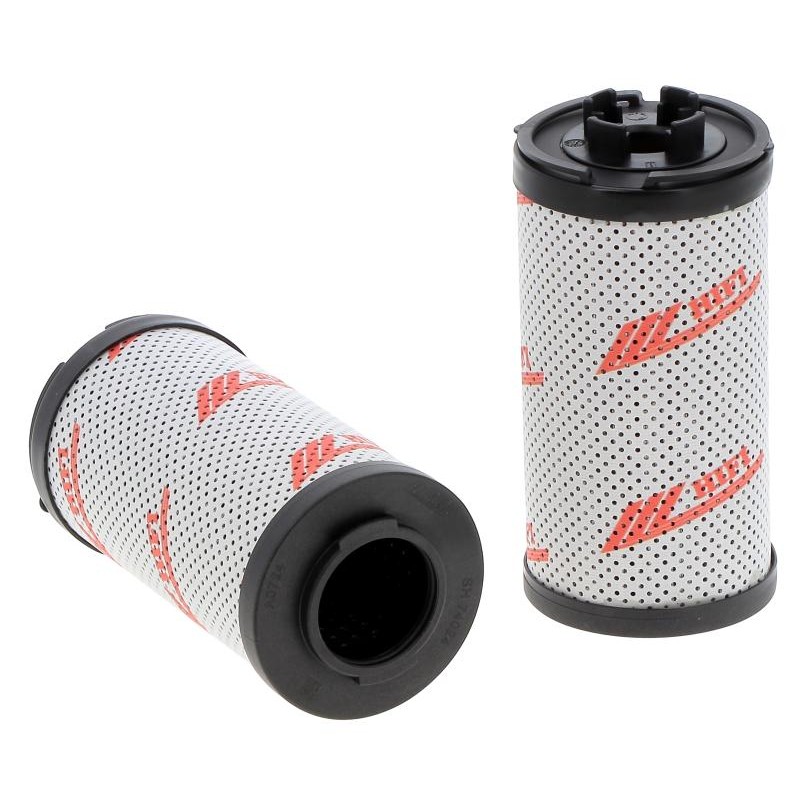

Hifi SH74024 HYDRAULIC FILTER
£80.37
VAT excluded
Average lead time 7-10 days
Description
The Hifi SH74024 is a hydraulic filter, 194 mm long and 95 mm in diameter. It removes contaminants from hydraulic oil to protect pumps, valves and cylinders. It commonly replaces Baldwin PT23061MPG, Beam 02106600HBAA, Bobcat 7290377, BUSSE & KUNTZE HE5078, Comex H0330RN10 and 49 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
194.0mm
Overall Diameter
95.0mm
Internal Diameter
56.0mm
Inside Diameter
48.0mm
Available in these brands
Cross References
AGCO
86491900
AIRFIL
AFPOVL27510
ARGO
R3101906
BALDWIN
PT23061MPG
BEAM
02106600BAA
02106600HBAA
BOBCAT
7290377
BUSSE KUNTZE
HE5078
CHARLATTE
HEFXX000025
CIMC-TIANDA
Y100004
COMEX
H0330RN10
H0330RN10NBR
CUKUROVA
C17C91
DONALDSON
DT0330R14UM
P170618
P566983
EPE
10330H10SL0006P
10330H10XL0006P
10330LAH10XL0006MX
10330LAH10XLA006M
30TR330P10
FAUN-FRISCH
99707308806
FAUNFRISCH
99707308806
FBO
HR33002
FILTRATION GROUP
76319412
H0330RN2010V30
FILTREC
RHR330G10B
FLEETGUARD
HF28658
FLUITEK
P0300773R81L
GEESINK
8526000
GRANIT
1006763263
GRIMME
B9203860
B9204264
HAULOTTE
2505001940
HIFI
SH74024
SH74024V
HYDAC
0330R010BN
0330R010BN2HCV
0330R010BN3HC
0330R010BN3HCV
0330R010BN4HC
0330R010BN4HCV
0330R010BNHC
0330R010BNHC2
0330R010BNHCV
0330R010ON
0330R010ONV
0330R010P
0330R010PHC
1262993
1262997
1263597
1263993
2067062
HYDAC CODE
01264618
245602
308245
HYDAC INTERN
1262993
1263597
1263993
HYPRO
HP33RNL812MB
IMPREFIL
IH1215
INTERNORMEN
020330R10VG30HCSP
300427
307302
JCB
32916900
LIEBHERR
10115168
LKT
5007620310
MAFI
0005499561
MAHLE
7893704
7893720
890015SMX10
MAHLEINDUSTRIE
890015SM10
MANN
HD1040
MDF
MDH8115
MECALAC
Y104000T0000
NETSTAL
9641450211
PALFINGER
MW160042
PALL
HC2238FKS6H
HC2246FKS6H50
PARKER
938283Q
G03309
GO3309
PR3309
REXROTH
10.330LAPF10-E00-6-M
R928017542
R928017546
R928017552
SANDVIK
502940
SCHROEDER
SBF0330RZ10B
SF
HY13210
HY13215
HY13215VITON
HY13569
SF FILTER
HY13215
SOGEDEP
124140152
ST
H330R10N
ST1265
STAUFF
RE-090-G-10-B/4
RE090D10B
RE090E10B
RE090G10B
RE090G10B4
RE090N10B
STEP FILTERS
HID12027
UFI
8309600
UNIFLUX
XH448
VALTRA
V86491900
WINDHOFF
5.651.298.720-1/171
WISMET
WHE28249
WHE28253
WIX
R46D10EV
WOODGATE
WGHH33010RB
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| BACKERS | 1. | 2 TA | Perkins 1104D-44 | 2011-> | n/a | View |
| BEAM | S-Series | S 12000 | Mercedes OM 904 LA | 01.2013 | n/a | View |
| FORUS | HB-Series | HB 380 | Mercedes OM401LA | 2003 | n/a | View |
| GRIMME | MAXTRON-Series | MAXTRON 620 | Mercedes OM457LAE1 | n/a | n/a | View |
| GRIMME | SE-Series | SE 150-60 | n/a | n/a | n/a | View |
| GRIMME | SE-Series | SE 170-60 | n/a | n/a | n/a | View |
| GRIMME | SF-Series | SF 150-60 | Mercedes OM 906LA | n/a | n/a | View |
| HAULOTTE | HTL-Series | HTL 3614 | Deutz TCD2011L04 | 2013-> | n/a | View |
| HAULOTTE | HTL-Series | HTL 3614 | Perkins 1104D | 2014 | n/a | View |
| HAULOTTE | HTL-Series | HTL 3614 | Kohler KDI3404TCR22C | 2016 | n/a | View |
| HAULOTTE | HTL-Series | HTL 3614 | Deutz TCD2012L04-2V | 2013-> | n/a | View |
| HAULOTTE | HTL-Series | HTL 3617 | Perkins | 2014 | n/a | View |
| HAULOTTE | HTL-Series | HTL 3617 | Deutz TCD2012L04-2V | 2012-> | n/a | View |
| HAULOTTE | HTL-Series | HTL 4010 | Kohler KDITCR2504E5/26 | 2018-> | n/a | View |
| HAULOTTE | HTL-Series | HTL 4014 | Perkins | 2014 | n/a | View |
| HAULOTTE | HTL-Series | HTL 4014 | Kohler KDI3404TCP | 2015 | n/a | View |
| HAULOTTE | HTL-Series | HTL 4014 | Deutz BF4M2012 | 2008-> | n/a | View |
| HAULOTTE | HTL-Series | HTL 4017 | Kohler FKHX23-36TCR | 2014 | n/a | View |
| HAULOTTE | HTL-Series | HTL 4017 | Deutz BF4M2012 | 2008-> | n/a | View |
| HAULOTTE | HTL-Series | HTL 4017 | Perkins | 2014 | n/a | View |
| HUETTE | HBR-Series | HBR 609 | Deutz BF 6M1013CF | n/a | n/a | View |
| HUTTE | HBR-Series | HBR 609 | Deutz BF6M1013CF | n/a | n/a | View |
| JCB | 400-Series | 410B ZX | Perkins 1004.40 | n/a | n/a | View |
| JCB | 400-Series | 410B ZX LE | n/a | n/a | n/a | View |
| JCB | 400-Series | 411B ZX | Perkins 1004.42 | n/a | n/a | View |
| LAUPRETRE | K-Series | K 1 | Deutz | n/a | n/a | View |
| LAUPRETRE | LPH-Series | LPH 140 | Deutz | n/a | n/a | View |
| LAUPRETRE | LPH-Series | LPH 2-90 | Deutz BFM1011F | n/a | n/a | View |
| LAUPRETRE | LTH-Series | LTH 090 | Deutz BF4M2011 | n/a | n/a | View |
| MECALAC | 1. | 11 CX | Deutz | n/a | 700->950 | View |
| MECALAC | 1. | 11 CX | Deutz | n/a | 951->1143 | View |
| NOKKA | 1. | PROFI FOREST 50 | Sisu DIESEL 4CWA | n/a | n/a | View |
| PELJOB | P-Series | P 90 | Deutz BF4M1012 | n/a | n/a | View |
| SANDVIK | DI-Series | DI 400 | Cat C11ACERT | n/a | n/a | View |
| SANDVIK | DI-Series | DI 500 | Cat C11ACERT | n/a | n/a | View |
| SOGEDEP | SF-Series | SF 25 | Cummins QSB5.9 | n/a | n/a | View |
| SOGEDEP | SH-Series | SH 25 | Cummins QSB5.9 | n/a | n/a | View |
| SUNWARD | SWE-Series | SWE 17 | Yanmar | n/a | n/a | View |
| SUNWARD | SWE-Series | SWE 17 B | Yanmar 3TNV70-SSU | 2009-> | n/a | View |
| SUNWARD | SWE-Series | SWE 20 B | Yanmar | n/a | n/a | View |
| TAMROCK | TITON-Series | TITON 400 | Cat C9 | 2003-> | n/a | View |
