OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

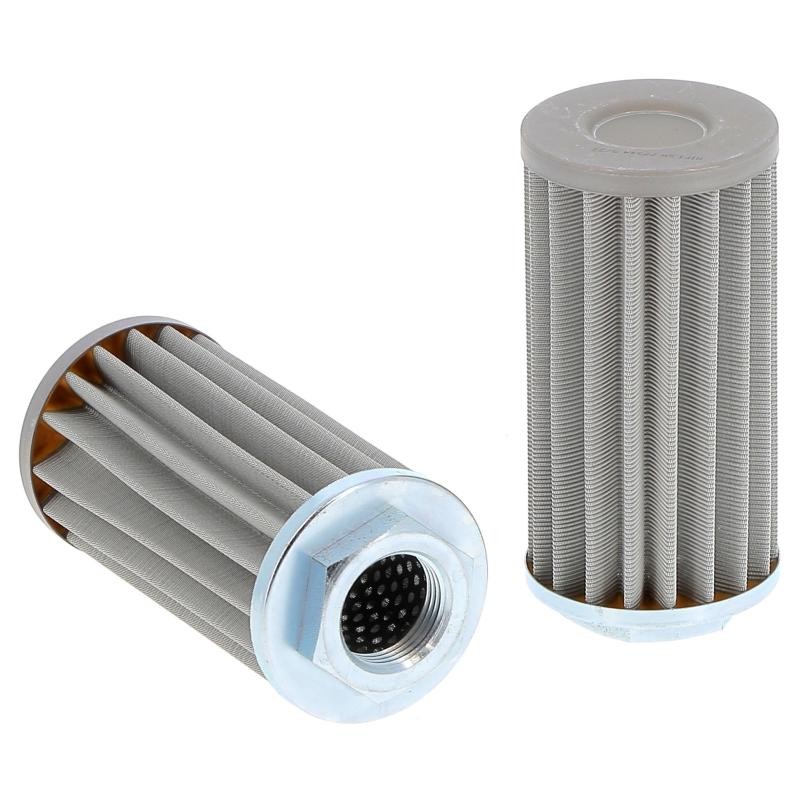

Hifi SH77344 HYDRAULIC FILTER
£23.21
VAT excluded
Delivered within 1-2 Days
Description
The Hifi SH77344 is a hydraulic filter, 144.5 mm long and 70 mm in diameter. It removes contaminants from hydraulic oil to protect pumps, valves and cylinders. It commonly replaces Hifi SH77594, Mp FILTRI MPA045M60, Mp FILTRI MPM045G1M60, Omt SF64B100GR90, Sf HY18502 and 4 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
144.5mm
Overall Diameter
70.0mm
Internal Diameter
40.5mm
Thread
1"-BSP
Available in these brands
Cross References
AMLIFT
CPHY0015
CPHY001500
ARLON
SZ2100
ATOS
FEI100125
XFUI100
BALDWIN
PT23474
BITELLI
481146
BOMAG
331048036
DOMANGE
CB4M100
DONALDSON
P171877
DOOSAN
A135050
D512992
DULEVO
D730800000
FBO
FIOA90
FILTREC CATALOGUE
FS162B5T125
GRANIT
1006764616
HAPRAG
CS2L200
HIFI
SH77344
SH77594
SH77731
IKRON
HF41020122ASMI125GFA01
HF41020122ASMS090GFA01
HHB10059
KOMATSU
20N6242110
MANITOU
197926
19910
MANN
HD7026
MDF
MDH7306
MODINA
665040
MP FILTRI
MPA045M60
MPA050G1M125
MPA050G1M90
MPA050M90
MPAC070-20MO0090ANFG1000ONNNP01NN
MPM045G1M60
STR0704SG1M125
STR0704SG1M90
STR0704SG1M90P01
STRC07020M0090AN00FG1000ONNNP01NN
OMT
ISF64B100GA
ISF86A100GA
SF64B100GA
SF64B100GR125
SF64B100GR90
PALAZZANI
50120245
PRO FILTERS
DH1977
DH1977A
ROPA
181060100
SF
HY12134
HY18502
HY18502MAGNET
HY18506
HY18508
HY18599
SOFIMA
665039
SOFIMA HYDRAULIC
FAM013MSXSB5S
FAM13MNB50
MSZ202MVXSB5
STAUFF
1910000649
SUS068G16140125PO
SUSP068B16F140125
SUSP068B16F1401250
SUNWARD
730401000127
UFI
8213900
UNIFLUX
XH1024
VANDEL
4272992V01
WISMET
WDON939143
WHE27919
WHE30459
WHE30464
WHE30541
XCMG
813408785
POCO01037602N111B
POCO0103760B
YVEL
YCA026
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| MANITOU | 200-Series | 200 ATJ | Kubota V 2403-M-EU32 | 2014-> | n/a | View |
Hifi SH77344 HYDRAULIC FILTER
