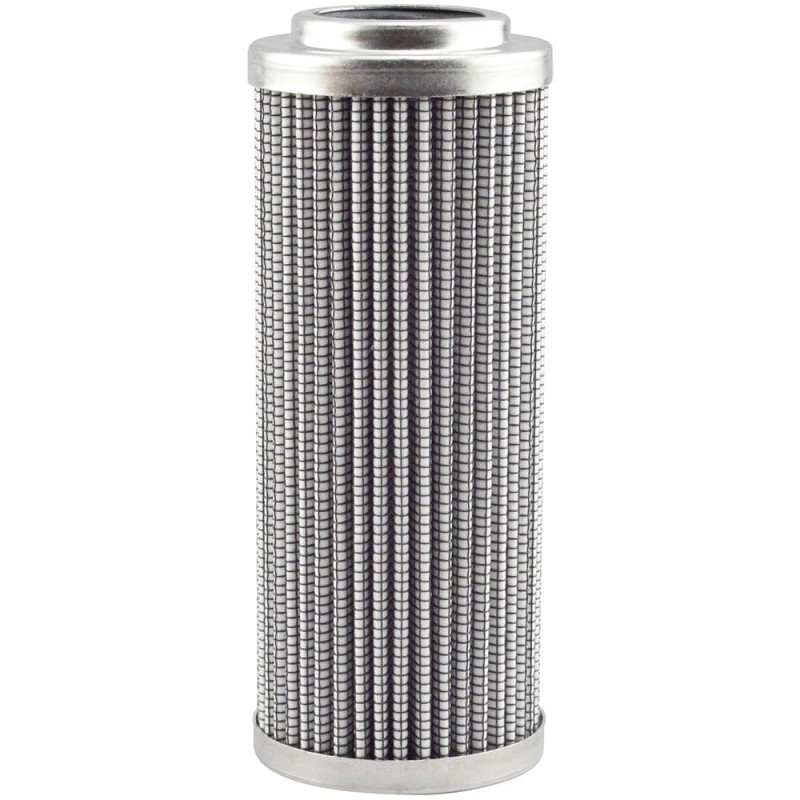

Baldwin H9041, Wire Mesh Supported Hydraulic Filter Element
£20.69
VAT excluded
Average lead time 7-10 days
Description
The Baldwin H9041 is a hydraulic filter, 114.3 mm long and 45.2 mm in diameter. It removes contaminants from hydraulic oil to protect pumps, valves and cylinders. It commonly replaces Baldwin H8041, Carquest 84864, Caterpillar 3I1511, Comex P9020D04N3, Donaldson P169429 and 52 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
114.3 mm (4.5 inch)
Overall Diameter
45.2 mm (1.78 inch)
Internal Diameter
26.2 mm (1.03 inch)
Product Type
Wire Mesh Supported Hydraulic Element
Outside Diameter
1 25/32 (45.2)
Inside Diameter
1 1/32 (26.2) One End
Gasket
Integral Gasket: [1] Included
Compatible Competitor Part Number
Pall HC9020FKP4H, HC9020FUP4H
Available in these brands
Cross References
BALDWIN
50009953
H8041
H9041
CARQUEST
84864
CATERPILLAR
3I1511
COMEX
P9020D04N3
DONALDSON
P169429
P566195
FAIREYARLON
R920H0403A
R920Z0403A
FILTREC
D111G03A
FLEETGUARD
HF30382
HF30383
HF7040
FLEETRITE
HFR830382
HFR87040
FRAM
C7258
GRAINGER
4ZFF1
GREYFRIARS
HF9152FT11
HIFI
SH63926
HYCON
H90204003BN
HYPRO
HP20L46M
LUBERFINER
LH4233
MAHLE KNECHT
852126SM3
MAHLEINDUSTRIE
891011SM3
MANNFILTER
HD553
MOOG
7160313
B645701
NAPA GOLD
7864
NATIONAL STOCK NUMBER
4330004346557
PALL
HC9020FDP4H
HC9020FKP4H
HC9020FUP4H
PARKER
925582
928935
932610Q
G01370
PR3443
PTI
FK010GGB
PUROLATOR
9313216
PUROLATORFACET
1400BDM032N1
1400EAM032F1
1400EAM032N1
REXROTH
R928016856
SCHROEDER
SBF90204S1B
SBF90204Z3B
SF
HY18289
HY19012
HY20502
HY20502VITON
SOFIMA
CH152FT1
EPB12NFA
STAUFF
R3021
SP010E03B
SP010E03V
VICKERS
V3041B1C03
V3042B1V03
WISMET
WHE21761V
WHE30967
WIX
57864
WOODGATE
WGH9837
WGPP9204
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
