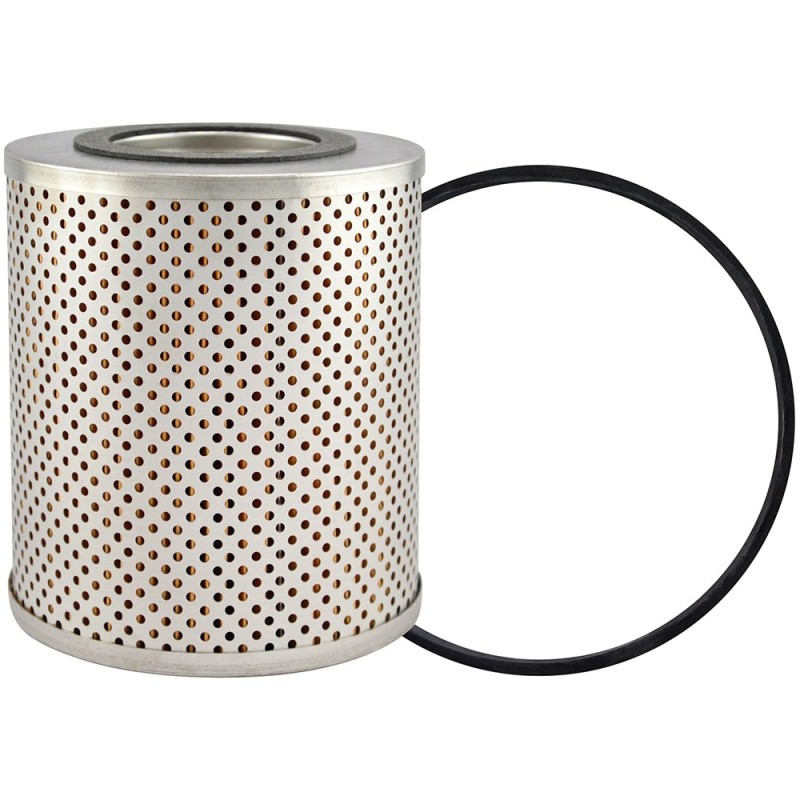

Baldwin P203-HD, Hydraulic Filter Element
£23.50
VAT excluded
Hydraulic Element, OD:- 4 17/32 (115.1), ID:- 1/2 (12.7), & 2 9/32 (57.9), Length: 5 1/16 (128.6), Ogskt: G115-MSB, G280, Notes: P203 includes G115-MSB, G184-A gaskets. P203-HD, P203-HD10 include G331 gasket., Contains Reinforced CentertubeEnd Seals:[1] AttachedGrommets: [1] Attached, Weight Kgs: 0.454, Volume m3: 0.002, Case Qty: 12, UPC: 7 91440 00257
Secure payments
Fast Worldwide Delivery
Hassle Free Return Policy
Description: Hydraulic Element
OD:- 4 17/32 (115.1)
ID:- 1/2 (12.7) & 2 9/32 (57.9)
Length: 5 1/16 (128.6)
Ogskt: G115-MSB, G280
Notes: P203 includes G115-MSB, G184-A gaskets. P203-HD, P203-HD10 include G331 gasket.
Contains: Reinforced Centertube
End Seals:[1] Attached
Grommets: [1] Attached
Weight KGS: 0.454
Volume m3: 0.002
Case Qty: 12
Upc: 7 91440 00257 9 Fits:
OD:- 4 17/32 (115.1)
ID:- 1/2 (12.7) & 2 9/32 (57.9)
Length: 5 1/16 (128.6)
Ogskt: G115-MSB, G280
Notes: P203 includes G115-MSB, G184-A gaskets. P203-HD, P203-HD10 include G331 gasket.
Contains: Reinforced Centertube
End Seals:[1] Attached
Grommets: [1] Attached
Weight KGS: 0.454
Volume m3: 0.002
Case Qty: 12
Upc: 7 91440 00257 9 Fits:
CESSNA F45, DRESSER 100C Crawler Loader w/D206 Eng., 100E Crawler Loader w/D239 Eng., 125C Crawler Loader w/D239 Eng., 125E Crawler Loader w/DT239 Eng., TD15C, TD15C LGP Crawler Tractors w/IHC DT466 Eng., TD25B w/DT817 Eng., TD25B w/DT817B Eng., TD25C w/DT817B, DT817C Engs., TD7C Crawler Dozer w/D206 Eng., TD7E Crawler Dozer w/D239 Eng., TD8E Crawler Dozer w/D239, DT239 Engs., IHC 125C, 125E, 100C w/D206 Eng., 100E, T7, TD7C w/D206 Eng., TD15B, TD25B, TD25C, TD7E, TD8C, TD8E, Models w/Racine Hydraulic System, 412, 412B Scrapers w/IHC Eng., E200 Payscraper w/DT361, DT407 Engs., E200 Payscraper w/DT414, DT466 Engs., E211 Payscraper w/DT407 Eng., PH350 Payhauler w/Cummins VT1710C Eng., PH350 Payhauler w/GMC 16V-71N Eng., RACINE Timber Toter, Models w/Racine Hydraulic or Transmission Systems
Replaces: ACDELCO 12-814, ACDELCO PF814, ACE P138, ALCO MD121, ALLOY A333, AMERICAN PARTS 2106, AMERICAN PARTS 838, AP-LOCKHEED 574284, AP-LOCKHEED FH284, APOLLO P138, AUTOPAR FE111, BIG A 694, BIG A 838, BIG A 92162, BIG A 92404, BOWES P138, CAM2 P138, CARQUEST 85162, CARQUEST 85404, CASE 214731R91, CASE 216140R92, CASE 323844R91, CASE 615447C2, CATERPILLAR 3I1335, CATERPILLAR 5B5982, CATERPILLAR 9Y4481, CENEX CO100, CESSNA F45, CHAMPION LABORATORIES P138, CHRYSLER 2647018, CO-OP PL731, COOPERS G588, CROSLAND 656, CYCLONE PM266, DELUXE 375, DELUXE WD375, DONALDSON HFP556004, DONALDSON P556004, DONALDSON P779020, DONALDSON P779550, FILT FF259, FILTER DYNAMICS K135, FILTER DYNAMICS KR135, FLEETGUARD HF6064, FLEETGUARD LF522, FLEETRITE HFR86064, FLEETRITE LFR8522, FLO-LINE Q333, FORD MOTOR CO. C5R-6731-A, FORD MOTOR CO. D3NN-7B301-A, FORD MOTOR CO. EEPN-7B301-AA, FRAM C3662, FRAM C7032, FRAM CH333PL, G.U.D. G588, GALION D97073, GENERAL MOTORS CORP. 25010584, GENERAL MOTORS CORP. 5576023, GENERAL MOTORS CORP. 5576025, GENERAL MOTORS CORP. 6438842, GENERAL MOTORS CORP. 6438883, GONHER G333M, GOULD P266, HASTINGS LF353, HOUGH 214731R91, HUTCHENS SF135, INTERNATIONAL HARVESTER 213282-R91, INTERNATIONAL HARVESTER 213383-R91, INTERNATIONAL HARVESTER 213388-R91, INTERNATIONAL HARVESTER 214731-R91, INTERNATIONAL HARVESTER 214731-R92, INTERNATIONAL HARVESTER 215678-R92, INTERNATIONAL HARVESTER 215678-R93, INTERNATIONAL HARVESTER 216139-R91, INTERNATIONAL HARVESTER 216139-R92, INTERNATIONAL HARVESTER 216140-R91, INTERNATIONAL HARVESTER 216140-R92, INTERNATIONAL HARVESTER 216150-R92, INTERNATIONAL HARVESTER 223960-R92, INTERNATIONAL HARVESTER 323844-R91, INTERNATIONAL HARVESTER 323869-R91, INTERNATIONAL HARVESTER 615447-C1, INTERNATIONAL HARVESTER 615447-C2, INTERNATIONAL HARVESTER 702096-C1, KOMATSU 615447-C2, KRALINATOR L926, LEE LP135, LEE LR135, LUBER-FINER LP447, LUBER-FINER P138, MICRO PORE PM333, MOPAR L8, MOTORCRAFT FL137, MOTORCRAFT FT4, NAPA 1162, NAPA 1404, NELSON 88383A, NELSON-WINSLOW WIH540, PERRY PL100, PHILLIPS P135, PRO MATCH 9Y4481, PUROLATOR H36013, PUROLATOR PM6013, QUAKER STATE QSC333, RACINE 493136, REFILCO 214731M, REXNORD 493136, REXNORD 493143, ROL-PAK IH731FF, SAVARA 92096917, STAY READY SRP-1H3, STAY READY SRP-IH3, TOWMOTOR A88269, UNITED ENGINE LIFE P214731, UNITED ENGINE LIFE P214731P, UNITED ENGINE LIFE U3-7L, WARNER & SWASEY P138, WESTERN TOOL CO. P731, WINSLOW CL-IH540, WINSLOW WI-H540P, WIX 51162, WIX 51404, WIX 551404, WOODGATE WGH6064,
P203-HD
Data sheet
- Part Number
- P203-HD
- Length
- 128.6mm
- Overall Diameter
- 115.1mm
- Internal Diameter
- 12.7mm
Specific References
- UPC
- 791440002579
- MPN
- P203-HD
Hydraulic Element, OD:- 4 17/32 (115.1), ID:- 1/2 (12.7), & 2 9/32 (57.9), Length: 5 1/16 (128.6), Ogskt: G115-MSB, G280, Notes: P203 includes G115-MSB, G184-A gaskets. P203-HD, P203-HD10 include G331 gasket., Contains Reinforced CentertubeEnd Seals:[1] AttachedGrommets: [1] Attached, Weight Kgs: 0.454, Volume m3: 0.002, Case Qty: 12, UPC: 7 91440 00257
