OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.
Baldwin PT268, Hydraulic Filter Element
£21.07
VAT excluded
Average lead time 7-10 days
Description

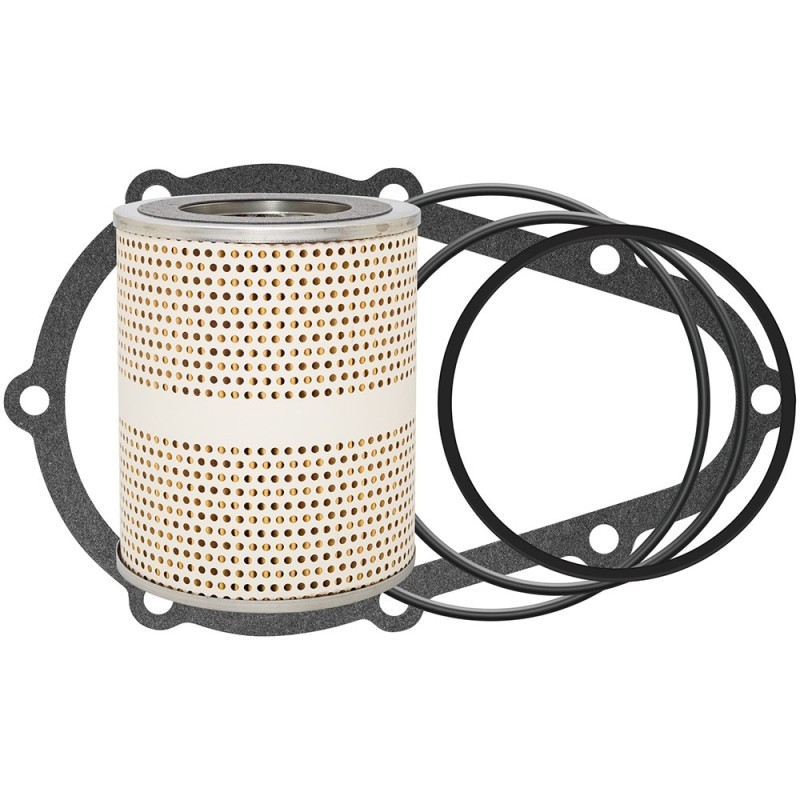

The Baldwin PT268 is a hydraulic filter, 155.6 mm long and 127 mm in diameter. It removes contaminants from hydraulic oil to protect pumps, valves and cylinders. It commonly replaces Acdelco PF445, Acdelco PF873, Agco 303497534, Agco 303497542, American PARTS 828 and 89 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
155.6 mm (6.13 inch)
Overall Diameter
127 mm (5 inch)
Internal Diameter
71.4 mm (2.81 inch)
Product Type
Hydraulic Element
Outside Diameter
5 (127.0)
Inside Diameter
2 13/16 (71.4)
Gasket
Furnished Gasket: G261, G307, G360, G368; Optional Gasket: G260, G362, G382
Application
Case, Dresser, International Equipment
Compatible Competitor Part Number
International 390560-R91, 528507-R91
Micron Rating
23 Nominal; 45 Absolute
Includes
End Seals: [2] Attached
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Baldwin
|
PT268 | Order on request | £21.07 |
Cross References
ACDELCO
PF445
PF873
AGCO
303497534
303497542
AMERICAN PARTS
828
92253
92783
BALDWIN
PT268
CARQUEST
85253
85783
CASE
385683R91
386120R91
386122R91
401839R91
528493R2
528493R3
538654R91
70432C91
CASE IHC
382248R91
386122R92
390560R91
390650R91
4018390R91
528493R1
528493R92
528507R91
528507R92
533289R91
CATERPILLAR
3I1299
CHAMPION LABORATORIES
5008
P5008
COOP
PL114
PL485
COOPERS
HEM6098
CYCLONE
PM357
PM485
DELUXE
276
299
WD276
WD299
DIEXA
DXT114
DONALDSON
HFP554636
P554636
P779544
FILT
FF324
FLEETGUARD
HF6054
LF671
FLEETRITE
HFR86054
LFR8671
FRAM
C4600
C4636
GENERAL MOTORS CORP
6437985
6437989
6439348
6439349
GONHER
G122
G122M
G338
G338M
GOULD
P357
P485
GRAINGER
2NUV8
HASTINGS PREMIUM FILTERS
HF739
P350
P739
KRALINATOR
L628
LUBERFINER
LFH4636
LH4636
LP5008
MACK
5839HF6054
MANN AND HUMMEL
6750157106
H9102
H9131
MICRO PORE
PM4600
MOBIL
MT114
MOTORCRAFT
FH1
FH55
NAPA GOLD
1253
1783
NATIONAL STOCK NUMBER
4330010466960
NELSON
89664K
PBR
AC3026
PERRY
PL299
PUROLATOR
H30014
H30114
P114
RYCO
R2309
R2309P
R2309PA
SAVARA
92156717
STAY READY
SRPIH16
WIX
51253
51783
CW253MP
WOODGATE
WGH6054
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| CASE | 1000-Series | 1420 | n/a | n/a | n/a | View |
| CASE | 1000-Series | 1440 | n/a | n/a | n/a | View |
| CASE | 1000-Series | 1460 | IHC | n/a | n/a | View |
| CASE | 1000-Series | 1470 | IHC | n/a | n/a | View |
| CASE | 1000-Series | 1480 | IHC | n/a | n/a | View |
| CASE | 1000-Series | 1620 1. | n/a | n/a | JJC0032630-> | View |
| CASE | 1000-Series | 1620 2. | Cummins 6T590 | n/a | JJC0032631-> | View |
| CASE | 1000-Series | 1640 | DT466 | n/a | <- JJC0038345 | View |
| CASE | 1000-Series | 1640 | Cummins 6T830 | n/a | JJ0034706-> | View |
| CASE | 1000-Series | 1640 1. | n/a | n/a | <- JJC0034705 | View |
| CASE | 1000-Series | 1640 2. | Cummins 6TA590 | n/a | JJC0034706-> | View |
| CASE | 1000-Series | 1660 | n/a | n/a | 44489288-> | View |
| CASE | 1000-Series | 1660 | n/a | n/a | 038346->44489287 | View |
| CASE | 1000-Series | 1660 | Cummins 6T830 | n/a | n/a | View |
| CASE | 1000-Series | 1660 1. | n/a | n/a | <- JJC0038345-> | View |
| CASE | 1000-Series | 1660 AXIAL | IHC DT466 | n/a | <-38345 | View |
| CASE | 1000-Series | 1680 | IH | n/a | <- JJ0045889 | View |
| CASE | 1000-Series | 1680 | n/a | n/a | 44500596-> | View |
| CASE | 1000-Series | 1680 | DT466C | n/a | JJC0045889-> | View |
| CASE | 1000-Series | 1680 | n/a | n/a | JJC0047915-> | View |
| CASE | 1000-Series | 1680 | Case | n/a | n/a | View |
| CASE | 1000-Series | 1680 | n/a | n/a | <-44500595 | View |
| CASE | 1000-Series | 1680 Serie | n/a | n/a | <- JJC45889 | View |
Baldwin PT268 hydraulic filter, 155.6 mm long × 127 mm diameter. Replaces Acdelco PF445, Acdelco PF873, Agco 303497534 and more. In stock at Rico Europe.
