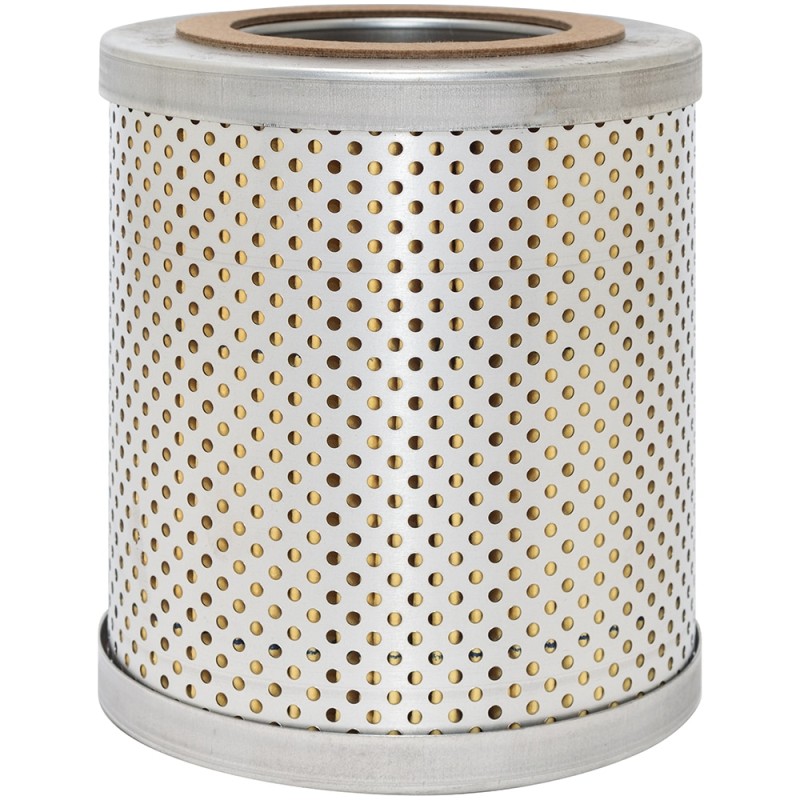

Baldwin PT765, Hydraulic Filter Element
£49.12
VAT excluded
Average lead time 7-10 days
Description
The Baldwin PT765 is a hydraulic filter, 127 mm long and 111.1 mm in diameter. It removes contaminants from hydraulic oil to protect pumps, valves and cylinders. It commonly replaces Air REFINER ARH160055, Air REFINER ARH160505, Air REFINER ARH160605, American PARTS 92580, Carquest 85580 and 27 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
127 mm (5 inch)
Overall Diameter
111.1 mm (4.37 inch)
Internal Diameter
18.3 mm (0.72 inch)
Product Type
Hydraulic Element
Outside Diameter
4 3/8 (111.1)
Inside Diameter
23/32 (18.3) & 2 13/32 (61.1)
Gasket
Attached Gasket: [1] Attached
Application
Ingersoll-Rand Compressors
Compatible Competitor Part Number
Ingersoll-Rand 50469055
Micron Rating
9.8 Nominal; 27 Absolute
Includes
Grommet: [1] Attached
Available in these brands
Cross References
AIR REFINER
ARH160055
ARH160205
ARH160505
ARH160605
AMERICAN PARTS
92580
BALDWIN
PT765
CARQUEST
85580
CASE/CASE IH
114193
S114193
CATERPILLAR
3I0479
CENTURY II
1046Z415
CLARK
600620
DONALDSON
P160055
P160105
P160205
P160505
P160605
P560524
DRESSER
940122C1
FAMEL
FA306H
FLEETGUARD
HF35280
HF6284
HF6291
FLEETRITE
HFR835280
HFR86291
FRAM
C3751
C6982
GRAINGER
4ZLZ8
HASTINGS PREMIUM FILTERS
HF844
INGERSOLL RAND
56922941
INGERSOLLRAND
39102330
50469055
56933658
KRALINATOR
L403
L440
NAPA
1561
1583
NAPA GOLD
1580
ORENSTEIN & KOPPEL
685195800
OWATONNA
17032857
P H HARNISCHFEGER
46Z419
POSTAS
YF1995
REPLACED BY
P160655
TEREX
685195000
VMC
HF560524
WALGAHN-MOTORENTECHN
810887
810904
WIX
51580
551580
WOODGATE
WGH6291
YALE
6851329
6851958
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
