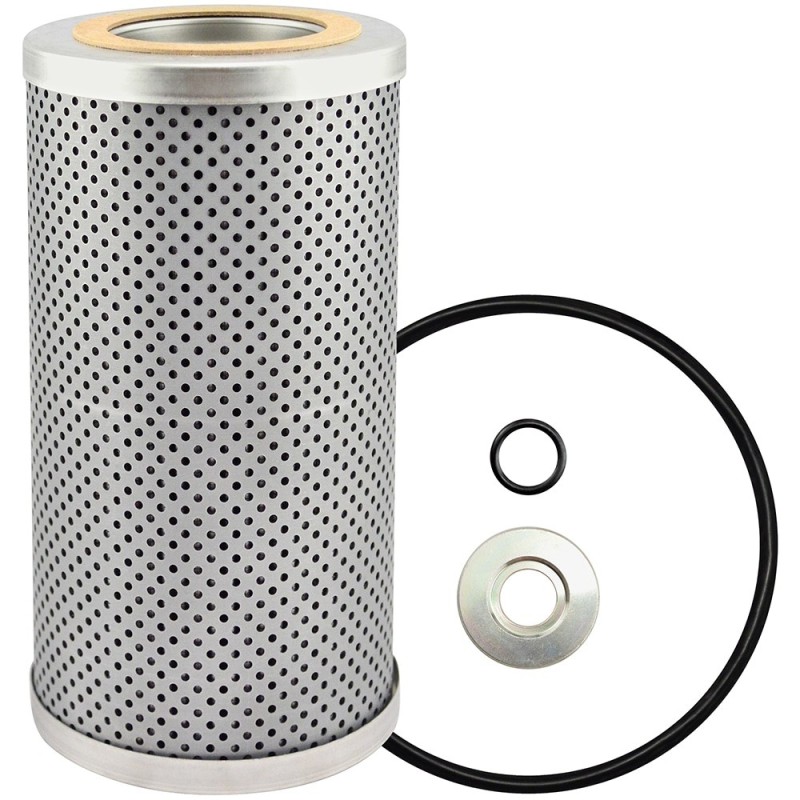

Baldwin PT776-MPG, Maximum Performance Glass Hydraulic Filter Element
£55.93
VAT excluded
Average lead time 7-10 days
Description
The Baldwin PT776-MPG is a hydraulic filter, 204.8 mm long and 111.1 mm in diameter. It removes contaminants from hydraulic oil to protect pumps, valves and cylinders. It commonly replaces Air REFINER ARH160508, American PARTS 92530, Baldwin PT776, Big A FILTER 92537, Big A FILTER 92559 and 47 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
204.8 mm (8.06 inch)
Overall Diameter
111.1 mm (4.37 inch)
Internal Diameter
19.1 mm (0.75 inch)
Product Type
Maximum Performance Glass Hydraulic Element
Outside Diameter
4 3/8 (111.1)
Inside Diameter
3/4 (19.1) & 2 7/16 (61.9)
Gasket
Attached Gasket: [1] Attached; Furnished Gasket: [1] Washer
Compatible Competitor Part Number
Gardner Denver 2109093
Micron Rating
5 Nominal; 20 Absolute
Includes
Grommet: [1] Attached
O Ring
[2] Included
Available in these brands
Cross References
ADAMS AIR & HYDRAULICS
P161919
AIR REFINER
ARH160508
AMERICAN PARTS
92530
BALDWIN
PT776
PT776MPG
BIG A FILTER
92537
92559
CARQUEST
85530
85537
85559
CASE
S109470
CATERPILLAR
3I0471
3I0524
3I0528
3I0544
CHARDONNET
7216210400
7216317200
DONALDSON
P160508
P162104
P162260
P163172
P164282
P165252
DRILTECH
3186055
3186056
318655
318656
EATON
6851961
6955977
FAMEL
FA228H
FILTERMART
10595
FLEETGUARD
HF35281
HF6289
HF6295
HF6299
HF6464
FLEETRITE
HFR86289
HFR86299
HFR86464
FRAM
C6952
C6987
C6996
GARDNER DENVER
1413127
GARDNERDENVER
2109093
5826901P
5990190
GRAINGER
4ZPP5
HASTINGS PREMIUM FILTERS
HF744
P744
HPBFS
BE79L840MB
HY PRO
HP79L840MB
INGERSOLL RAND
1252821
JURA FILTRATION
SH56349
SH56514
KRALINATOR
L432
LUBERFINER
LH4996
MAIN FILTER
MF0594506
MF0594683
NAPA GOLD
1530
1537
1559
PUROLATOR
PM6047
REPLACED BY
P163173
SF
HY9492
SULLAIR
248032
TIMBERJACK
841121300
VMC
HF163172
WALGAHN-MOTORENTECHN
810926
810938
WISMET
WHE26565
WIX
51530
51537
51559
551559
WOODGATE
WGH6289
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| CEDARAPIDS | RC-Series | RC 54 | n/a | n/a | n/a | View |
| CHAMPION ROAD | 720-Series | 720 P | GM | n/a | n/a | View |
| INGERSOLL RAND | P-Series | P 375 WD | Deutz F6L912 | n/a | n/a | View |
| INGERSOLL RAND | XP/XHP-Series | XHP 750 SCAT | Cat | n/a | n/a | View |
| MASSEY FERGUSON | 1.. | 4800 | Cummins VT903 | n/a | n/a | View |
| MASSEY FERGUSON | 1.. | 4840 | Cummins V903 | n/a | n/a | View |
| PANIEN | EPANDEUR-Series | EPANDEUR CHAUX | Renault | n/a | n/a | View |
Baldwin PT776-MPG hydraulic filter, 204.8 mm long × 111.1 mm diameter. Replaces Air REFINER ARH160508, American PARTS 92530, Baldwin PT776 and more. In stock at Rico Europe.
