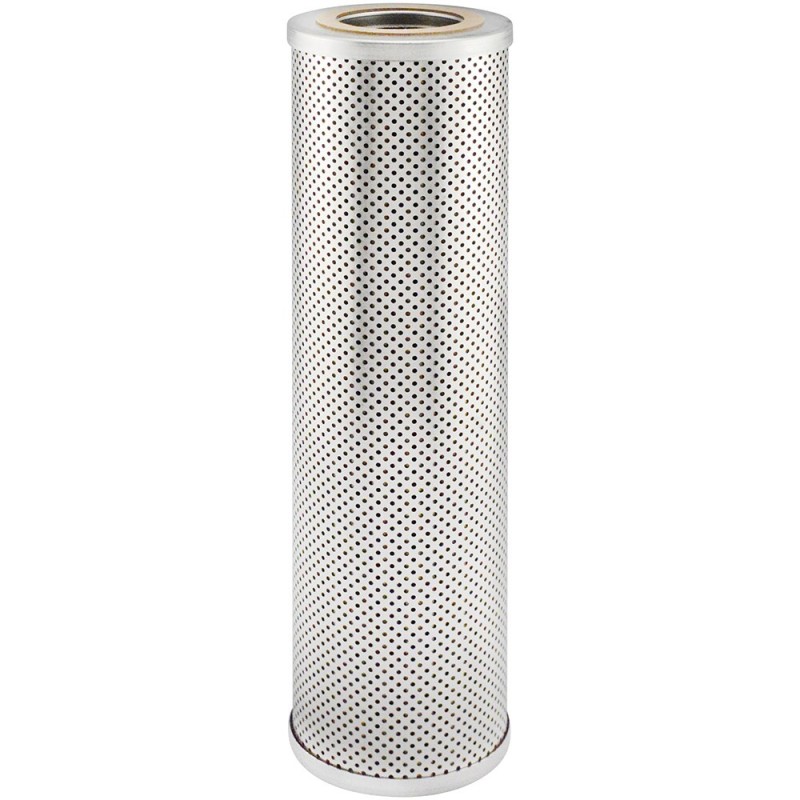

Baldwin PT8494, Wire Mesh Supported Hydraulic Filter Element
£80.51
VAT excluded
Average lead time 7-10 days
Description
The Baldwin PT8494 is a hydraulic filter, 408 mm long and 111.1 mm in diameter. It removes contaminants from hydraulic oil to protect pumps, valves and cylinders. It commonly replaces Big A FILTER 92527, Carquest 85527, Case S104929, Caterpillar 3I0473, Donaldson P160516 and 10 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
408 mm (16.06 inch)
Overall Diameter
111.1 mm (4.37 inch)
Internal Diameter
18.3 mm (0.72 inch)
Product Type
Wire Mesh Supported Hydraulic Element
Outside Diameter
4 3/8 (111.1)
Inside Diameter
23/32 (18.3) & 2 13/32 (61.1)
Gasket
Attached Gasket: [1] Attached
Application
Case Excavators; Donaldson HAK05 Assembly
Compatible Competitor Part Number
Case S104929; Donaldson P160516
Micron Rating
9.8 Nominal; 27 Absolute
Includes
Grommet: [1] Attached
Available in these brands
Cross References
BALDWIN
PT8494
BIG A FILTER
92527
CARQUEST
85527
CASE
S104929
CATERPILLAR
3I0473
DONALDSON
P160516
FLEETGUARD
HF6290
FLEETRITE
HFR86290
FORD
9576P160516
FRAM
C6988
GRAINGER
4ZUK6
INGERSOLLRAND
56945512
LUBERFINER
LH5001
NAPA GOLD
1527
WIX
51527
551527
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
