OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

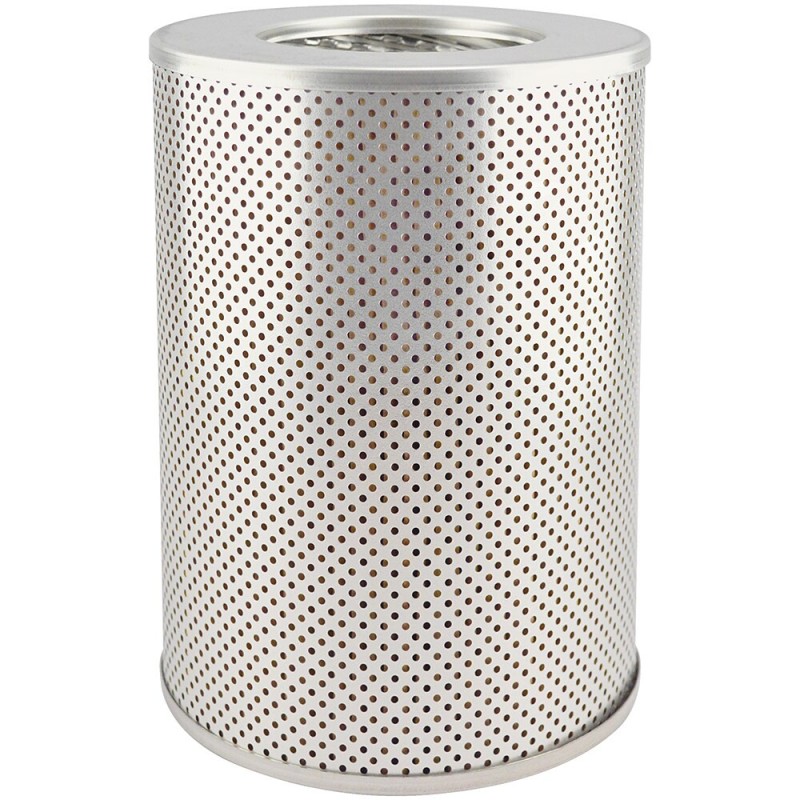

Baldwin PT98-10, Hydraulic Filter Element
£24.05
VAT excluded
Average lead time 7-10 days
Description
The Baldwin PT98-10 is a hydraulic filter, 228.6 mm long and 172.2 mm in diameter. It removes contaminants from hydraulic oil to protect pumps, valves and cylinders. It commonly replaces Acdelco PF996, Air MAZE AMH6083, Alco MD705, American PARTS 566, American PARTS 92195 and 51 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
9 (228.6)
Contains
Reinforced Centertube
Product Type
Hydraulic Element
Outside Diameter
6 25/32 (172.2)
Inside Diameter
3 15/16 (100.0)
Gasket
Optional Gasket: ES4008, G412, G438
Application
Caterpillar Equipment
Compatible Competitor Part Number
Caterpillar 7J670, 7J0670
Micron Rating
23 Nominal; 45 Absolute
Available in these brands
Cross References
ACDELCO
PF996
AIR MAZE
AMH6083
ALCO
MD705
AMERICAN PARTS
566
92195
BALDWIN
PT9810
CARQUEST
85195
CATERPILLAR
1R0723
1R0732
1R0792
3I0592
3I1342
7J0670
7J670
9Y4521
CHAMPION LABORATORIES
LFH4635
COOPERS
HEM6018
DIGOEMA
DGMH6083
DONALDSON
HFP170700
HFP556700
P162033
P164207
P556700
FLEETGUARD
HF6083
LF714
FLEETRITE
HFR86083
LFR8714
FRAM
C4635
C463501
GENERAL MOTORS CORP
25011469
GFF
HFE9001
GONHER
G153
G153E
GRAINGER
2KYZ9
GUARDIAN FILTER CO
G051195
GUD
G1028
HASTINGS PREMIUM FILTERS
HF700
HEAVY DUTY AIR
A18001
HENGST
E54H
HIFI
SH56133
KRALINATOR
L846
LUBERFINER
LH4635
MANN HUMMEL
H18180
MANNFILTER
6792053106
MOTORCRAFT
FL311
NAPA GOLD
1195
NATIONAL STOCK NUMBER
4330010610246
O & K
105505
PBR
AC326010
PUROLATOR
EP305
H50305
SAKURA
H5509
SF
HY9565
VOLVO
3130946
WISMET
WHE26625
WIX
51195
WOODGATE
WGH6083
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| CAT | 1. | 14 | Cat | n/a | 96U1 | View |
| CAT | 200-Series | 225 | n/a | n/a | 76U1-> | View |
| CAT | 200-Series | 225 | Cat | n/a | 76 U | View |
| CAT | 200-Series | 235 | n/a | n/a | n/a | View |
| CAT | 200-Series | 245 | Cat | n/a | 94 L | View |
| CAT | 200-Series | 245 D | Cat | n/a | 4LK1-> | View |
| CAT | 600-Series | 611 | Cat 6NC14000- | n/a | ALL SERIES | View |
| CAT | 600-Series | 615 C II | 6NC1-> | n/a | 9XG1 | View |
| CAT | 600-Series | 615 C II | Cat 6NC1- | n/a | 9XG1-> | View |
| CAT | 600-Series | 627 E | Cat | n/a | 6EB | View |
| CAT | 600-Series | 631 E II | CAT 3408E | n/a | 1AB01446 - 1AB01639 | View |
| CAT | 600-Series | 631 E II | CAT 3408E | n/a | 1AB01640 | View |
| CAT | 700-Series | 797 B | Cat 3524B | n/a | n/a | View |
| CAT | 900-Series | 988 B | n/a | n/a | 50W1-> | View |
| CAT | 900-Series | 988 F SERIE II | Cat | n/a | 2ZR1-> | View |
| CAT | 900-Series | 992 | n/a | n/a | 25K | View |
| CAT | 900-Series | 992 C | Cat | n/a | 49Z1-> | View |
| CAT | D-Series | D 11 N | Cat | n/a | 2GR1-> | View |
| CAT | D-Series | D 11 N | Cat 99W1-1853 | n/a | 74Z1-> | View |
| CAT | D-Series | D 9 L | Cat | n/a | 14Y- | View |
| CAT | D-Series | D 9 L | Cat | n/a | n/a | View |
| SOILMEC | R-Series | R 10 | Cat | n/a | n/a | View |
Baldwin PT98-10 hydraulic filter, 228.6 mm long × 172.2 mm diameter. Replaces Acdelco PF996, Air MAZE AMH6083, Alco MD705 and more. In stock at Rico Europe.
