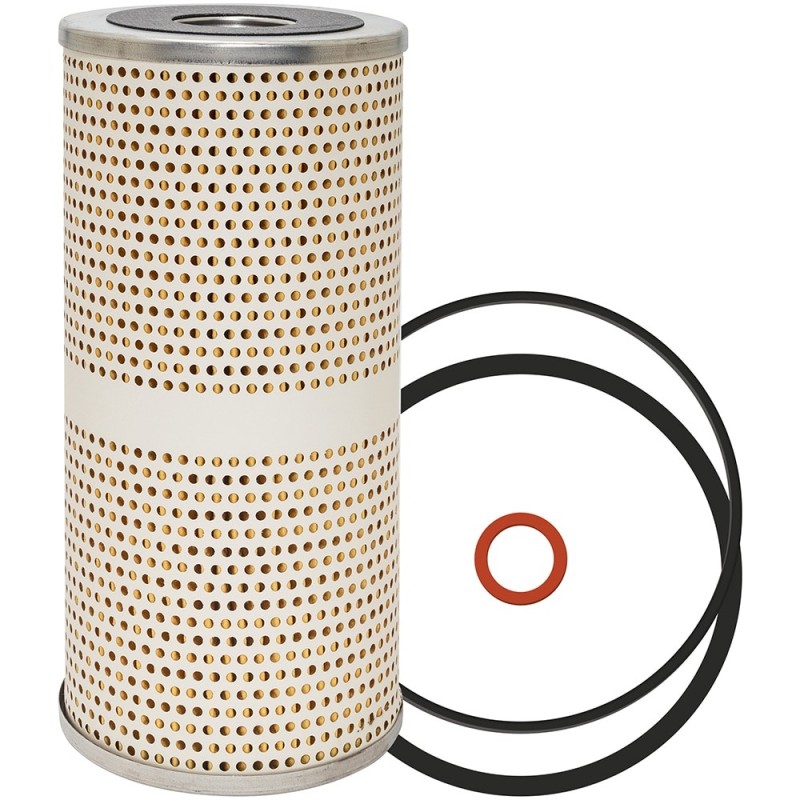

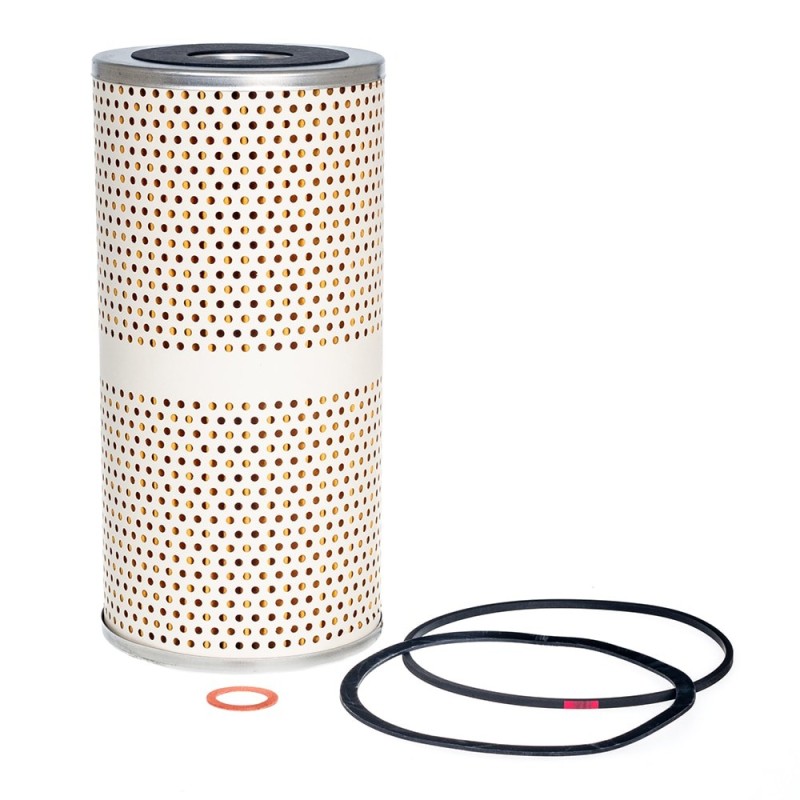

Baldwin P20-HD, Full-Flow Oil Filter Element
£16.52
VAT excluded
Average lead time 7-10 days
Description
The Baldwin P20-HD is an oil filter, 230.2 mm long and 112.7 mm in diameter. It removes soot, dirt and metal particles from engine oil for reliable lubrication. It commonly replaces 32300518, Acdelco 12132, Acdelco 12132W, Acdelco 6132, Acdelco LT653 and 694 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
230.2 mm (9.06 inch)
Overall Diameter
112.7 mm (4.44 inch)
Internal Diameter
38.1 mm (1.5 inch)
Related To
PT385
Product Type
Full-Flow Lube Element
Outside Diameter
4 7/16 (112.7)
Inside Diameter
1 1/2 (38.1)
Gasket
Furnished Gasket: ES1032, G115-MSB, G143A; Optional Gasket: G143, G280
Application
Allis Chalmers, Case, Clark, Euclid, Gardner Denver, Gradall, Terex Equipment; Detroit Diesel Engines; IHC, Iveco, Kenworth, Mack Trucks
Compatible Competitor Part Number
GMC 5573013, 25013194
Micron Rating
23 Nominal; 45 Absolute
Includes
End Seals: [2] Attached
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Baldwin
|
P20-HD | Order on request | £16.52 |
Cross References
ACDELCO
12132
12132W
6132
LT653
PF132
PF132L
PF132W
PF132X
PF135
PF150
PF151
PF156
PF156X
PF157
PF163
PM13
PM1310
PM132
PM135
PM137
PM138
PM139
PM13A
PM21
PM25
PMD13
PMD25
ACDELCO PM13
SERIES
ACT
FDO016
ADAMS
5573014
AGCHEM EQUIPMENT
606881
AGCO
704945
AIR REFINER
PL509
ALCO
MD115A
ALCO FILTERS
MD115
ALLIS CHALMERS
185691
1856915
1880566
22104
221041
3022104
30221041
3104894
31048945
431021
4310216
4335348
43353488
4347021
4369988
43699880
4371021
43710214
43710219
4371137
43711373
4395889
43958891
5576200
59792
597926
74371021
74395889
79325
79352
793528
81733
817332
90828
908285
ALLOY
A33
AMERICAN PARTS
669
878
92130
92133
92136
92176
92426
96133
AP FILTERS
AP481
APCO
AP33
APLOCKHEED
574130
AP481A
FH130
LK481
APOLLO
LP132
ATLAS COPCO
511214106
51121461
5112146106
97090021
9709002100
9710063302
97110127
AUSTINWESTERN
215502
PGF15898
AVELINGBARFORD
20839
ABP3001587
SWT603045
SWT603046
BAKER
20010
9094
BALDWIN
P20
P20HD
P20HDE
BARBERGREENE
5573102
BAUDOUIN
12430780
CP23110
PC23110
PD1022
BELL
220071
BENATI
1831101
1836103
BENDINI
101802
BIG A FILTER
92133MP
BLAWKNOX
29582900
BLOUNT
120161
BOMAG
30003053
BOSCH
1457429465
1457429469
2600HE
451104469
78HE
9451732600
9457200078
9457200780
BOWSERBRIGGS
BP9
BROCKWAY
213860
BUFFALOSPRINGFIELD
18772
CANCAR
22118
CARCARE
CH33APL
CARQUEST
85130
85133
85133MP
85136
89133
CASE
131470
131570H1
302565R91
302574R91
303122R91
304753C91
3068931R91
3071235R91
3108245R1
319926R91
333719R91
340175R91
35034
35054
402P20H
613797C91
613798C91
A45987
HD260F3340
JD382L2160
L031230
L31230
L33711
N9960
R14458
CATERPILLAR
3I0712
3I1149
5R3178
9Y4456
CENEX
CO998
CERMAG
10803
CHAMBERLAIN
14921
CHAMPION
14195
15052
CHAMPION LABORATORIES
P132
P151
CHAMPION SPARK PLUG
HO501
CHICAGOPNEUMATIC
4PS915
5PS878
CHRYSLER
2647666
CLARK EQUIPMENT
215501
221550
233277
3455192
363691
519573
523611
5575995
5577106
5577124
5725847
63691
835989
943066
943249
943949
943989
94558
945580
945628
945927
947944
953989
CLEAN FILTERS
ML20
CLEVELAND
F4804
COACH GUARD
T081077
COCKSHUTT
105256AS
COLES
500116
8758907
8767632
CONSOLIDATED PNEUMATIC
5FPS1833
CONTINENTAL
PC33
COOP
P309
PL132MB
PM309
COOPERS
AZL019
AZL117
G529
HET6154
CROSLAND
535
5351
CUMMINS
128903
131570
142879
142897
253621
3301060
3301061
CYCLONE
PM197MA
PM197MB
DELUXE
70
98
998
WD70
WD98
WD998
DEMAG
988618
DETROIT DIESEL
23518666
23530410
DIAMOND
DH1123
DH1123A
DIAMOND REO
892972H2
DIEXA
DX78
DONALDSON
HFP550951
LFP170132
LFP550132
P166375
P172532
P172888
P550132
P779000
P779586
DONIT
411005
EATON
2016336
2039875
6951388
6955207
6955303
EIMCO
V9A99
VFA99
EUCLID
4059976
6439400
FACET
33
LC33
FAMEL
FA606
FA78
FAUN FRISCH
4194770
4788715
FIAAM
FA4287
FA4287A
FA4637
FA4637A
FIAT
1366330
188056
1901608
1901934
197121
4528873
4538573
4587711
4590074
45938901
4596890
4596891
4636295
4636401
4777257
4777258
4887711
665859
70022104
70059792
70079325
70079352
70081733
70090828
701856915
70188056
701880566
70431021
73022104
73104894
74335348
74347021
74369988
74371137
74538573
74587711
74590074
74596890
74596891
74636401
74887711
761970
7722336
78813556
79010563
79032093
8813556
FILGA
FF78
FILT
FF114
FF114M
FF295
FILTER CONTROL LTD
FCL7120
FILTER DYNAMICS
EK78
FILTER MEX
FM33A
FINN FILTER
FFP185A
FFP185B
FFP185C
FFP39
FISPA
FOC221
LI3633
FLEETGUARD
HF6088
LF3529
LF509
LF509AN
LF511
FLEETRITE
HFR86088
LFR83529
LFR8509
LFR8509AN
LFR8509N
LFR8511
FLOLINE
Q132
Q132HD
Q132S
FLXIBLE
97342400188
97520500229
FMC
3H1363
FODEN
Y02274510
FORD MOTOR CO
5000872
5011472
A730X6731J3A
A830X6731LA
FORTIS
1LF509N
FRAM
BCH33APL
CH33PL
CH33PL1
CHW33PL
FH33PL
FH33PLOE
PH33PLOE
FRANKLIN
1500591
FULLER
A2470
A2471
FURUKAWA
3108245R91
FWD CORP
200482
202792
204214
GALION
159159
48861
78280
79360
D48861
D78280
D79360
GENERAL MOTORS CORP
25013194
5572600
5572942
5573012
5573013
5574971
5575134
5575176
5575208
5575224
5576067
5576446
5577122
5577250
55778014
5578014
6427275
6436145
6437275
6438209
6438590
TL6209
GIESSE
LH3812
LH78
GLOBAL FILTERS
20009
GONHER
G33
G33M
GP33E
GOULD
P197
P197MB
GRADALL
76113484
GRAINGER
2KXZ7
GREYFRIARS
656P
GROVE
9437100063
9437100139
GUARDIAN FILTER CO
G051133
G051176
GUD
G529FT
GUIOT
GE3300
HARMO
P181
HASTINGS PREMIUM FILTERS
LF219
HAVOLINE
HSO102
HEAVY DUTY AIR
A15013
HENGST
E23036H
E230H
T68010001
HERCULES
290283DS
290305A
290305B
290306
290315AS
290383
290969AS
HIFI
SO509
HIGHFIL
THE107
HOUGH
131470H1
HUBERWARCO
4E30246
HUTCHENS
SF78
HYSTER
234849
235849
23584906
984636
984637
IHC INTERNATIONAL HARVESTER
131470H
140773H1
319826R91
612724C91
INGERSOLLRAND
35290626
50430024
59507368
595075568
59507568
91677335
91677336
92092220
W76118
IRLEMP
EP7810M
EP7820M
JCB
32300518
JOHN BEAN
3A7733
JOHN DEERE
AR29554
AR29554R
AR30643
AR30643R
AR36043R
JOY
5276313
5276319
KDC PARTS
304350
KENWORTH
5574486
KW509
KIRKALDIE ENG
KL504
KNECHT
EH325
EH3250
EH335
OX5
KOEHRING
13414
P21366
KORODY COLYER
FP20HD
KRALINATOR
L858
L930
L930G
L932A
L932AG
L932AH
LAUTRETTE
ELH401
ELH4401
ELHA4009
LB FILTER
L125H
L214
LEDERER
LP78
LEE
EL78
LETOURNEAUMARATHON
SP6292
SP6298
SU6848
SV6848
TL6698
VZ2854
WA7583
LEYLAND
ABU8545
LIEBHERR
5000931
5502278
6426988
LINDE
T068010001
LPM LIFT PARTS MFG
13505133
L33
LTH
LTH33
LUCAS
R109
R110
M FILTER
MO106
MO106P
MACK
236GB240
3076CH33APL
MANN HUMMEL
H10105X
H10671
H10671X
H10671Z
H11106
H111061
MANN-FILTER
6761255146
MARINE PERFORMANCE LINE
MPL791N
MASSEY FERGUSON
1087415M91
1755206M1
1755206M91
5573104
835514
835514M91
MASTE
D81A
MICRO PORE
PM33
MIGHTY
M33A
M33APL
MINNEAPOLISMOLINE
10A12102
10A15625
10P1786
10P786
MOBIL
MC78
MOPAR
L67
MOTORCRAFT
EFL212
EFL266
FL29
FL29FP
FL40
MUIRHILL
253376
MULTIHOE
1492P
NAPA GOLD
1130
1133
1133MP
1136
4133
NATIONAL STOCK NUMBER
2940005806283
NELSON
83009A
83009B
88021A
WPF157
NELSONWINSLOW
WCH33PL
WFP132
WPF132
WPF132P
WPF157P
NEW IDEA
704944
NORDBERG NORSEMAN
3890575
O & K
599912
ORENSTEIN KOPPEL
103804
8004936
P H HARNISCHFEGER
1046Z121
1046Z165
1046Z188
1146Z4
45060
46Z36
PARTS SERVICE INT
FO122
PBR
AC1031
AC3017
AC3064
PERLINI
702248T
PERRY
PL98
PETERBILT
PB509N
PETTIBONEMULLIKEN
2030P
EPP63
LL13562
PHILLIPS 66
P781
POCLAIN
1050545
150448
150545
158545
M0450512
W1050545
POWERPART
AM041912
PURE FLOW
PLF132
PURFLUX
L156
L156A
PUROLATOR
60361
EP78
EP781
EP7810
L50078
L50780
MF481
MF481A
PM2140
QUAKER STATE
QSC33A
REFILCO
132M
151M
157M
RENAULT
3139010
3180836
3620612
REXNORD
29882900
RICHIER
552442365
556019309
ROLPAK
AP132FF
APQ132FF
APQ157HYD
ROMAN
HD4124
LU698
RYCO
R2312
R2328
R2328P
R294P
R294PB
R294V
SAKURA
O6503
SAUERDANFOSS
9700456
SAURER
3F12181
SAVARA
2181110
218130
920073
92007317
92007517
92007617
92007717
92007817
92152917
921655
92165517
SF
SO1289
SOPARIS
CAP280
CAP384
STAY READY
SRP132
SRPPF150
SRPPF157
STEIGER
22038
SULLAIR
40285
40400
SURE FILTER TECHNOLOGY
SFO0132
TECFIL
PL1321
PS562
TECNOCAR
OP262
OP263
OP33
TEHO FILTER
D81
TEREX
2301851
5573019
TIMBERJACK
403755
TRUCK CARE
7105010
UFI FILTERS
2544700
2544701
2554700
UNITED ENGINE LIFE
APF132
APF132P
FCH1652P
FCH1652PL
UNOCAL 76
OF1133
VALMET
807201215
VALTRA
807201360
VOLVO
267518
2675189
4095654
62129697
6617509
6631812
M4095654
M409654
WABCO
KC6086
SP6289
SU6468
TG1650
TL9450
WARNER
WLP132
WESTERN TOOL CO
P157
P232
WGB
S201CP
S74CP
WHITE
10P1876
290305AB
892972
A12102
WINSLOW
CL33PL
WPF150
WXPF132
WITTE
47313082
47313083
WIX
24133
51130
51133
51133MP
51136
551133
93P
CW133MP
CW133MPW
CW133MPWP
CW133P
CW136MP
CW203MP
WOODGATE
WGL509
WOODS COPELAND
340202
WORTHINGTON
2687
FLR161
FLR170
WYTWORNI
WO1511023025
YALE
2039785
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| AILSA CRAIG | G-Series | G 4 D | n/a | n/a | n/a | View |
| AILSA CRAIG | G-Series | G 6 D | n/a | n/a | n/a | View |
| AILSA CRAIG | G-Series | G 61 | n/a | n/a | n/a | View |
| AILSA CRAIG | G-Series | G 62 | n/a | n/a | n/a | View |
| AILSA CRAIG | G-Series | G 62 D | n/a | n/a | n/a | View |
| ALLISON TRANSMISSION | AT-Series | AT 540 | n/a | n/a | n/a | View |
| ALLISON TRANSMISSION | AT-Series | AT 545 | n/a | n/a | n/a | View |
| ALLISON TRANSMISSION | HT-Series | HT 700 | n/a | n/a | n/a | View |
| ALLISON TRANSMISSION | MT-Series | MT 600 | n/a | n/a | n/a | View |
| ALLISON TRANSMISSION | MT-Series | MT 644 | n/a | n/a | n/a | View |
| ALLISON TRANSMISSION | MT-Series | MT 654 COOLER | n/a | n/a | n/a | View |
| ATLAS COPCO | PTHS-Series | PTHS 1200 GD | GM 8V71L | n/a | n/a | View |
| ATLAS COPCO | XA/XAS/XASS-Series | XA/XAS 210 | Cummins 4-71 | n/a | n/a | View |
| BARTH | 1. | K 200 | Deutz | n/a | n/a | View |
| BOMAG | BW-Series | BW 210 (A) | GMC | n/a | n/a | View |
| BUCYRUS | 1. | 22 RB1 CD | Detroit | n/a | n/a | View |
| BUCYRUS | 1. | 25 SC | Detroit | n/a | n/a | View |
| BUCYRUS | 1. | 30 RBH | Detroit | n/a | n/a | View |
| BUCYRUS | 1. | 38 RB | Detroit | n/a | n/a | View |
| BUCYRUS | 1. | 71 RB | Detroit 12V71 | n/a | n/a | View |
| CHALLENGER | TERRA GATOR | TG 1603 | Cat 3208T | n/a | n/a | View |
| CLARK-MICHIGAN | 1. | 125C | Cummins N855C-235 | n/a | n/a | View |
| CLARK-MICHIGAN | 1. | 55B | Cummins V378C | n/a | n/a | View |
| CLARK-MICHIGAN | 1. | 75 IIIA | n/a | n/a | n/a | View |
| CLARK-MICHIGAN | 1. | 85 | n/a | n/a | n/a | View |
| CRUSADER | 1. | D 170 | n/a | n/a | n/a | View |
| CRUSADER | D-Series | D 478 | n/a | n/a | n/a | View |
| CRUSADER | DH-Series | DH 478 | n/a | n/a | n/a | View |
| CRUSADER | V6-Series | V6-120 CHALLENGER | n/a | n/a | n/a | View |
| CRUSADER | V6-Series | V6-170 CHALLENGER/CHARGER | n/a | n/a | n/a | View |
| CRUSADER | V6-Series | V6-240 CHARGER | n/a | n/a | n/a | View |
| DETROIT | 1. | 12 V-71 | n/a | n/a | n/a | View |
| DYNAPAC (WINGET) | CA-Series | CA 15 | GM Detroit | n/a | n/a | View |
| EUCLID | R-Series | R 22 | Detroit | n/a | n/a | View |
| EUCLID | R-Series | R 35 | Detroit | n/a | n/a | View |
| EUCLID | R-Series | R 50-301 LD | Cummins | n/a | n/a | View |
| FAUN | K-Series | K 22.2B | n/a | n/a | n/a | View |
| FAUN | K-Series | K 24.2 (A) | n/a | n/a | n/a | View |
| FAUN | K-Series | K 35.3 | n/a | n/a | n/a | View |
| FAUN | K-Series | K 40.4 (A) | n/a | n/a | n/a | View |
| FAUN | K-Series | K 55.5 | n/a | n/a | n/a | View |
| FAUN | K-Series | K 85.5 | n/a | n/a | n/a | View |
| FIAT | 1. | 14 B | Fiat | 1973 | n/a | View |
| FIAT | AD-Series | AD 10 C | Fiat | n/a | n/a | View |
| FIAT | AD-Series | AD 12 | Fiat | n/a | n/a | View |
| FIAT | BD-Series | BD 12 | Fiat | n/a | n/a | View |
| FIAT | FD-Series | FD 20 | Fiat | n/a | n/a | View |
| FIAT | FG-Series | FG 75 | n/a | n/a | n/a | View |
| FIAT | FG-Series | FG 85 | n/a | n/a | n/a | View |
| FIAT | FG-Series | FG 95 | n/a | n/a | n/a | View |
| FIAT | FL-Series | FL 10 C | Fiat | n/a | n/a | View |
| FIAT | FL-Series | FL 20 | Fiat | n/a | n/a | View |
| FIAT | OM-Series | OM FD 20 | Fiat | n/a | n/a | View |
| FOX RIVER | 1. | 6644 | GM | n/a | n/a | View |
| FRANKLIN | 1. | 142 A/XL | GM 4.53 | n/a | n/a | View |
| FRANKLIN | 1. | 170 XLN | GM 4.53 | n/a | n/a | View |
| GALION | GC-Series | GC 9617 | GM | n/a | n/a | View |
| GM | 1-Series | 4-71 N | n/a | n/a | n/a | View |
| GM | 1. | 8 V 71 L | n/a | n/a | n/a | View |
| GRADALL | G-Series | G 1000 | GM | n/a | n/a | View |
| GRADALL | G-Series | G 1000 (TM) | GM-DIESEL | n/a | n/a | View |
| GRADALL | G-Series | G 600 | GM-DIESEL | n/a | n/a | View |
| GRADALL | G-Series | G 660 | GM-DIESEL | n/a | n/a | View |
| GRADALL | G-Series | G 800 | GM-DIESEL | n/a | n/a | View |
| GRADALL | G-Series | G 880 | GM | n/a | n/a | View |
| GRADALL | G-Series | G 880 (CR.TM) | GM-DIESEL | n/a | n/a | View |
| GRAY MARINE | 1. | 4 D 277 | n/a | n/a | n/a | View |
| GROVE | TM-Series | TM 400 | n/a | n/a | n/a | View |
| HESSTON | 1. | 7650 | Detroit | n/a | n/a | View |
| HITACHI | FL-Series | FL 14B | n/a | n/a | n/a | View |
| INGERSOLL RAND | SP-Series | SP 54 | Detroit | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 225 C | Detroit 3-53 | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 308 | G.M. | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 380 | G.M. | n/a | n/a | View |
| KIRUNA | K-Series | K 250 | Volvo | n/a | n/a | View |
| KIRUNA | K-Series | K 250 | Cat | n/a | n/a | View |
| KOMATSU | D-Series | D 500 | Detroit V16V-71 | n/a | n/a | View |
| KOMATSU | D-Series | D 75 S-3 | NTO-6-C1 | n/a | 7001-> | View |
| LAVERDA | M-Series | M 150 Serie I | OM CP 3-1 | n/a | n/a | View |
| LIEBHERR | A/R-Series | R 942 (LC) | GB | n/a | n/a | View |
| LIEBHERR | LG-Series | LG 1250 | GMC 12V71T(KRAN OM OM403) | n/a | n/a | View |
| LOKOMO | 1. | 919 | Valmet 411C5 | n/a | n/a | View |
| LOKOMO | 1. | 919 | Deutz F5L912 | n/a | n/a | View |
| LOKOMO | 1. | 925 | Perkins 6.354 | n/a | n/a | View |
| LOKOMO | 1. | 928 | Deutz BF6L913 | n/a | n/a | View |
| LOKOMO | TELILOKKERI-Series | TELILOKKERI | n/a | n/a | n/a | View |
| MASSEY FERGUSON | MF-Series | MF 11 | Perkins 4.248 | n/a | n/a | View |
| MASSEY FERGUSON | MF-Series | MF 44 (B) | Perkins 6.354 | n/a | n/a | View |
| OSHKOSH | TRUCK/BUS/CAR | M 911 | GM | n/a | n/a | View |
| PERLINI | DP-Series | DP 655 | Detroit 16V-71N | n/a | n/a | View |
| PH | OMEGA-Series | OMEGA 18 | Detroit 4-53N | n/a | n/a | View |
| RENAULT BUS-CAR | CRUISAIR | CRUISAIR PR2/ PR 3 (A) | Detroit DIESEL | n/a | n/a | View |
| RICHIER | N-Series | N 531 | n/a | n/a | n/a | View |
| ROADPACKER | ROADPACKER | ROADPACKER | GM | n/a | n/a | View |
| SMV | SL-Series | SL 12-1200 | SCANIA | n/a | n/a | View |
| SMV | SL-Series | SL 13-600 | SCANIA | n/a | n/a | View |
| TEREX | A-Series | A 31 | GM | n/a | n/a | View |
| TERRAGATOR | 1. | 1603 | Cat 3208T | n/a | n/a | View |
| TIMBERJACK | 1. | 308 | GM | n/a | n/a | View |
| TIMBERJACK | 1. | 380 | GM | n/a | n/a | View |
| VOLVO | 1. | 5350 B | Volvo TD71G | n/a | n/a | View |
| VOLVO | BM-Series | BM 442B | n/a | n/a | n/a | View |
| VOLVO | LM-Series | LM 1640 STD | Volvo D 100/ TD 100 | n/a | n/a | View |
| VOLVO | LM-Series | LM 1641 | Volvo D 100/ TD 100 | n/a | n/a | View |
| VOLVO BUS - CAR | B 10-Series | B 10M | THD 100E | 79->86 | n/a | View |
| VOLVO BUS - CAR | B 10-Series | B 10R | THD 100D | 78->84 | n/a | View |
Customers Also Bought
Baldwin P20-HD oil filter, 230.2 mm long × 112.7 mm diameter. Replaces 32300518, Acdelco 12132, Acdelco 12132W and more. In stock at Rico Europe.
