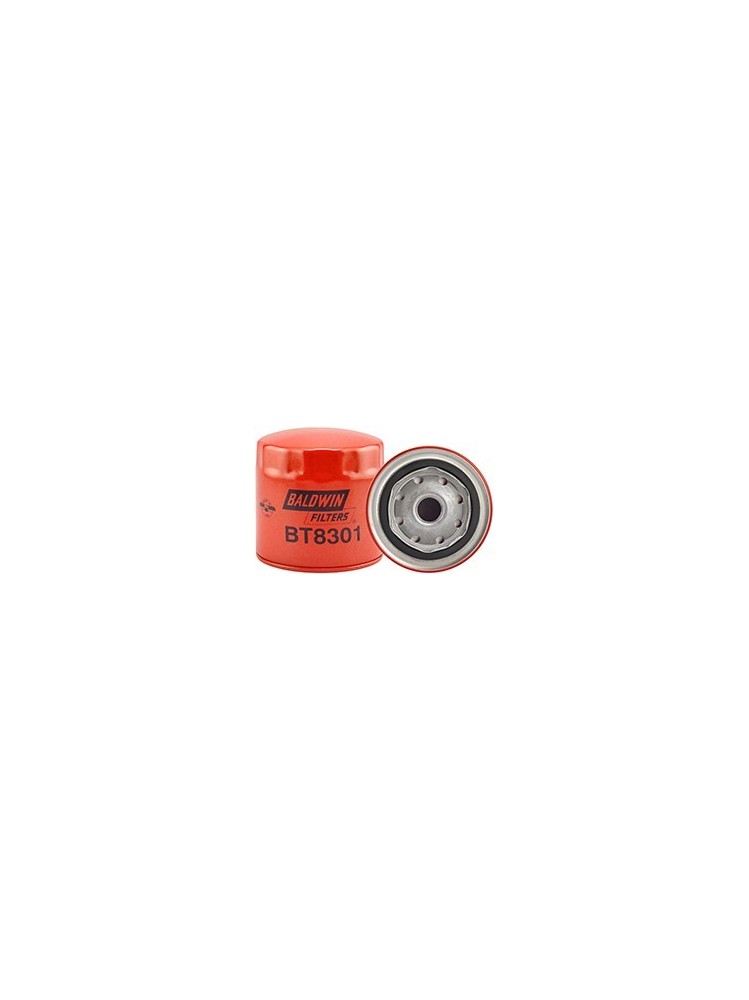

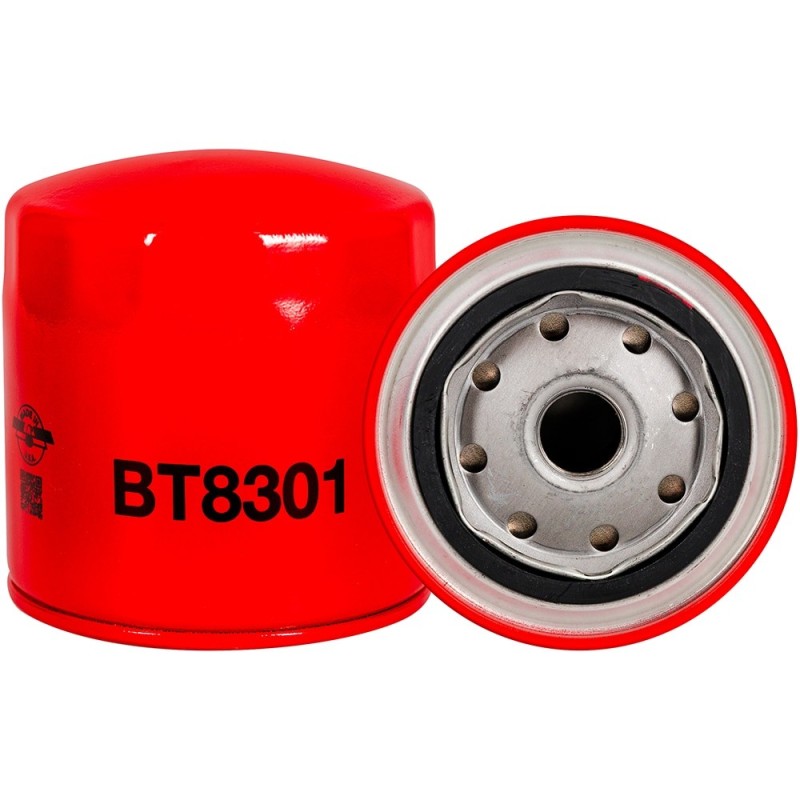

Baldwin BT8301, Hydraulic Filter Spin-on
£10.56
VAT excluded
Delivered within 1-2 Days
Description
The Baldwin BT8301 is a hydraulic filter, 100.8 mm long and 95.3 mm in diameter. It removes contaminants from hydraulic oil to protect pumps, valves and cylinders. It commonly replaces Atmos 627960921000, Digoema DGMH920, Donaldson P550940, Eurogarden 4300417, Eurogarden 4304679 and 32 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
3 31/32 (100.8)
Thread
3/4-16
Product Type
Hydraulic Spin-on
Outside Diameter
3 3/4 (95.3)
Gasket
Integral Gasket: G381-A
Application
Bolens, Ford, Hitachi, Husky, John Deere Equipment
Compatible Competitor Part Number
John Deere AM39653
Micron Rating
9.8 Nominal; 27 Absolute
Available in these brands
Cross References
AMC
OC16030
OC16050
OC16190
SC206
SC209
SFO43G0
SFO5011
YC206
ATMOS
627960921000
BALDWIN
BT8301
BT8803
BENFORD
800551
BIG A
91102
CASITE
CF3651A
CHAMP
PH2802A
PH710
DIGOEMA
DGMH920
DONALDSON
P550210
P550940
ELEMENTSIX
6201041020
EPPENSTEINER
50SL20P10
EUROGARDEN
4300417
4304679
EXXEL PTY LTD
14640063
FIAAM
FT4512HP
FLEETGUARD
HF6164
HF6446
FREIGHTLINER
DNP550210
GM
25010341
GONHER
GP3651A
GOODYEAR
L2844
GREYFRIARS
HS7625
HASTINGS
P784
HAVAM
HD0215
HIFI
SH56214
SH62101
HITACHI
AM39653
INGERSOLL RAND
93622322
JOHN DEERE
AET10701
KAESER
618761
618761A1
KNECHT
AW162
LAZORLITE
DT151
U111678
LPM
13504918
MANN
W92040
W92042
W92043
MANN AND HUMMEL
6750259866
WD920
MENGELE
98046069
MISFAT
12313100
MTD
7593605
NACCO MATERIALS
3145026
NEW HOLLAND
TR98D3596
NISSAN/UD TRUCKS
ADN12101E
ADN12102E
O & K
1499403
ONAN
1220185
OPEL
2867465
PRO FILTERS
DH710
DH920
PUROLATOR
PER309
RATIOPARTS
2011
30207
RENNER KOMPR.
10277
ROTORCOMP
R9206
SAKURA
C18042
C1819
SAUER SUNDSTRAND
9700314
SF
SPH94058
SF FILTER
SPH21001
SHIBAURA
S140516130
SOPARIS
OC104
STEINBOCK
54750
SURE FILTER
SFO2167B
TAKEUCHI
N1520843G00
TODD GT
2240126
TORO
232300
795270
TOYOTA
4015030370
4015030370H
UNIMAX
585036
UNITED CENTRAL INDUSTRIAL SUPP
688356
WALGAHN-MOTORENTECHN
811268
WISMET
WHS46358
ZF
3209308036
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| ARIENS | GT-Series | GT 18 | Kohler | n/a | n/a | View |
| ARIENS | GT-Series | GT 20 | Kohler MAGNUM M 20S | n/a | n/a | View |
| ATLAS COPCO | VT-Series | VT 5 | Deutz | n/a | n/a | View |
| ATMOS | PB-Series | PB 80 | n/a | n/a | n/a | View |
| BELAIR COMPRESSOR | ENCAP-Series | ENCAP 73 | n/a | n/a | n/a | View |
| BELAIR COMPRESSOR | R-Series | R SEC 10 C | n/a | n/a | n/a | View |
| BELAIR COMPRESSOR | SILVER | SILVER 5 V | n/a | n/a | n/a | View |
| BELAIR COMPRESSOR | UNIVER | UNIVER 10 | n/a | n/a | n/a | View |
| BELAIR COMPRESSOR | VEN | VEN 10 B 13 | n/a | n/a | n/a | View |
| BENFORD | 1. | 2.65 | Hatz SUPRA 1LD | n/a | n/a | View |
| BENFORD | BF-Series | BF 2.65 | Hatz SUPRA1LD | n/a | n/a | View |
| BOGE | S-Series | S 10 | n/a | n/a | <-31486 | View |
| BOGE | S-Series | S 10 | n/a | n/a | 31487-> | View |
| BOLENS | 1. | 1660 | n/a | n/a | n/a | View |
| CASE | MAMMUT-Series | 7400 MAMMUT | Volvo | 1.98-> | n/a | View |
| CASE | MAMMUT-Series | 7800 MAMMUT | MERC. OM 442LA | 1.98-> | n/a | View |
| CHAMPION COMPRESSORS | KA-Series | KA 7-13 | n/a | 01.2018 | n/a | View |
| CLARK-HURTH | HSW-Series | HSW 710 | n/a | n/a | n/a | View |
| CLARK-HURTH | HSW-Series | HSW 710 A | n/a | n/a | n/a | View |
| CLARK-HURTH | HSW-Series | HSW 800 A | n/a | n/a | n/a | View |
| CLARK-HURTH | HSW-Series | HSW 800 V | n/a | n/a | n/a | View |
| DEMAG | SC-Series | SC 25 | Deutz F2L1011 | n/a | n/a | View |
| FIAC | TKS | TKS 7.5 | n/a | n/a | n/a | View |
| GARDNER DENVER | ES-Series | ES 4 TEMPEST 2 | n/a | n/a | n/a | View |
| GARDNER DENVER | ES-Series | ES 5 TEMPEST 2 | n/a | n/a | n/a | View |
| GARDNER DENVER | ES-Series | ES 7 TEMPEST 2 | n/a | n/a | n/a | View |
| GARDNER DENVER | ESB-Series | ESB 4 | n/a | n/a | n/a | View |
| GARDNER DENVER | ESB-Series | ESB 5 | n/a | n/a | n/a | View |
| GARDNER DENVER | ESR-Series | ESR 4 | n/a | 2002-> | n/a | View |
| GARDNER DENVER | ESR-Series | ESR 5 | n/a | n/a | n/a | View |
| GARDNER DENVER | ESR-Series | ESR 5 | n/a | 2002-> | n/a | View |
| GARDNER DENVER | ESS-Series | ESS 11 | n/a | n/a | n/a | View |
| GARDNER DENVER | KA-Series | KA 7 | n/a | n/a | n/a | View |
| GARDNER DENVER | KDV-Series | KDV 15 | n/a | n/a | n/a | View |
| GARDNER DENVER | VS-Series | VS 10 | n/a | n/a | n/a | View |
| GREMO | 1. | 1050 F FORWARD | Cummins QSB | n/a | n/a | View |
| GREMO | 1. | 1050 F FORWARDER | Cummins QSB | n/a | n/a | View |
| GREMO | 1. | 950 M TURBO | Perkins | n/a | n/a | View |
| GREMO | 1. | 950 U TURBO | Perkins 1006.6T | n/a | n/a | View |
| GUERNET | ABRV-Series | ABRV 80 ES | n/a | n/a | n/a | View |
| GUERNET | GR-Series | GR 1010 | n/a | n/a | n/a | View |
| GUERNET | GR-Series | GR 1510 | n/a | n/a | n/a | View |
| GUERNET | UCR-Series | UCR 1010 | n/a | n/a | n/a | View |
| GUERNET | UCR-Series | UCR 1510 | n/a | n/a | n/a | View |
| HAFI | ACUD-Series | ACUD 7.5 | n/a | n/a | n/a | View |
| HURTH | HSW-Series | HSW 710 | n/a | n/a | n/a | View |
| HURTH | HSW-Series | HSW 710 A | n/a | n/a | n/a | View |
| HURTH | HSW-Series | HSW 800 A | n/a | n/a | n/a | View |
| HURTH | HSW-Series | HSW 800 V | n/a | n/a | n/a | View |
| HYDROVANE | 1. | 67 | n/a | n/a | n/a | View |
| HYDROVANE | 1. | 68 | n/a | n/a | n/a | View |
| HYDROVANE | 1. | 711 | n/a | n/a | n/a | View |
| HYDROVANE | 1. | 715 PUAS | n/a | n/a | n/a | View |
| HYDROVANE | 1. | 87 | n/a | n/a | n/a | View |
| HYDROVANE | 1. | 88 | n/a | n/a | n/a | View |
| IRMER + ELZE | 1. | 58 | Briggs STRATTON | n/a | n/a | View |
| JOHN DEERE | 2000-Series | 2243 | Kawasaki | n/a | n/a | View |
| JOHN DEERE | 2000-Series | 2243 D | Yanmar | n/a | n/a | View |
| JOHN DEERE | 2000-Series | 2243 E | John Deere GH3008D | n/a | n/a | View |
| JOHN DEERE | 2000-Series | 2653 A | Kawasaki | n/a | n/a | View |
| JOHN DEERE | 2000-Series | 2653 E | Kawasaki FD620D | n/a | n/a | View |
| JOHN DEERE | 300-Series | 317 | Kohler | n/a | n/a | View |
| JOHN DEERE | 300-Series | 330 | n/a | n/a | n/a | View |
| JOHN DEERE | 300-Series | 332 D | Yanmar 3TN66 | n/a | n/a | View |
| JOHN DEERE | 400-Series | 400 | Kohler | n/a | n/a | View |
| JOHN DEERE | 400-Series | 420 | n/a | n/a | n/a | View |
| JOHN DEERE | 500-Series | 540 H | John Deere | 2011-> | n/a | View |
| JOHN DEERE | F-Series | F 915 | Yanmar Eng | n/a | n/a | View |
| JOHN DEERE | F-Series | F 925 | n/a | n/a | n/a | View |
| JOHN DEERE | F-Series | F 935 | n/a | n/a | <-130726 | View |
| JOHN DEERE | F-Series | F 935 | Yanmar | n/a | 130727-> | View |
| JOHN DEERE | F-Series | F620 | Briggs & Stratton 20 HP | n/a | n/a | View |
| JOHN DEERE | F-Series | F910 | n/a | n/a | n/a | View |
| JOHN DEERE | F-Series | F911 | Kawasaki | n/a | n/a | View |
| JOHN DEERE | F-Series | F912 | Yanmar Eng | n/a | n/a | View |
| JOHN DEERE | F-Series | F930 | n/a | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 540 H | John Deere | 2011-> | n/a | View |
| JUNGHEINRICH | DFG-S-Series | DFG-S80 | Perkins 1104D E44TA | n/a | n/a | View |
| JUNGHEINRICH | DFG-Series | DFG 660 | Perkins 1104D E44TA | n/a | n/a | View |
| JUNGHEINRICH | DFG-Series | DFG 670 | Perkins 1104D E44TA | n/a | n/a | View |
| JUNGHEINRICH | DFG-Series | DFG 680 | Perkins 1104D E44TA | n/a | n/a | View |
| JUNGHEINRICH | DFG-Series | DFG 690 | Perkins 1104D E44TA | n/a | n/a | View |
| KAESER | AIRTOWER | AIRTOWER 11 | n/a | n/a | n/a | View |
| KAESER | AIRTOWER | AIRTOWER 8 | n/a | n/a | n/a | View |
| KAESER | MOBILAIR-Series | M 26 K | Kubota D 1105B | 2002-> | n/a | View |
| KAESER | SK-Series | SK 7 | n/a | n/a | n/a | View |
| KAESER | SM-Series | SM 11 5 ltr Container | n/a | n/a | n/a | View |
| KAESER | SM-Series | SM 11 9 ltr Container | n/a | n/a | n/a | View |
| KAESER | SM-Series | SM 6 9 ltr Container | n/a | n/a | n/a | View |
| KAESER | SM-Series | SM 8 9 ltr Container | n/a | n/a | n/a | View |
| KAESER | SX-Series | SX 7 AIRCENTER | n/a | n/a | <- 9L | View |
| MAHLER | ELEFANT | ELEFANT | VM PD706 | n/a | n/a | View |
| MEILI | VM-Series | VM 1800 | MAN | n/a | n/a | View |
| MENGELE | 1. | 5800 MAMMUT | Volvo TD71A | n/a | n/a | View |
| MENGELE | 1. | 6300 MAMMUT | Volvo TD121G | n/a | n/a | View |
| MENGELE | 1. | 6800 MAMMUT | Mercedes OM442A | n/a | <-272639 | View |
| MENGELE | 1. | 6800 MAMMUT | Mercedes OM442A | n/a | 272640-> | View |
| MENGELE | 1. | 7300 MAMMUT | Volvo TD1221ME | n/a | n/a | View |
| MENGELE | 1. | 7800 MAMMUT | Mercedes OM442LA | n/a | <-272639 | View |
| MENGELE | 1. | 7800 MAMMUT | Mercedes OM442LA | n/a | 272640-> | View |
| RANSOMES JACOBSEN | 1. | 6 E 12 | Kohler K301AOS | n/a | n/a | View |
| REMEZA | BK-Series | BK 10 | n/a | n/a | n/a | View |
| REMEZA | BK-Series | BK 10 A | n/a | n/a | n/a | View |
| REMEZA | BK-Series | BK 10 E | n/a | n/a | n/a | View |
| REMEZA | BK-Series | BK 5 | n/a | n/a | n/a | View |
| REMEZA | BK-Series | BK 5 E | n/a | n/a | n/a | View |
| REMEZA | BK-Series | BK 7 | n/a | n/a | n/a | View |
| RENNER | RS-Series | RS 5.5 | n/a | n/a | n/a | View |
| RENNER | RSC-Series | RS-C 3 (NK 40) | n/a | n/a | n/a | View |
| RENNER | RSC-Series | RS-C 4 (NK 40) | n/a | n/a | n/a | View |
| RENNER | RSR-Series | RSR (NK 40) | n/a | n/a | n/a | View |
| RENNER | RSR-TOP-Series | RS-TOP 3.0 (NK 40) | n/a | n/a | n/a | View |
| RENNER | RSR-TOP-Series | RS-TOP 4.0 (NK 40) | n/a | n/a | n/a | View |
| RENNER | RSR-TOP-Series | RS-TOP 5.5 (NK 40) | n/a | n/a | n/a | View |
| RENNER | RSR-TOP-Series | RS-TOP 7.5 (NK 40) | n/a | n/a | n/a | View |
| ROTORCOMP | NK-Series | NK 40-2 | n/a | 01.1998 | E.4183 | View |
| SULLAIR | F-Series | F 21 D | Deutz F1L511 | n/a | n/a | View |
| SULLAIR | F-Series | F 30 D | Deutz F2L512 | n/a | n/a | View |
| SULLAIR | F-Series | F 55 D | Deutz F3L912 | n/a | n/a | View |
| TAMROCK | DT-Series | DT 1130-SC | Mercedes OM904LA | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDMASTER 3000 D | Peugot XUD9 | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDMASTER 3280 D | Kubota D1105 | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 1000 L | Kawasaki | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 217 D | Kohler KT 17QS | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 220 D | Misubishi | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 223 D | Misubishi | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 225 | B+S DAIHATSU | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 228 D | Kubota | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 322 D | Misubishi | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 327 D | Misubishi | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 3280 D | Kubota | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 3320 | B+S DAIHATSU | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 52 | n/a | n/a | n/a | View |
| TORO | GROUNDMASTER | GROUNDSMASTER 72 | Renault | n/a | n/a | View |
| TURBOFOREST | 1. | 6100 | Iveco | n/a | n/a | View |
| UNIMAX | D-Series | D 25 | n/a | n/a | n/a | View |
| UNIMAX | D-Series | D 30 | n/a | n/a | n/a | View |
| UNIMAX | DV-Series | DV 1788 | n/a | n/a | n/a | View |
| UNIMAX | DV-Series | DV 1792 | n/a | n/a | n/a | View |
| VAIACAR | V-Series | V 504 + | Cat C4.4 | 2013 | n/a | View |
| VAIACAR | V-Series | V 704 R+ | Deutz TCD2013L04 | 2009-> | n/a | View |
| ZF | IRM-Series | IRM 301 | n/a | n/a | n/a | View |
| ZF | IRM-Series | IRM 302 VLD | n/a | n/a | n/a | View |
| ZF | IRM-Series | IRM 310 TROLL | n/a | n/a | n/a | View |
Customers Also Bought
SPA50048 Air Oil Separator
£56.24
OV6084 AIR/OIL SEPARATOR
£70.06
SAO 57770 Filter
£97.04
PA 77001 Filter
£5.07
SAO55330 Air Oil Separator
£42.13
RT5005 HYDRAULIC / TRANSMISSION Filter Spin-On
£8.44
RL3270, Oil Filter Spin-on
£4.47
RA7005, Air Filter
£8.45
SL8749 Air Filter | SF FILTER
£12.66
RAO8070 Air Oil Separator Filter
£44.54
Hifi SA12035 AIR FILTER
£8.41
RL3004 Oil Filter Spin-On
£5.90
RA6500, Air Filter
£8.46
Baldwin BT8301 hydraulic filter, 100.8 mm long × 95.3 mm diameter. Replaces Atmos 627960921000, Digoema DGMH920, Donaldson P550940 and more. In stock at Rico Europe.
