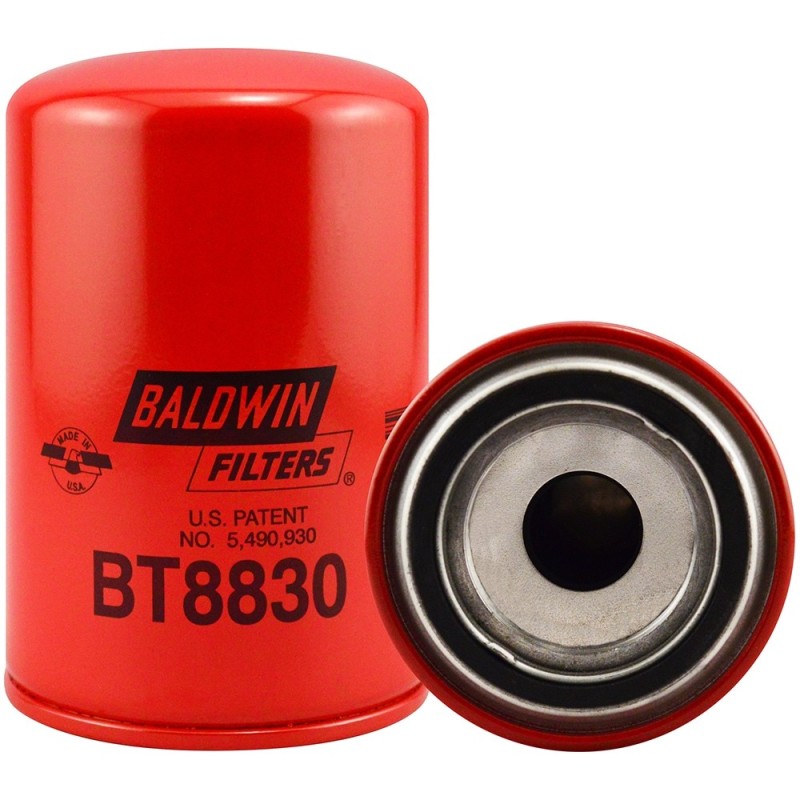

Baldwin BT8830, Transmission Spin-on
£32.06
VAT excluded
Delivered within 1-2 Days
Description
The Baldwin BT8830 is a filter, 143.7 mm long and 93.7 mm in diameter. It provides reliable filtration to protect the system from contaminants. It commonly replaces Alco SP1304, American PARTS 92474, Ammann 49502000402, Avelingbarford ABP3001583, Benati 3213398 and 104 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
143.7 mm (5.66 inch)
Overall Diameter
93.7 mm (3.69 inch)
Thread
2 - 16
Contains
20 PSID By-Pass Valve
Product Type
Transmission Spin-on
Outside Diameter
3 11/16 (93.7)
Gasket
Integral Gasket: G401
Application
Case, Clark, Fiat-Allis, Gradall, Volvo Equipment
Compatible Competitor Part Number
Clark 247050; Fiat 73118171; Volvo 11993686, 119936862
Micron Rating
5 Nominal; 25 Absolute
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Baldwin
|
BT8830 | 1 In stock | £32.06 |
Cross References
ALCO
SP1304
AMERICAN PARTS
92474
AMMANN
49502000402
ATLAS COPCO
5112280563
5112302498
5540114300
AVELINGBARFORD
ABP3001583
BALDWIN
BT8426
BT8426MPG
BT8830
BT8831
BENATI
3213398
3214307
3214639
BENFRA
54609
BERGERAT MONNOYEUR
E6814
BIG A
92382
BIG A FILTER
91129
BOMAG
31901320
BRAY
234090
BUSSE KUNTZE
HA008
CARQUEST
84129
85382
85474
CASE
D146735
D87214
CASE/CASE IH
146735
87214
CASESTEYR
219564A1
CATERPILLAR
0814780
1238189
3I1980
4587427
814780
CHAMPION
1623231
CLAAS
317437
3174370
322998
3229980
CLARK
234099
2366807
246262
247050
4202525
CLARK EQUIPMENT
119936862
247051
4202505
6247050
8106
COOPERS
HSM6182
CROSLAND
7538
DANA
420252590
4208237
4209211
DANA SPICER
10058664
146030808
DESMONDEQUIPMENTSACC
350007
DIECI
5H4209211
DIGOEMA
DGMH234099
DONALDSON
P174675
P550701
P552850
P574731
P761229
DYNAPAC
249993
EATON
2115522
FAI FILTRI
CK0234099
FENWICK
19982301
FERMEL
91500115
FIAAM
FT5546
FIAT
73118171
76094125
79104646
906041007
FILTRATION
FTH7547
FLEETGUARD
HF28996
HF6331
HF6420
FLEETRITE
HFR828996
HFR86420
FRAM
P7566
P8318
GEHL
L99184
GRADALL
90204732
91474250
GRAINGER
2NUA7
4EPY9
GREYFRIARS
HS7634
HS7639
GROVE
7437000873
HAMM
250678
2506785018
281875
HASTINGS PREMIUM FILTERS
HF701
HEDEN
29802075
HIFI
SH56470
SH66069
HITACHI
L79104646
HOIST LIFTTRUCK MANUFACTURING
P00052
HYDREMA
591050
HYSTER
1655472
2048273
8512669
IMPERIAL
CV102708
CV102712
INGERSOLLRAND
58886136
INTRUPA
83285
IF4037
JCB
04110147
04110147A
4110147
JLG
8008108
JUNGHEINRICH
50118485
KALMAR
116893
1336420
9210280004
9210970002
9234580449
KOEHRING
8320254
KOMATSU
9831967
DG4209211
LINDE LANSING
9982301
T726001189
LOESING
20527
LUBERFINER
LFH22034
LFH8799
M.D.F. SARL
MDH9110
MACK
5839HF28996
5839HF6420
MACLEAN ENGINERING & MKTG. CO.
1010385
MANITOU
108668
550145
MANN
WH9005
MATCH FILTER
9099014
MCCORMICK
MCD146735
NAPA
1382
NAPA GOLD
1474
7129
NATIONAL STOCK NUMBER
2940010382321
NEW HOLLAND
84478016
84550621
85806754
O & K
8004659
O K
8482831
PAUS
520072
PETTIBONE
LL16702168
LP68259X
POCLAIN
G0350595
Z1250578
PRO FILTERS
DH1775
DH701B
DH850
PUROLATOR
H35182
SAKURA
HC7913
SANDVIK
4697505
55071761
SF
SPH9250
SPH9877
SF FILTER
SPH9888
SMV
54104019
SOFIMA
CA0246
SPICER OFF HIGH
4206169
STEINBOCK
8171942
STERNER BLOMQUI
91094
SURE FILTER
SFH0145
SYSTEMS MATERIAL HANDLING
CL247050
TAMROCK
81587419
85187419
88308129
TAYLOR
4518019
TECFIL
DO062
PSH235
TECHNICAL FILTRATION
BSH6420
TEREX
707090584
7126349
TIMBERJACK
8410951
841095100
TOWMOTOR
972253
973251
TVH / MATCH
8106
UNITED CENTRAL INDUSTRIAL SUPP
323264
UP LIFTING VERTICAL S.A.
5490060009
VALMET
800815555
VAPORMATIC
CPK5593
VPK5593
VENIERI
1002020
237103
CSK5000P25A
CSK50P25
VS237103
VMC
HF174675
HF550701
HF552850
VOLVO
11992886
11993686
2340990
4720309
M0234099
WISMET
WHS46019
WIX
51474
551474
557129
57129
8890737
WOODGATE
WGH1924
WGH6420
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| ATLAS COPCO | JUMBO | JUMBO 135 M | Deutz | n/a | n/a | View |
| BENATI / BENMAG | 1. | 60 PSB | Perkins | n/a | n/a | View |
| BOMAG | BW-Series | BW 24 R | Cummins 4BT3.9 | n/a | n/a | View |
| CEMET AGRIP | SM-Series | SM 842 B | Deutz | n/a | n/a | View |
| CLAAS | RANGER | RANGER 911 T | Perkins | n/a | n/a | View |
| CLAAS | RANGER | RANGER 911T | Perkins 4.236T | 1997-> | n/a | View |
| CLARK | C-Series | C 500 Y110-155LPG | n/a | n/a | 3820-> | View |
| CLARK | DCS-Series | DCS 251 | Misubishi | n/a | n/a | View |
| CLARK | DPH-Series | DPH 50-75 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 15 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 20-25 B | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 20-30 L8025 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 20-30B | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 20-30C L6044 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 20-30C L6972 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 20-30L | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 20-30N | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 25 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 30 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 30M | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 6041 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 6042 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 6043 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 6044 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 6430 | n/a | n/a | n/a | View |
| CLARK | DPM-Series | DPM 6431 | n/a | n/a | n/a | View |
| CLARK | DPS-Series | DPS 20-30 | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 15 | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 20-25 B | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 20-30 L | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 20-30B | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 20-30C | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 20-30L/N | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 6041 | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 6042 | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 6043 | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 6430 | n/a | n/a | n/a | View |
| CLARK | GPM-Series | GPM 6431 | n/a | n/a | n/a | View |
| CLARK | GPS-Series | GPS 20-30 | n/a | n/a | n/a | View |
| CLARK-MICHIGAN | 1. | 45C | Perkins 6.354.4 | n/a | n/a | View |
| DAEWOO | MEGA-Series | MEGA 200 | n/a | n/a | n/a | View |
| FAUN-FRISCH | F-Series | F 1110 | Deutz | n/a | n/a | View |
| FIAT | FL-Series | FL 7 | Fiat | n/a | n/a | View |
| FIAT | FR-Series | FR 10 B | Fiat 8065DT | n/a | n/a | View |
| GROVE | AT-Series | AT 400 | Cummins | n/a | n/a | View |
| HAMM | GRW-Series | GRW 10 | Deutz BF 4M2012 | n/a | H1142242-> | View |
| HAMM | GRW-Series | GRW 10 | Cummins 4BT3.9 | n/a | n/a | View |
| HAMM | GRW-Series | GRW 10 | Deutz F6L912 | n/a | n/a | View |
| HAMM | GRW-Series | GRW 15 | Deutz F6L912 | n/a | n/a | View |
| HAMM | GRW-Series | GRW 15 | Deutz BF 4M2012 | n/a | H1142242-> | View |
| HAMM | GRW-Series | GRW 15 | Cummins 4BT3.9 | n/a | n/a | View |
| HAMM | GRW-Series | GRW 15.3 | Deutz | n/a | n/a | View |
| HAMM | GRW-Series | GRW 15/20/30 | Deutz F6L912 | n/a | n/a | View |
| HAMM | GRW-Series | GRW 18 | Cummins 4BT3.9 | n/a | n/a | View |
| HAMM | GRW-Series | GRW 18 | Deutz F6L912 | n/a | n/a | View |
| HAMM | GRW-Series | GRW 18 | Deutz BF 4M2012 | n/a | H1142242-> | View |
| HAMM | GRW-Series | GRW 20 | Deutz F6L912 | n/a | n/a | View |
| HAMM | GRW-Series | GRW 30 | Deutz F6L912 | n/a | n/a | View |
| HITACHI | FB-Series | FB 7 B | Fiat | n/a | n/a | View |
| HITACHI | FR-Series | FR 10 B | Fiat 8065DT | n/a | n/a | View |
| HITACHI | FR-Series | FR 100 | Fiat/Iveco | n/a | n/a | View |
| HITACHI | FR-Series | FR 7 | Fiat 8045 | n/a | n/a | View |
| HITACHI | FR-Series | FR 70 | Fiat | n/a | n/a | View |
| HITACHI | FR-Series | FR 90 | Fiat 8045T | n/a | n/a | View |
| HSM | 1. | 805 B | n/a | n/a | n/a | View |
| HSM | 1. | 805 B | Iveco | n/a | n/a | View |
| HSM | 1. | 904 | Iveco | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 1010 | Perkins 1004.4T | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 230 TURBO | Cummins | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 240 B | Cummins 4BTA3.9 | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 240 B | Cummins 4BT5.9 | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 240 C TURBO | Cummins | 1.90-> | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 240 TURBO | Cummins | n/a | n/a | View |
| JOHN DEERE FORWARDER/TIMBERJACK | 1. | 910 | Perkins | n/a | n/a | View |
| JUNGHEINRICH | DFG-S-Series | DFG-S80 | Perkins 1104D E44TA | n/a | n/a | View |
| JUNGHEINRICH | DFG-Series | DFG 660 | Perkins 1104D E44TA | n/a | n/a | View |
| JUNGHEINRICH | DFG-Series | DFG 670 | Perkins 1104D E44TA | n/a | n/a | View |
| JUNGHEINRICH | DFG-Series | DFG 680 | Perkins 1104D E44TA | n/a | n/a | View |
| JUNGHEINRICH | DFG-Series | DFG 690 | Perkins 1104D E44TA | n/a | n/a | View |
| KALMAR | 1. | 10-600 | Perkins | n/a | n/a | View |
| KALMAR | 1. | 13-600 | Perkins | n/a | n/a | View |
| KALMAR | PC-Series | PC 8-600 N | Perkins | n/a | n/a | View |
| LEBRERO | CNL-Series | CNL 82-4 | Cummins | 2002-> | n/a | View |
| LINDE | H-Series | H 140 | Perkins | n/a | n/a | View |
| MANITOU | MT-Series | MT 1140 TURBO ULTRA | Perkins | n/a | n/a | View |
| MANITOU | MT-Series | MT 430 CP/CPC/CPDS/CPS/CPL | n/a | n/a | n/a | View |
| MANITOU | MT-Series | MT 430 DCP/SCP | n/a | n/a | n/a | View |
| MANITOU | MT-Series | MT 450 CP | n/a | n/a | n/a | View |
| NORMET | VARIOMEC-Series | VARIOMEC 1060 D | Deutz F6L912W | n/a | n/a | View |
| PPM | A-Series | A 300 | n/a | n/a | n/a | View |
| ROSSI | 1. | 500 HDS | n/a | n/a | n/a | View |
| SANDVIK | DD-Series | DD 420-40 (C/E/EC) | Mercedes OM926 | n/a | n/a | View |
| VALMET | 1. | 832 | Valmet 411CS | n/a | n/a | View |
| VALMET | 1. | 838 | n/a | n/a | n/a | View |
| VOLVO | 1. | 4200 | Perkins 4.236 | n/a | n/a | View |
| VOLVO | L-Series | L 30 | Perkins 4.236 | n/a | n/a | View |
Customers Also Bought
RT5001 Oil Filter Spin-On
£6.03
RT5004 Oil Filter Spin-On
£8.36
Baldwin PA2423, Outer Air Filter Element with Lift Bar
£21.36
Volvo EC140B Filter Service Kit Serial No 10612-up Air, Oil, Fuel Filters
£110.17
RF1014 Fuel Filter Spin-On
£4.48
RF1013 Can Type Fuel Filter
£2.37
Baldwin PA3685, Inner Air Filter Element
£34.15
RT5020, Full-Flow Oil Filter Spin-on
£5.51
Baldwin BT8830 filter, 143.7 mm long × 93.7 mm diameter. Replaces Alco SP1304, American PARTS 92474, Ammann 49502000402 and more. In stock at Rico Europe.
