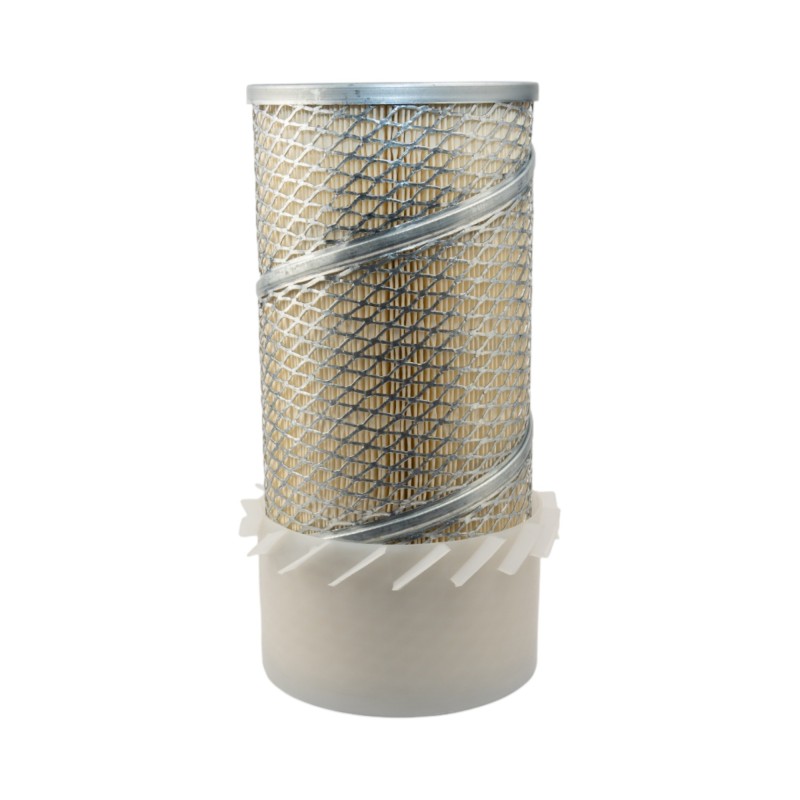

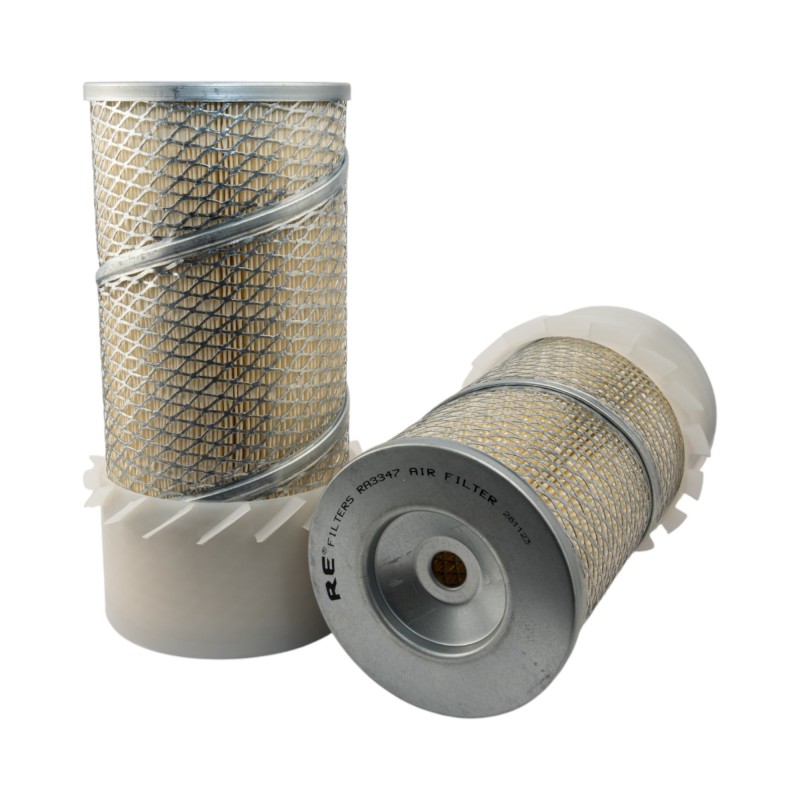

RA3347, Outer Air Filter Element with Fins
search
  • RA3347, Outer Air Filter Element with Fins
  • RA3347, Outer Air Filter Element with Fins
OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

RA3347, Outer Air Filter Element with Fins

11 In stock SKU: RA3347
£21.26
VAT excluded Delivered within 1-2 Days
Quantity

Description

The RE RA3347 is an air filter, 286.5 mm long and 133.4 Fins 161.1 mm in diameter. It traps dust and debris before they reach the engine, protecting it from premature wear. It commonly replaces Air REFINER ARM17803, American PARTS 94374, Baldwin PA3582FN, Baldwin PA3671, Baldwin PA3671FN and 46 other references. Fits: FAI PC45 Excavator w/Yanmar 4TNE84 Eng., KOBELCO K903C w/Isuzu 4JB1 Eng., K903 II w/Isuzu 4JB1 Eng., SK042 w/Yanmar 3TN100L Eng., SK50UR-1 w/Yanmar 3TN100L Eng., KOMATSU D20-7, D21-7 w/4D95S Eng., D20A-5, D20P-5, D20PL-5, D20PLL-5, D20Q-5, D20S-5, D21A-5, D21P-5, D21PL-5, D21PLL-5, D21Q-5, D21S-5 w/4D94 Eng., D20A-6, D20E-6, D20P-6, D20PL-6, D20PLL-6, D20Q-6, D20S-6 w/4D95S-W Eng., D20A-7, D20P-7 w/4 Cyl. Eng., D21A-5, D21P-5 w/4D95S-W Eng., D21A-7, D21P-7 w/4 Cyl. Eng., D21E-6, D21P-6B w/4D95S-W Eng., D21A-6, D21P-6, D21PL-6, D21Q-6, D21S-6 w/4D95S-W Eng., DDM020-3 Trimming Dozer, PC40-1, and many more. Supplied by Rico Europe with fast UK delivery.

Specifications

Part Number RA3347
Length 286.5mm
Overall Diameter 133.4 Fins 161.1mm
Internal Diameter 16.7mm

Available in these brands

Brand Reference Availability Price
RE
RA3347 11 In stock £21.26
Baldwin
PA3671-FN Order on request £22.94
Donaldson
P776615 Order on request £32.41
Hifi
SA18837 Order on request £23.96

Cross References

AIR REFINER
ARM17803
AMC
AF18620
AMERICAN PARTS
94374
BALDWIN
PA3582FN
PA3671
PA3671FN
BIG A FILTER
94394
CARQUEST
88374
88394
COOPERS
AEK2584
DIGOEMA
DGM01494K
DONALDSON
P776615
EUROFILTER
9209
FLEETGUARD
AA2914
AF25720K
AF4743K
FLEETRITE
AAR82914
AFR825720K
AFR84743K
FODEN
Y05770201
FRAM
CA7455
GFF
AF280085FN
GPC
FC3221K
GPC PATARINI VASCO
FC3221
GRAINGER
4ZRT7
HALLA
23G300102A
HASTINGS PREMIUM FILTERS
AF2100
HIFI
SA14693K
SA18837
SL5864
KOBELCO
2451U1543N
KOMATSU
6001817260
6001817400
6001817600
Z761817260
KRALINATOR
LA1399F
LOESING
22051
LUBERFINER
LAF8639
MANITOU
178032300171M
MITSUBISHI
9126105700
NAPA GOLD
6374
6394
RE FILTERS
RA3347
SAKURA
AS1168
SF FILTER
SL8061
SURE FILTER TECHNOLOGY
SFA6615PF
TECHNICAL FILTRATION
BSA4743
TOYOTA
178032300071
178032300171
17803F980171
17803F98017111C00
UFI
2730400
VMC
AF776615
WISMET
WAI41311
WIX
46374
46394
546374
546394
WOODGATE
WGA1017K
YALE
916131401

RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.

Machine Details

Manufacturer Series Model Engine Year Serial
ACODIM MAP-Series MAP 2000 Serie 5 Lister n/a n/a View
ATLAS COPCO QAS-Series QAS 30 Komastsu 4D95LW n/a n/a View
ATLAS COPCO QAS-Series QAS 40 Komastsu 4D95LW n/a n/a View
ATLAS COPCO QAS-Series QAS 50 Komastsu 4D95LW n/a n/a View
CAT DP-Series DP 19 Misubishi S4Q2 n/a n/a View
CAT DP-Series DP 20 (K) Misubishi S4S n/a n/a View
CAT DP-Series DP 25 (K/MC) Misubishi n/a n/a View
CAT DP-Series DP 30 Misubishi n/a n/a View
CAT DP-Series DP 40 Misubishi S6S n/a n/a View
CAT GP-Series GP 40K n/a n/a n/a View
DENYO DCA-Series DCA 30 SPK Komastsu 4D95LW n/a n/a View
DENYO DCA-Series DCA 40 Komastsu 4D95LW n/a n/a View
GREEN MECH ARB ARB 19/28 MT50 Isuzu 4LE1 2010 n/a View
GREEN MECH ARBORIST-Series ARBORIST 19/28 MT50 Isuzu 4LE1 01.2010 n/a View
GREEN MECH QUAD CHIP QUAD CHIP 160 Kubota n/a n/a View
HANIX N-Series N 350 Isuzu 4ZYL. n/a n/a View
HANIX N-Series N 41 n/a n/a n/a View
HANIX N-Series N 41 SS n/a n/a n/a View
HANIX N-Series N 450 Misubishi K4M n/a n/a View
HANIX N-Series N 450-2 Misubishi K4M n/a n/a View
HANIX S+B-Series S+B 25 n/a n/a n/a View
HANIX S+B-Series S+B 30 Misubishi K4M n/a n/a View
HANIX S+B-Series S+B 45 Misubishi S4K n/a n/a View
HANIX SB-Series SB 25 n/a n/a n/a View
HANIX SB-Series SB 30 n/a n/a n/a View
HANIX SB-Series SB 45 Misubishi n/a n/a View
HANIX SD-Series SD 33 n/a n/a n/a View
HAYTER R-Series R 314 Kubota n/a n/a View
HYUNDAI HSL-Series (Skid Steer Loader) HSL 610 Yanmar 4TNE88 n/a n/a View
HYUNDAI HSL-Series (Skid Steer Loader) HSL 810 Yanmar 4TNE88 n/a n/a View
KOMATSU D-Series D 20 A 4D94 n/a n/a View
KOMATSU D-Series D 20 A/S/P/Q/PL5 4D94 n/a 45001-> View
KOMATSU D-Series D 20 P 4D94 n/a n/a View
KOMATSU D-Series D 20 PL 5 4D94 n/a n/a View
KOMATSU D-Series D 20 Q 4D94 n/a n/a View
KOMATSU D-Series D 20 S 4D94 n/a n/a View
KOMATSU D-Series D 21 A 4D94 n/a n/a View
KOMATSU D-Series D 21 A/S/P/Q/PL5 4D94 n/a 45001-> View
KOMATSU D-Series D 21 P 4D94 n/a n/a View
KOMATSU D-Series D 21 PL 5 4D94 n/a n/a View
KOMATSU D-Series D 21 Q 4D94 n/a n/a View
KOMATSU D-Series D 21 Q 6 n/a n/a n/a View
KOMATSU D-Series D 21 S 4D94 n/a n/a View
KOMATSU D-Series D 21 S-6 Komastsu 4D95SW1 n/a 60001-> View
KOMATSU FD-Series FD 20 MAZDA XA n/a n/a View
KOMATSU FD-Series FD 20 P DA220 n/a n/a View
KOMATSU FD-Series FD 23 MAZDA XA n/a n/a View
KOMATSU FD-Series FD 23 P DA220 n/a n/a View
KOMATSU FD-Series FD 23-7 Isuzu C221 n/a n/a View
KOMATSU FD-Series FD 25-7 Isuzu C221 n/a n/a View
KOMATSU FD-Series FD 28 MAZDA XA n/a n/a View
KOMATSU FD-Series FD 28-7 Isuzu C221 n/a n/a View
KOMATSU FD-Series FD 30 DA220 n/a n/a View
KOMATSU FD-Series FD 35 DA220 n/a n/a View
KOMATSU FD-Series FD 35-4 6D95L-1 n/a n/a View
KOMATSU FD-Series FD 35-5 Isuzu 6D95L n/a n/a View
KOMATSU FD-Series FD 40 DA220 n/a n/a View
KOMATSU FD-Series FD 40-4 Komastsu n/a n/a View
KOMATSU FD-Series FD 50 DA220 n/a n/a View
KOMATSU FD-Series FD 60 DA220 n/a n/a View
KOMATSU FG-Series FG 20 VA n/a n/a View
KOMATSU FG-Series FG 25 VA n/a n/a View
KOMATSU FG-Series FG 30 VA n/a n/a View
KOMATSU FG-Series FG 35 ZT-4 Nissan P40 n/a 110001-> View
KOMATSU FG-Series FG 40 T-4 Nissan P40 n/a 130001-> View
KOMATSU FG-Series FG 40 ZT-4 Nissan P40 n/a 110001-> View
KOMATSU PC-Series PC 04-1 Komastsu 2D94-1 n/a n/a View
KOMATSU PC-Series PC 30-1 Yanmar n/a n/a View
KOMATSU PC-Series PC 30-2 Yanmar n/a n/a View
KOMATSU PC-Series PC 30-5 Yanmar n/a n/a View
KOMATSU PC-Series PC 40-1-2-3 Komastsu 3D94-2 n/a n/a View
KOMATSU PC-Series PC 60 n/a n/a n/a View
KOMATSU PC-Series PC 60-1-2/U1-2 Komastsu 4D94-2/ 4D94-3 n/a n/a View
KOMATSU PC-Series PC 60-2 n/a n/a n/a View
KOMATSU PC-Series PC 60-3 n/a n/a n/a View
KOMATSU PC-Series PC 60-3-5 Komastsu n/a 20501 View
KOMATSU PC-Series PC 60-5 n/a n/a n/a View
KOMATSU SD-Series SD 20-5 DA220 n/a n/a View
KOMATSU WA-Series WA 70-1 Komastsu 4D95L n/a n/a View
LISTER CPA-Series CPA 009 n/a n/a n/a View
LISTER CPW-Series CPW 4A009 n/a n/a n/a View
LISTER LPA-Series LPA 009 n/a n/a n/a View
LUGGER NL-Series NL 495 D n/a n/a n/a View
MANITOU SLT-Series SLT 415B LISTER PETTER LPWS 4 2004-> n/a View
MANITOU TMT-Series TMT 320 n/a n/a n/a View
MANITOU TWISCO-Series TWISCO n/a n/a n/a View
MITSUBISHI FD-Series FD 15 4DQ7 1.91-> n/a View
MITSUBISHI FD-Series FD 18 n/a 1991-> n/a View
MITSUBISHI FD-Series FD 30 Misubishi S4S n/a n/a View
MITSUBISHI FD-Series FD 35 Misubishi S 6E n/a n/a View
MITSUBISHI FD-Series FD 35A n/a n/a n/a View
MITSUBISHI FD-Series FD 40 n/a n/a n/a View
MITSUBISHI MXR-Series MXR 50 Misubishi K4M n/a n/a View
SHIBAURA S-Series S 330 n/a n/a n/a View
TOYOTA 1. 02-5 FDF 25 Toyota n/a n/a View
TOYOTA 1. 3 SDK 7 n/a n/a n/a View
TOYOTA 1. 5 FD 25 1DZ n/a n/a View
TOYOTA F-Series F 2550 DPJ Toyota n/a n/a View
TOYOTA FG-Series FG 18 4Y n/a n/a View
