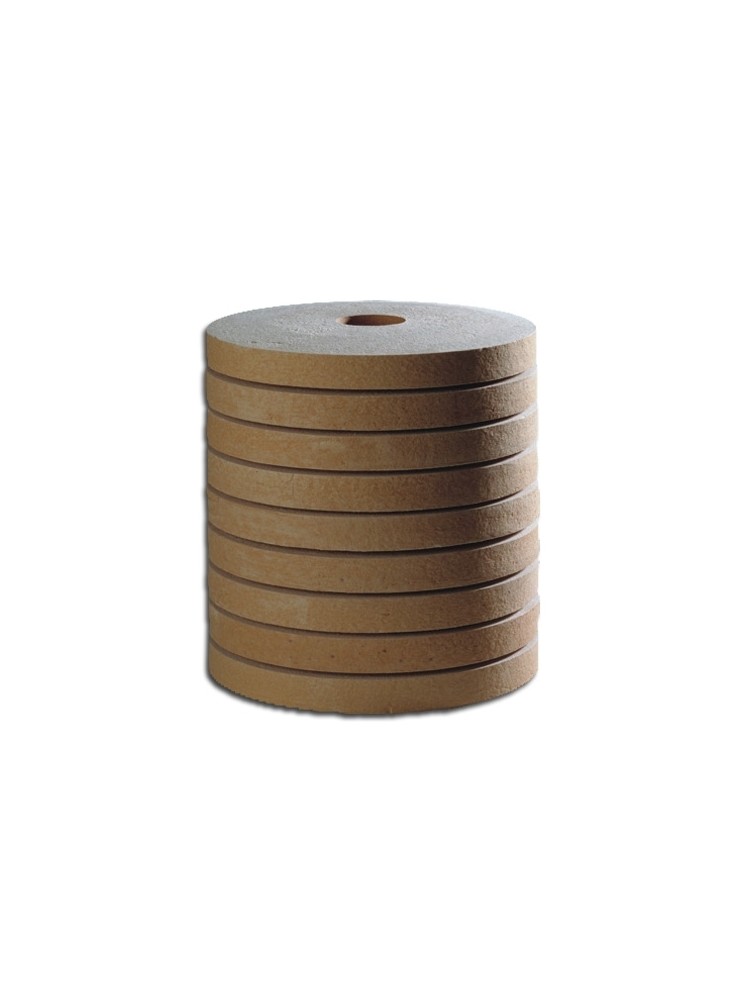

AK 27/27 CJC Filter Insert

The CJC™ AK 27/27 Filter Insert is engineered for use in CJC™ Fine Filters (HDU series) where low humidity content (below 50 ppm) and deep oil cleanliness are critical. It is based on the standard A-type insert but is extra dried and vacuum packed so the cellulose media contains minimal moisture — ideal for low-viscosity or warm oil applications.

Typical Applications

This insert is suited for fine filtration and moisture control in:

• Transformers and tap changers

• Small hydraulic systems

• Lube and circulating oil systems requiring low water content

The AK 27/27 removes all four contamination types — particles, water, varnish, and acidity — in a single offline process, helping protect system components and extend oil life.

Filtration Performance

Contamination Removal
All CJC™ Filter Inserts provide an oil filtration degree of 3 µm absolute, meaning:

• 98.7 % of particles larger than 3 µm are retained

• Approximately 50 % of particles larger than 0.8 µm are captured in one pass

The AK insert also has outstanding water absorption capability, helping achieve low moisture levels in oil — a key benefit in systems where dissolved and emulsified water must be minimised.

Dirt and Water Holding Capacity

Based on field experience and CJC testing, the AK 27/27 insert is documented to hold typical contamination capacities similar to other 27/27 CJC inserts, meaning efficient removal of solids and water over a long service life.

Construction and Materials

• Manufactured from bonded cellulose discs made from 100% natural cellulose fibres

• No plastics, no metals, no chemicals — easy to dispose of responsibly

• Designed for maximum depth filtration efficiency and high dirt holding capacity

Dimensions and Specification

• Filter Size: 27/27 (nominal)

• Article Number: PA5600313

The CJC™ AK 27/27 Filter Insert is an effective solution when low oil humidity and high filtration performance are required in industrial lubrication, hydraulic, and circulating oil systems.
