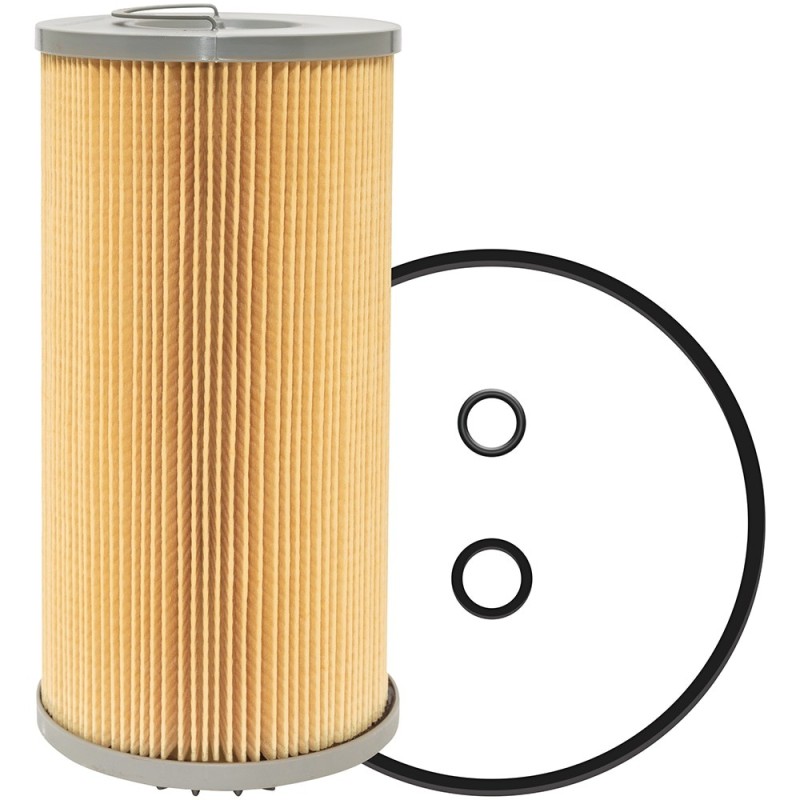

Baldwin PF7890, Fuel Filter Element with Bail Handle
£18.93
VAT excluded
Average lead time 7-10 days
Description
The Baldwin PF7890 is a fuel filter, 226.2 mm long and 109.5 mm in diameter. It removes dirt and water from the fuel supply to protect injectors and the fuel system. It commonly replaces Acdelco TP1045, Alliance ABP/N10GFS1206, American PARTS 563, Baldwin PF590, Baldwin PF7790 and 103 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
8 29/32 (226.2)
Contains
Emergency By-Pass Tab
Related To
PF7890-10, PF7890-30 (Media Difference)
Product Type
Fuel/Water Separator Element with Bail Handle
Outside Diameter
4 5/16 (109.5)
Inside Diameter
5/8 (15.9) & 13/16 (20.6)
Gasket
Furnished Gasket: G240, [1] Included
Application
Racor 1000FH Series Housings
Compatible Competitor Part Number
Racor 2020 Series
Micron Rating
5 Absolute
O Ring
[1] Included
Available in these brands
Cross References
ACDELCO
TP1045
ALLIANCE
ABPN10GFS1206
AMERICAN PARTS
563
BALDWIN
PF590
PF7790
PF7890
BELL
220086
BIG A FILTER
95212
BOWES
L2020F
CARQUEST
86212
86793
CATERPILLAR
3I1252
407384
4O7384
4P7384
9Y4446
CHAMPION
36107
CLEAN FUEL
590
CONTINENTAL
PC2020
DAHL
520W
DELUXE
264
DONALDSON
FFP552020
FFP922020
P552020
P552023
P922020
FLEETGUARD
FF217
FS1206
FS20201
FLEETRITE
FFR8217
FSR81206
FRAM
CS3504
GEMINI
G2020SM
GENERAL MOTORS CORP
25011710
5651736
GFF
FFE0040
GONHER
G2020S
GS2033
GS2033M
GRAINGER
2KXZ3
GREYFRIARS
4013F
HASTINGS PREMIUM FILTERS
FF1135
FF1235
HEAVY DUTY AIR
A16022
HIFI
FJ1206
SN920202
INDUCONTROL
CPL2020
KOMATSU
303173
KRALINATOR
F3212
FS753
FS7531
LOESING
1062007
LUBERFINER
L2020FN2
L2020FN21
MACK
5839FS1206
MANN
P1279
MANN HUMMEL
P12781
MANN-FILTER
P1279X
MARINE PERFORMANCE LINE
MPL3125
MICRONIC FILTER
4S4006
MOTORCRAFT
FD782
FD782FP
MTU
8690920012
NAPA GOLD
3212
3793
PRO FILTERS
CG2020
PURE FLOW
P2020S
PUROLATOR
F73008
PF3008
RACOR
1000FE
1000FG
1000MA
1020EO
20205M
2020SM
2020SM10
2020SMOR
731000EE
731000SERIES
73100EE
731020EO
751000FE
751000SERIES
771000FE
771000SERIES
791000FE
791000SERIES
80012
8002
800A30
800A5
800SERIES
RACOR 800
SERIES
ROMAN
CBO4021
SAKURA
F1902
F1907
SEPAR
20202
SF
SK3925
SURE FILTER TECHNOLOGY
SFF1206
TECFIL
P202
UNITED ENGINE LIFE
P37
VOLVO
36104
3831224
889425
WANDERLODGE
3831310
WISMET
WFU4374
WIX
33212
33793
WOODGATE
WGFS1206
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| CAT | 3000-Series | 3608 8LL1-> | n/a | n/a | 8LL1-> | View |
