Baldwin BF5810, Secondary Fuel Filter Spin-on
£10.96
VAT excluded
Delivered within 1-2 Days
Description

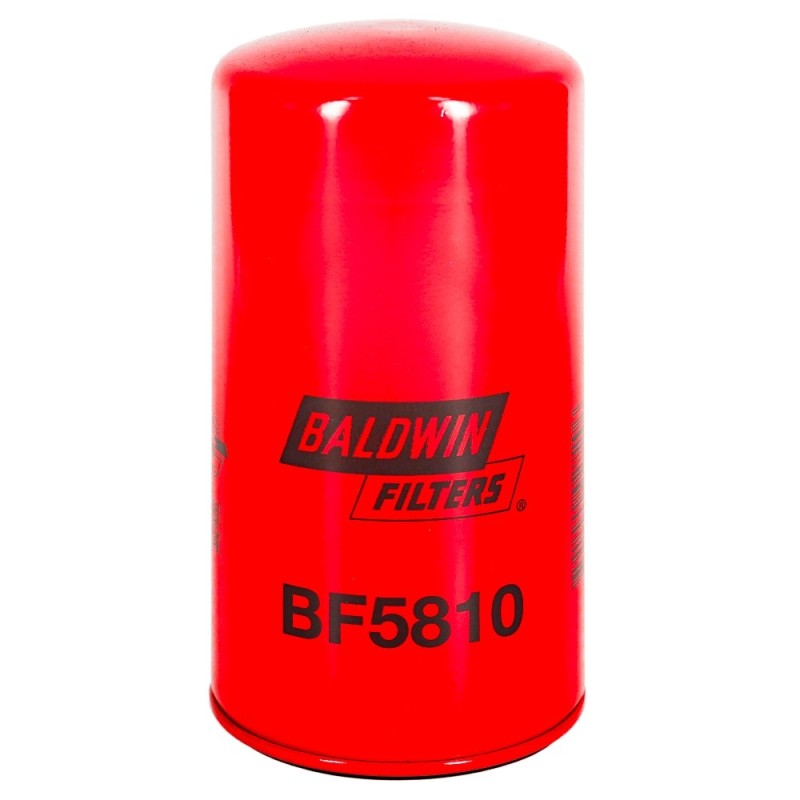

The Baldwin BF5810 is a fuel filter, 180.2 mm long and 93.7 mm in diameter. It removes dirt and water from the fuel supply to protect injectors and the fuel system. It commonly replaces Ac DELCO 12916, Acdelco PF902, Acdelco T916, Acdelco TP816, Acdelco TP916 and 202 other references. Supplied by Rico Europe with fast UK delivery.
Specifications
Length
7 3/32 (180.2)
Thread
13/16-12
Contains
Integral Post Seal
Product Type
Secondary Fuel Spin-on
Outside Diameter
3 11/16 (93.7)
Gasket
Integral Gasket: [1] Included
Application
Detroit Diesel Engines
Compatible Competitor Part Number
Detroit Diesel 23518482
Micron Rating
3 Nominal; 10 Absolute
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Baldwin
|
BF5810 | 1 In stock | £10.96 |
Cross References
AC DELCO
12916
ACDELCO
PF902
T916
TP816
TP916
TP916D
TP916L
ACT
FDF018
AGCHEM EQUIPMENT
29463
AGCO
72526444
AIR REFINER
PF206
ALCO FILTERS
SP885
AMERICAN PARTS
543
95120
95120MP
AP FILTERS
AP3256
APF3256A
APLOCKHEED
LK3256
AQUA POWER
6021
ATLAS COPCO
5540862500
5546862500
9709001002
AVELINGBARFORD
SL603100
SWT603100
BALDWIN
28946942
BF581
BF5810
BF5810B
BF581B
BARKOHYDRAULICS
53501137
BIG A FILTER
591
BOMAG
853535034
CARQUEST
86120
86120MP
CARRIER TRANSICOLD
300038100P12
CASE IHC
469442C1
CATERPILLAR
2266562
3I0751
3I1218
8T3911
9Y4418
CHAMPION LABORATORIES
FP816F
LFP816F
PF816F
CHAMPION SPARK PLUG
HF513
CHRYSLER
L305
CLARK EQUIPMENT
1992214
949839
961985
CLARK MATERIAL HANDLING CO
3576061
CMI
42828002
COACH GUARD
T121003
T121018
COOP
FF816
COOPERS
AZF052
Z129
CROSLAND
9302
CYCLONE
PM498
DELUXE
395
WD395
DETROIT DIESEL
23518482
23530707
25014342
DITCH WITCH
155952
DONALDSON
FFP170916
FFP550916
P550916
P556916
P779409
FACET
1147
FAMEL
FCS44
FIAAM
FT4942
FIAT
7722935
FILCA
FC260US
FILT
G1208EC
FILTER CONTROL LTD
FCL763
FILTER MEX
FS1147
FLEET GUARD
FFS206
FLEETGUARD
3300392S
FF206
FF5206
FLEETRITE
FFR8206
FFR85206
NF202
FLOLINE
Q816F
FLUXFILTER
DS1147
FLXIBLE
971739172
9717394
97520500164
975205360
FMC
3A10772
FORTIS
1FF206
FRAM
P1147
P1147A
P1147G
P1147GFP
P3823
GARDNERDENVER
6438840
GENERAL MOTORS CORP
25010777
25010778
25010794
25013261
5148171
6438836
6438838
6439246
6750046
9059910
GLOBAL FILTERS
40581
GONHER
GP27
GP27M
GP916F
GOULD
P498
GRADALL
76113482
GRAINGER
2FBB3
2KXP7
GREYFRIARS
810S
GROVE
9414100572
GUARDIAN FILTER CO
G033120
GUD
Z106A
HASTINGS PREMIUM FILTERS
FF993
HEAVY DUTY AIR
A16008
HENGST
H180WK
HIFI
FE206
SN206
SN40675
HIGHFIL
TF9363
INGERSOLL
0059512
59512483
INGERSOLLRAND
35290600
35308063
50616879
52200102
56928757
59507376
90304064
91786137
JOHN DEERE
AT41420
RE26814B
JOY
51942111
KENWORTH
KW206
KNECHT
KC31
KOEHRING
202648
28982
KOHLER
279261
KORODY COLYER
FBF581
KRALINATOR
F184
F184A
LB FILTER
L62
LETOURNEAUMARATHON
PB1613
LEYLAND
ABU8551
LINDE
E056017004
LTH
LTH27D
LUBERFINER
LFP816FD
LFP816FN
MACK
3076P1147G
5839FF5206
MANITOWOC
412195
MANN AND HUMMEL
WK95012
MARINE PERFORMANCE LINE
MPL498
MASSEY FERGUSON
AM043910
AMO43910
MICRO PORE
PHM1121
PHM1121P
MICRONIC FILTER
3F2026
MIGHTY
FS97
MOTORCRAFT
FD767
FD767FP
FG767
NAPA GOLD
3120
3120MP
ORENSTEIN KOPPEL
102631
8025185
P H HARNISCHFEGER
1046Z248
PBR
BG1524
PERRY
PF816
PETERBILT
PB206
PREVOST
510128
PRO FILTERS
FG206
PURE FLOW
PFF916
PURFLUX
6111748390
CS428
PUROLATOR
6694094
F60097
PER97
QUAKER STATE
QS1147
QS1147A
RYCO
Z106
SAKURA
FC6502
SF
SK3531
SURE FILTER TECHNOLOGY
SFF6916
TAMROCK
4521003
TECFIL
PS2206
PSC139
TEXACO
HDF3
TIMBERJACK
411229
8411229
TROJAN
6954525
TRUCK CARE
7206050
VAUXHALL GM
6439527
VERMEER
103804001
54392001
WANDERLODGE
3734175
6082390
WGB
S296CP
WHITE
27076198
WISMET
WFU37246
WIX
33120
33120MP
533120
WOODGATE
WGF206
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| ASTRA | BM-Series | BM 35 | GM | n/a | n/a | View |
| ASTRA | BM-Series | BM 42 | GM | n/a | n/a | View |
| ATLAS COPCO | MT-Series | MT 2000 | Detroit | n/a | n/a | View |
| ATLAS COPCO | MT-Series | MT 436 B | Detroit 60DDECIII | n/a | n/a | View |
| ATLAS COPCO | QAS-Series | QAS 168 | Detroit | n/a | n/a | View |
| ATLAS COPCO | QAS-Series | QAS 186 | Detroit | 2004-> | n/a | View |
| ATLAS COPCO | QAS-Series | QAS 228 GD | Detroit D50S | n/a | n/a | View |
| ATLAS COPCO | QAS-Series | QAS 278 GD | Detroit XDDXL12-7GD | n/a | n/a | View |
| ATLAS COPCO | QAS-Series | QAS 330 | n/a | n/a | n/a | View |
| ATLAS COPCO | QAS-Series | QAS 338 | Detroit | n/a | n/a | View |
| ATLAS COPCO | QAS-Series | QAS 366 | Detroit S60 | n/a | n/a | View |
| ATLAS COPCO | ST-Series | ST 1520 | Detroit | n/a | n/a | View |
| ATLAS COPCO | XASE-Series | XASE 745 | Detroit | n/a | n/a | View |
| CHALLENGER | 1. | 2505 | Detroit Diesel 8V-92 | n/a | n/a | View |
| DETROIT | 1. | 4-71 | n/a | n/a | n/a | View |
| DETROIT | 1. | 50 SERIES | n/a | <-1993 | n/a | View |
| DETROIT | 1. | 50 SERIES | n/a | 1994-> | n/a | View |
| DETROIT | 1. | 55 SERIES | n/a | n/a | n/a | View |
| DETROIT | 1. | 6 VF 214 | n/a | n/a | n/a | View |
| DETROIT | 1. | 6-71 | n/a | n/a | n/a | View |
| DETROIT | 1. | 6-71 E | n/a | n/a | n/a | View |
| DETROIT | 1. | 6-71 N | n/a | n/a | n/a | View |
| DETROIT | 1. | 6-71 T | n/a | n/a | n/a | View |
| DETROIT | 1. | 6-71 TAC | n/a | n/a | n/a | View |
| DETROIT | 1. | 6-71 TT | n/a | n/a | n/a | View |
| DETROIT | 1. | 6-71 TTAC | n/a | n/a | n/a | View |
| DETROIT | 1. | 60 SERIES | n/a | <-1991 | n/a | View |
| DETROIT | 1. | 60 SERIES | n/a | 1992-> | n/a | View |
| DETROIT | 1. | 8-71 | n/a | n/a | n/a | View |
| GM | 1. | 04 R 0005301 | n/a | n/a | n/a | View |
| GRADALL | G-Series | G 800 | GM-DIESEL | n/a | n/a | View |
| GROVE | RT-Series | RT 75 S | n/a | n/a | n/a | View |
| HESSTON | 1. | 7650 | Detroit | n/a | n/a | View |
| HITACHI | LX-Series | LX 230-3 | John Deere | n/a | n/a | View |
| HYSTER | H-Series | H 520 | Detroit | n/a | n/a | View |
| INGERSOLL RAND | HP-Series | HP 1300 BWGM | G.M | n/a | n/a | View |
| INGERSOLL RAND | HP-Series | HP 600 WP | G.M. | n/a | n/a | View |
| INGERSOLL RAND | SP-Series | SP 54 | Detroit | n/a | n/a | View |
| INGERSOLL RAND | XP/XHP-Series | XHP 750 SGM | G.M | n/a | n/a | View |
| INGERSOLL RAND | XP/XHP-Series | XP 1400 BWGM | G.M | n/a | n/a | View |
| KASSBOHRER | TRUCK/BUS/CAR | S 215 HDH-2 | Detroit D.DDA | 09.85->02.99 | n/a | View |
| KASSBOHRER | TRUCK/BUS/CAR | S 215 HDH-3 | Detroit D60-DDEC | 03.99-> | n/a | View |
| KASSBOHRER | TRUCK/BUS/CAR | S 217 HDH-3 | Detroit D.60-DDECIII | 03.95-> | n/a | View |
| MAIT | HR-Series | HR 260 | GM | n/a | n/a | View |
| OSHKOSH | TRUCK/BUS/CAR | M 911 | GM | n/a | n/a | View |
| SANDVIK | TORO-Series | TORO 1400 | Detroit | n/a | n/a | View |
| STERLING | TRUCK/BUS/CAR | AT 9500 | DDC60 | 2003-> | n/a | View |
| STERLING | TRUCK/BUS/CAR | AT 9513 | DDC60 | 2003-> | n/a | View |
| STERLING | TRUCK/BUS/CAR | AT 9522 | DDC60 | 2003-> | n/a | View |
| STERLING | TRUCK/BUS/CAR | ST 9500 | DDC60 | 2003-> | n/a | View |
| TEREX | TA-Series | TA 35-7 (A917) | Detroit SERIE 60 | 2005->2010 | n/a | View |
| TEREX | TA-Series | TA 40 | Detroit | n/a | Version 2 | View |
| TEREX | TA-Series | TA 40 | Detroit | n/a | Version 1 | View |
| TEREX | TA-Series | TA 40-7 (A865) | Detroit SERIE 60 | 2005->2010 | n/a | View |
| TEREX | TA-Series | TA 400 | Detroit | n/a | n/a | View |
| VERMEER | 1. | 850 | G.M. | n/a | n/a | View |
| VERMEER | T-Series | T 850 | GM 6V92TA | n/a | n/a | View |
