Baldwin RS3505, Radial Seal Inner Air Filter Element
search
  • Baldwin RS3505, Radial Seal Inner Air Filter Element
OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

Baldwin RS3505, Radial Seal Inner Air Filter Element

1 In stock SKU: RS3505
£21.11
VAT excluded Delivered within 1-2 Days
Quantity

Description

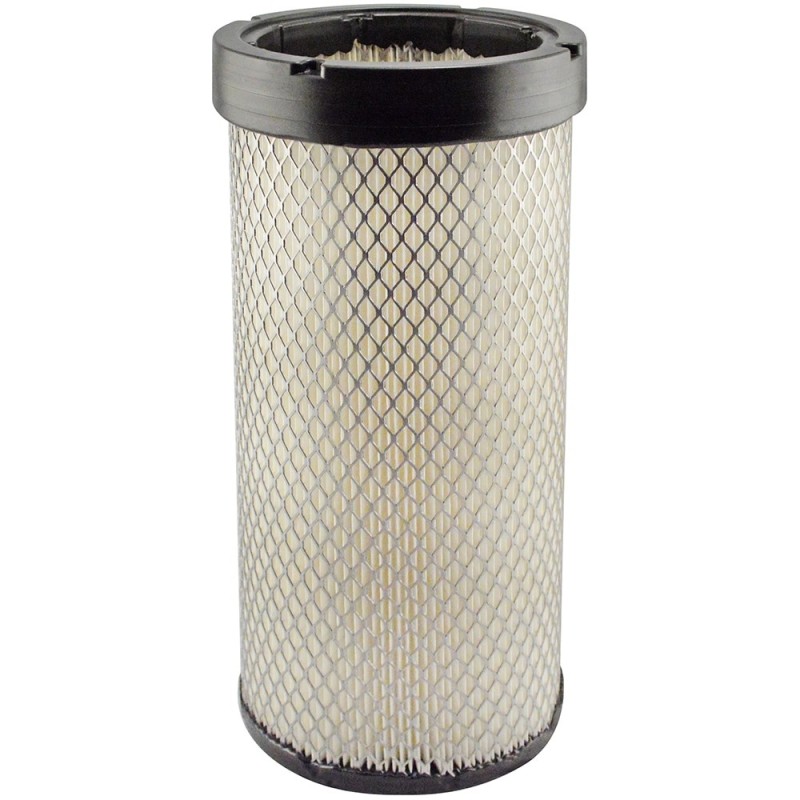

The Baldwin RS3505 is an air filter, 320.7 mm long and 149.2 mm in diameter. It traps dust and debris before they reach the engine, protecting it from premature wear. It commonly replaces Acdelco A1594C, Agco 3782387M1, Air REFINER ARM2502, Airfil AFA9802PU, Alco MD7502S and 52 other references. Supplied by Rico Europe with fast UK delivery.

Specifications

Length 320.7 mm (12.63 inch)
Overall Diameter 149.2 mm (5.87 inch)
Internal Diameter 104.8 mm (4.13 inch)
Product Type Radial Seal Inner Air Element
Outside Diameter 5 7/8 (149.2)
Inside Diameter 4 1/8 (104.8) One End
Application Caterpillar Equipment
Compatible Competitor Part Number Caterpillar 6I2502

Available in these brands

Brand Reference Availability Price
Baldwin
RS3505 1 In stock £21.11
Alco
MD-7502S Order on request £18.53

Cross References

ACDELCO
A1594C
AGCO
3782387M1
AIR REFINER
ARM2502
AIRFIL
AFA9802PU
ALCO
MD7502S
BALDWIN
RS3505
BIG A FILTER
94478
BUSSE & KUNTZE
LE645
CARQUEST
88478
CATERPILLAR
612502
6I2502
COOPERS
AES2685
DELSA
DR5107B
DIGOEMA
DGML3505
DONALDSON
P532502
FILTERLAND
FLR5107B
FLEETGUARD
AF25026
AF25126
AF25126M
FLEETRITE
AFR825026
AFR825126
AFR825126M
FRAM
CA7486SY
GENERAL MOTORS CORP
25313901
GFF
AF316110PU
GPC
FC893
GRAINGER
2KZE2
GREYFRIARS
1620A
HASTINGS PREMIUM FILTERS
AF2201
HENGST
E591LS
HIFI
KA18321
SA16005
KRALINATOR
LA1516
LUBERFINER
LAF4502
MACK
5839AF25126M
MANN AND HUMMEL
4507457106
MANN HUMMEL
CF1574
MEGAFIL FILTROS
VRA537
MFILTER
A8371
NAPA GOLD
6478
PHOENIX
NA3501B
PRO FILTERS
DA2101
PUROLATOR
A55002
RADIALFIL
AS25126
RE FILTERS
RA2092
SAKURA
A5549MS
A5549S
A5550
A5571
SF
SL8994
SOFIMA
S7411A
SURE FILTER TECHNOLOGY
SFA2501SET
SFA2502S
TBFIL
AD6602
TECFIL
AS501
ASR501
UFI
2741100
WIX
46478
WOODGATE
WGA1099S

RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.

Machine Details

Manufacturer Series Model Engine Year Serial
BAUER MASCHINEN GMBH BG-Series BG 12 Cat n/a n/a View
CAT 100-Series 140 G Cat 3306 n/a n/a View
CAT 200-Series 215 D n/a n/a n/a View
CAT 200-Series 219 n/a n/a n/a View
CAT 200-Series 225 n/a n/a 76U1-> View
CAT 200-Series 225 Cat n/a 76 U View
CAT 300-Series 320 B Cat 3316 n/a 7JR3348-> View
CAT 300-Series 320 C (L/LN) n/a n/a GLA 02207 View
CAT 300-Series 320 CS Cat 3066 n/a EGL1-> View
CAT 300-Series 320 D Cat 2009-> PCX1-> View
CAT 300-Series 320 D/HK/L Cat 2008-> KLM1/SPN1/TDH1 View
CAT 300-Series 322 B-LN n/a n/a 1ZS942 View
CAT 300-Series 322 C-LN Serie BFK n/a n/a n/a View
CAT 300-Series 323 DL/DLN Cat C6.4 n/a ZMF00001-> View
CAT 300-Series 323 DL/DLN n/a n/a n/a View
CAT 300-Series 323 DLN/DS Cat 6.4 2006-> SED1-> View
CAT 300-Series 323 DLN/DS Cat 2006-> GDC1-> View
CAT 300-Series 323 DLN/DS Cat C6.4 2006-> RAC1-> View
CAT 300-Series 325 DLN/DL Cat 2006-> n/a View
CAT 3000-Series 3208 03Z1-> n/a n/a 03Z1-> View
CAT 3000-Series 3208 29A1-> n/a n/a 29A1-> View
CAT 3000-Series 3208 30A1-> n/a n/a 30A1-> View
CAT 3000-Series 3208 90N1-> n/a n/a 90N1-> View
CAT 500-Series 527 Cat n/a 2RS1/4NS1-> View
CAT 500-Series 527 Cat n/a n/a View
CAT 500-Series 530 B Cat 3306 n/a n/a View
CAT 500-Series 550 Cat n/a n/a View
CAT 500-Series 570 Cat n/a n/a View
CAT 500-Series 580 Cat n/a n/a View
CAT 900-Series 936 Cat n/a n/a View
CAT 900-Series 936 E n/a n/a n/a View
CAT 900-Series 936 F Cat n/a n/a View
CAT 900-Series 938 F n/a n/a n/a View
CAT 900-Series 938 G Cat n/a n/a View
CAT 900-Series 950 B n/a n/a n/a View
CAT 900-Series 950 E Cat n/a n/a View
CAT 900-Series 950 E Cat n/a 22Z3189-> View
CAT 900-Series 950 F n/a n/a n/a View
CAT 900-Series 950 F SERIE II Cat 3116DIT n/a n/a View
CAT 900-Series 950 G Cat 3126 n/a 2JS1-> View
CAT 900-Series 950 G n/a n/a n/a View
CAT 900-Series 953 Cat n/a n/a View
CAT 900-Series 953-/20Z1 Cat 3024 n/a 5Z1->/ 76Y1->/78Y1061 View
CAT 900-Series 955 K Cat D330T n/a n/a View
CAT 900-Series 955 K/ 955 L Cat D 330T n/a n/a View
CAT 900-Series 955 L Cat D 330T n/a n/a View
CAT 900-Series 960 F n/a n/a n/a View
CAT 900-Series 962 G Cat n/a 7BW1-> View
CAT 900-Series 962 G Cat n/a n/a View
CAT 900-Series 966 n/a n/a 33A View
CAT 900-Series 966 E Cat 3306 n/a 94X08747 View
CAT 900-Series 966 F SERIE II Cat n/a 3XJ1560 View
CAT 900-Series 973 C Cat n/a n/a View
CAT 900-Series 980 n/a n/a 89P<-1539 View
CAT 900-Series 980 n/a n/a 42H View
CAT 900-Series 980 (B) n/a n/a 89P 1540->1878 View
CAT CP-Series CP 643 Cat 3304 n/a n/a View
CAT CP-Series CP 653 Cat 3304 n/a n/a View
CAT CS-Series CS 643 Cat 3304 n/a n/a View
CAT CS-Series CS 653 Cat 3304 n/a n/a View
CAT D-Series D 5 n/a n/a 63J View
CAT D-Series D 5 n/a n/a 96J View
CAT D-Series D 5 LGP Cat n/a n/a View
CAT D-Series D 5 N-XL Cat 3126B n/a n/a View
CAT D-Series D 6 n/a n/a 47J <-2459 View
CAT D-Series D 6 n/a n/a 76A/ 83A View
CAT D-Series D 6 H Cat n/a n/a View
CAT D-Series D 6 H XL Cat n/a n/a View
CAT D-Series D 6 M LPG/XLP Cat 3116T n/a n/a View
CAT D-Series D 6 M/MXL/MLGP Cat 3116 n/a n/a View
CAT D-Series D 6 N n/a n/a ALY 00751-> View
CAT D-Series D 6 N XL Cat n/a n/a View
CAT D-Series D 6 R Cat C9 n/a n/a View
CAT D-Series D 6 R Cat n/a n/a View
CAT D-Series D 6 R II Cat 4ZF1- n/a n/a View
CAT D-Series D 6 R III Cat THX1/THY1 n/a n/a View
CAT D-Series D 6 T Cat n/a n/a View
CAT IT-Series IT 38 F Cat 3116 n/a 6FN1/5DR1-> View
CAT PS-Series PS 500 Cat n/a n/a View
CHALLENGER 1. 45 Cat 3116ATAAC 2002-> n/a View
CHALLENGER MT-Series MT 555 B AUTOPOWER IV Cat 3056E n/a n/a View
CHALLENGER MT-Series MT 555 B TECHSTAR CVT Cat 3056E n/a n/a View
CHALLENGER MT-Series MT 565 Sisu n/a n/a View
CHALLENGER MT-Series MT 565 B AUTOPOWER IV Cat 3056E n/a n/a View
CHALLENGER MT-Series MT 565 B TECHSTAR CVT Cat 3056E n/a n/a View
CHALLENGER MT-Series MT 575 B AUTOPOWER 1V Sisu n/a n/a View
CHALLENGER MT-Series MT 575 B TECHSTAR CVT Sisu n/a n/a View
CLAAS CHALLENGER CHALLENGER 35 Cat. 3116 ATAAC 1997->2002 n/a View
CLAAS CHALLENGER CHALLENGER 45 Cat. 3116 ATAAC 1997->2002 n/a View
ECO LOG 1. 570 B Cat 3126B n/a n/a View
GANTNER HSW-Series HSW 130 Cummins n/a n/a View
LIUGONG ZL-Series ZL 40 B YC6108G n/a n/a View
MASSEY FERGUSON 1.. 6485 Sisu 66.ETA 2003-> n/a View
MASSEY FERGUSON 1.. 6490 Sisu 66.ETA 2003-> n/a View
MASSEY FERGUSON 1.. 6495 Sisu 66.ETA 2003-> n/a View
MASSEY FERGUSON 1.. 7485 Sisu 66ETA 2003-> n/a View
MASSEY FERGUSON 1.. 7490 Sisu 66.ETA 2003-> n/a View
MASSEY FERGUSON 1.. 7495 DYNA VT Sisu 66.ETA 2003-> n/a View
MASSEY FERGUSON 1.. 8210 Sisu n/a n/a View
MASSEY FERGUSON 1.. 8240 Sisu 620DS n/a n/a View
MASSEY FERGUSON 1.. 8250 Sisu n/a n/a View
MASSEY FERGUSON 1.. 8260 Sisu n/a n/a View
MASSEY FERGUSON MF-Series MF 6485 Sisu 66.ETA 5.03-> n/a View
MASSEY FERGUSON MF-Series MF 6490 Sisu 66.ETA 5.03-> n/a View
MASSEY FERGUSON MF-Series MF 6495 Sisu 66.ETA 5.03-> n/a View
MASSEY FERGUSON MF-Series MF 7485 Sisu 66.ETA 2.03-> n/a View
MASSEY FERGUSON MF-Series MF 7490 Sisu 66.ETA 2.03-> n/a View
MASSEY FERGUSON MF-Series MF 7495 Sisu 66.ETA 2.03-> n/a View
MASSEY FERGUSON MF-Series MF 8240 Valmet 620 DS 6.99-> Donaldson Air Housing View
MASSEY FERGUSON MF-Series MF 8250 634TCC 6.99-> Donaldson View
MASSEY FERGUSON MF-Series MF 8260 634 TCC 6.99-> n/a View
OM APOLLO-Series APOLLO TRACKS Cat 3126 n/a n/a View
PEGSON 1. 900/600 EUROTRAC Cat 3116 n/a n/a View
SKOGS JAN 1000-Series 1088 LTC Perkins n/a n/a View
SKOGS JAN 1000-Series 1088 XLC CATERPILLAR n/a n/a View
SKOGS JAN 400-Series 487 CAT CATERPILLAR 3126 n/a n/a View
SKOGS JAN 400-Series 495 CAT CATERPILLAR 3126 n/a n/a View
SKOGS JAN 600-Series 695 CAT CATERPILLAR 3126 n/a n/a View
SKOGSJAN 1. 1088 LTC Perkins n/a n/a View
SKOGSJAN 1. 1088 XLC Cat n/a n/a View
SKOGSJAN 1. 487 CAT Cat 3126 n/a n/a View
SKOGSJAN 1. 495 CAT Cat 3126 n/a n/a View
SKOGSJAN 1. 695 CAT Cat 3126 n/a n/a View
UNAC 1. 300 Cat n/a n/a View
UNAC U-Series U 774 Cat n/a n/a View
WIRTGEN W-Series W 1000 Cat n/a <-577 View
XCMG LW-Series LW 500 F Weichai Power WP10G220E21 n/a n/a View
