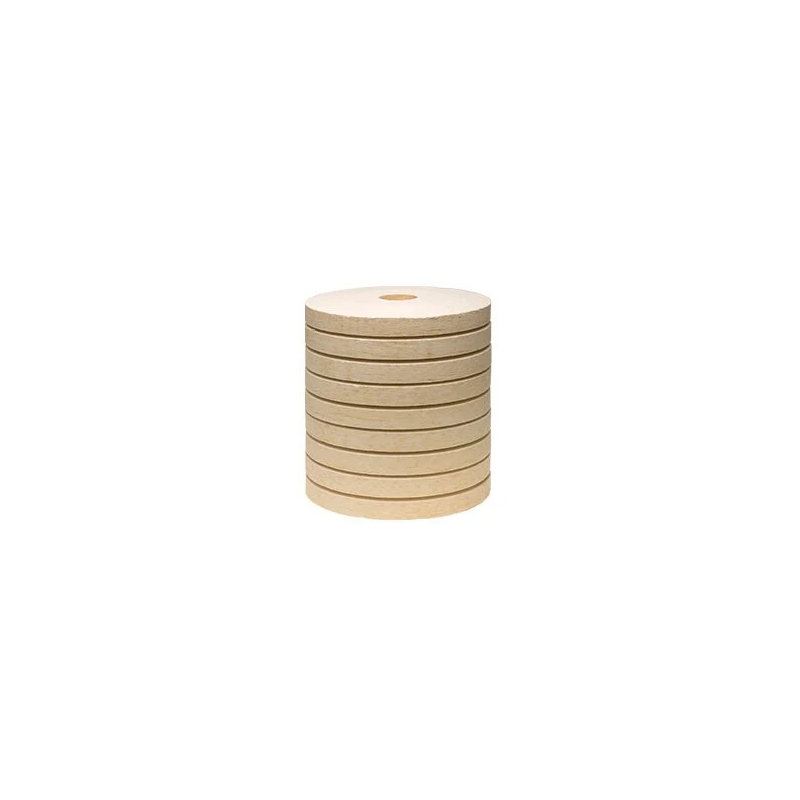

LO4R 27/27 CJC Filter Insert

The CJC™ LO4R 27/27 Filter Insert is engineered for continuous offline filtration of crankcase lubricating oil on medium-speed 4-stroke diesel engines running on residual fuels, making it an ideal choice for marine and industrial applications. It is compatible with various CJC® Marine Lube Oil Filters, including the Lube Oil Filter for 4-stroke engines and CJC® Marine Lube Oil Purifier models.

Designed for Diesel Engine Lube Oil

This insert is optimised for filtration of SAE 30 and SAE 40 lubricating oils, replacing the need for conventional centrifugal separators and significantly improving oil cleanliness and engine protection.

Filtration Performance

Contaminant Removal
The LO4R insert efficiently removes a wide range of contaminants from engine oil, including:

• Combustion residues and soot

• Wear particles

• Oil degradation products (varnish and sludge)

• Asphaltenes

• Water

By removing these contaminants, the LO4R helps slow oil degradation and supports longer oil and engine life.

High Dirt-Holding Capacity
Field experience shows that the LO4R insert offers a balanced dirt-holding capacity and high filtration efficiency, maintaining oil cleanliness below engine manufacturer recommendations and extending service intervals.

Water and Oxidation Handling

The cellulose-based bonded discs also absorb water and oxidation products, helping to keep oil dry and stable and reducing the risk of corrosion and wear.

Environmental and Construction Benefits

• Made from 100% natural cellulose fibres (no plastics or metals)

• Complies with DIN EN ISO 14001:2015 environmental standards

• Large filtration surface area for stable performance and long life

Product Compatibility

The LO4R 27/27 filter insert is designed for use with:

• CJC® Lube Oil Filter for 4-stroke diesels

• CJC® Marine Lube Oil Purifier 27

• CJC® Marine Lube Oil Purifier 427

Typical Dimensions

• Diameter: 27 cm (10.6 in)

• Height: 27 cm (10.6 in)
